5.6 Grade Carbon Steel Q235 Railway Sleeper Screws Spike HRC22 - HRC32

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: OEM
Minimum Order Quantity: 5000 pcs
Price: USD 0.3-1.0 / Pc
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 15-25 Days after placing formal order
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons / Month
Product: Carbon Steel Q235 Railway Coach Screw Spike Railroad Screw 5.6 Grade Material: Q235, 35K, 45#, 40Mn2, 20MnSi
Color: Black, White Or Yellow Grade: 4.6, 4.8, 5.6, 8.8, 10.9, 12.9, Etc
Appliaction: In Rail Sleeper To Fasten Rails Warranty: Two Years
High Light:

stainless steel coach screws

,

railway sleeper fixing screws

ZhongYue Carbon Steel Q235 Railway Coach Screw Spike Railroad Screw 5.6 Grade





1. Introduce:

Screw Spike is one of the most popular rigid rail fixation items and they are extensively used to tighten the rail track on to the wooden or concrete tie. Screw Shank Spikes are used for fixing of tie plates on to the wooden ties in pre-bored holes and with plastic inserts pre-cast in concrete sleepers. They are extensively used on high-speed tracks as fixation elements for tension clamps





2. Technical Details

Product Tensile Strength Yield Strength Elongation Reduction of Area Hardness
High Tensile Screw 120,000psi(min) 92,000psi(min) 14%(min) 35%(min) HRC22-HRC32





3. Standard:

AREMA, DIN571, Europe standard or other standard required by clients.

4. Specification:

Diameter from 12mm to 27mm, without lenth limited.

5. Grade:

ASTM A307, ASTM A325, Grade 4.6, 4.8, 5.6, 5.8, 8.8

6. Surface:

Black, zinc white, zinc yellow, hot dip galvanised, zinc infiltrated.

7. Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.



8. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

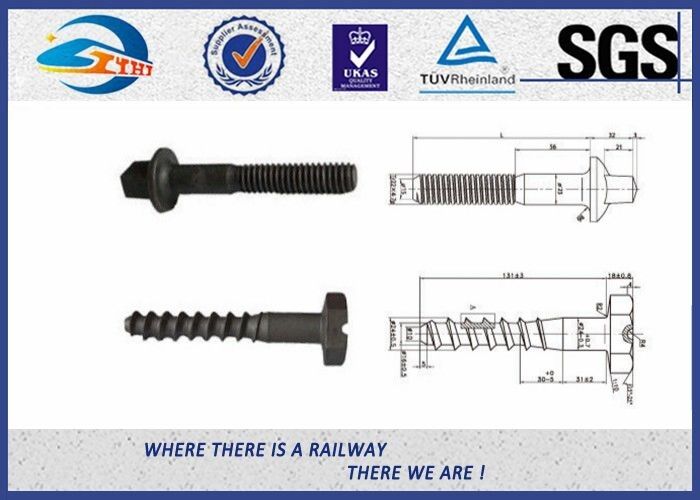

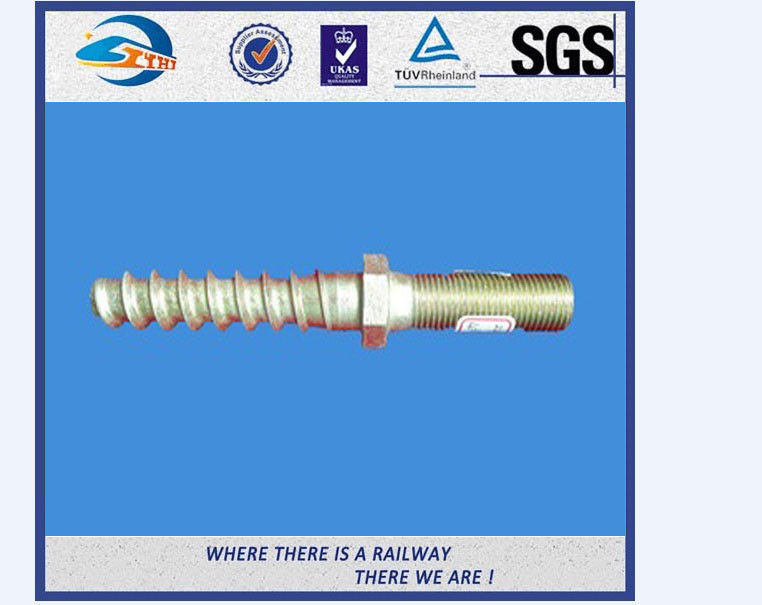

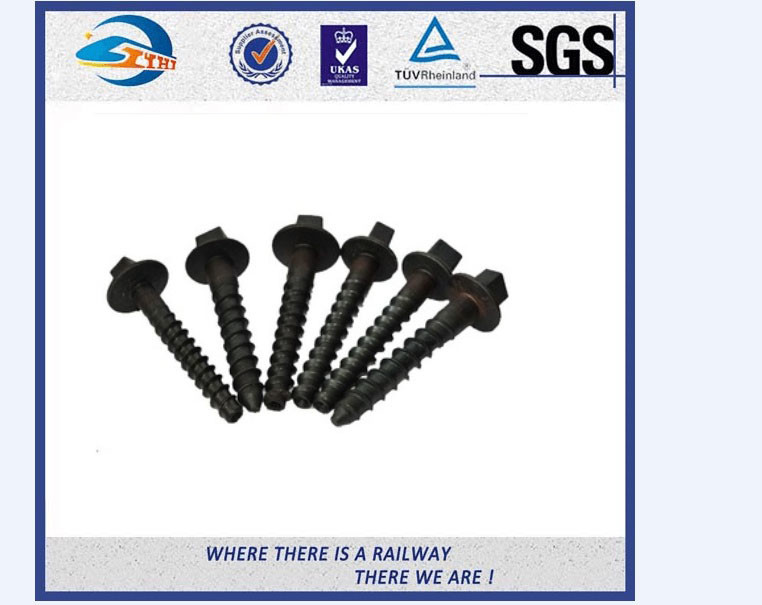

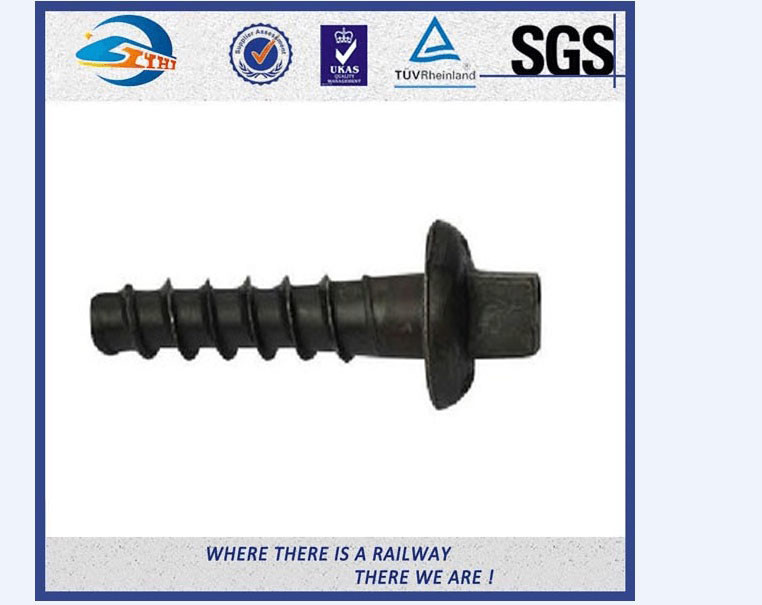

9. Photos for Reference



5.6 Grade Carbon Steel Q235 Railway Sleeper Screws Spike HRC22 - HRC32 05.6 Grade Carbon Steel Q235 Railway Sleeper Screws Spike HRC22 - HRC32 1
