Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength

China Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength supplier
Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength supplier Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength supplier Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength supplier Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength supplier

Large Image :  Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength

Product Details:

Place of Origin: Jiangsu
Brand Name: ZHONGYUE
Certification: ISO, SGS, TUV
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 5000pcs
Price: 0.59-0.99 USD/PC
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 working days after payment
Payment Terms: L/C, T/T
Supply Ability: 50,0000 PCS PER MONTH
Contact Now
Detailed Product Description
Grade: 4.6, 5.6, 8.8, 10.9 Material: Q235, 35#, 45#
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet, Sherardizing Standard Refers: ISO898-1, UIC864-1, And NF F500-50
Warranty: Two Years OEM: Available

Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength





1. Usage

Rail sleeper screw spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the rail sleeper screw is used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.



The screw spike costs more to manufacture than the dog spike or dog nail, but has the advantage of greater fixing power; approximately twice that of a dog spike, and can be used in combination with spring washers.





2. Specification:

Available Material 1. Stainless Steel: SS2, SS303, SS304, SS316, SS410, SS420
2. Steel: C45(K1045), C46(K1046), C20,etc.
3. Brass: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),
C27200CuZn37), C28000(CuZn40),etc.
4. Bronze: C51000, C52100, C54400, etc.
5. Iron: 1213, 12L14, 1215, etc.
6. Aluminum: Al6061, Al6063, etc.
7. Carbon steel: C1006,C1010,C1018,C1022,C1035K,C1045,12L14,etc.
8. Alloy steel: SCM435,10B21, C10B33,etc.
Material Class 4.8 6.0 8.8 12.9
Specification Various head style and sizes per your request
Surface Finishing Zn-Plated, Ni-plated, Tin-plated, Passivated, Sandblast and Anodize;
Chromate, Polish, Electro Painting, Black Anodize, Plain, Chrome plated;
Hot Deep Galvanize(H.D.G.) etc.
Heat Treatment Tempering, Hardening, Spheroidizing, Stress Relieving.
Standard ISO, DIN, GB, IFI, B.S. ART.
Sample We could make sample within 7 days free of charge
Lead time Per on furniture hardware order quantity
Packing Boxs or pallet or customer request
Payment terms
L/C,T/T





3. Our advantage:

Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.

We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.





4. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

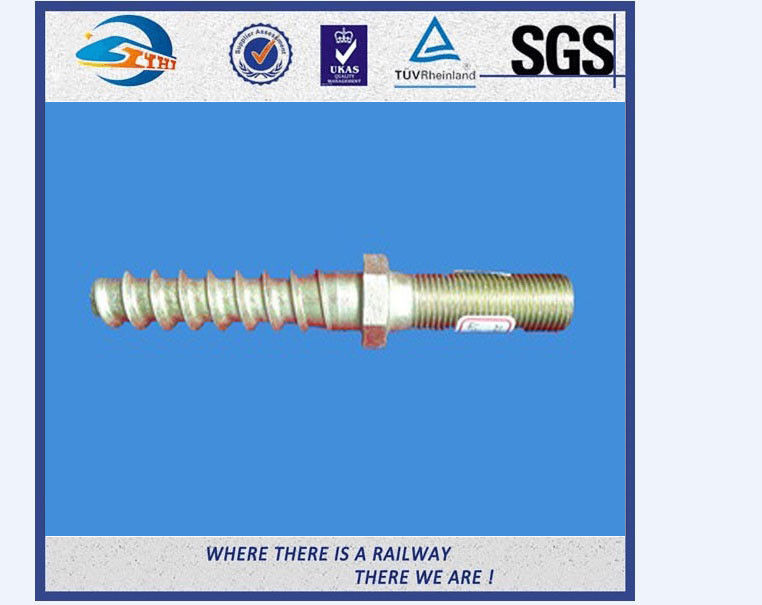

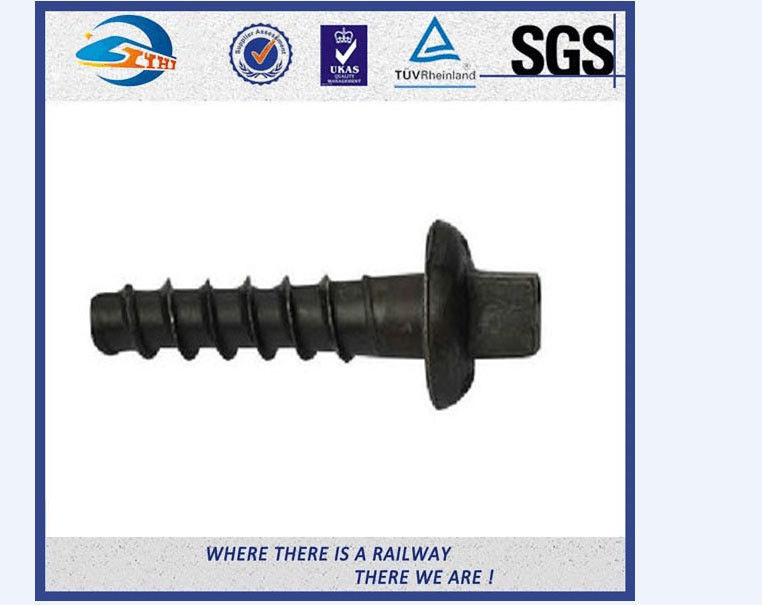

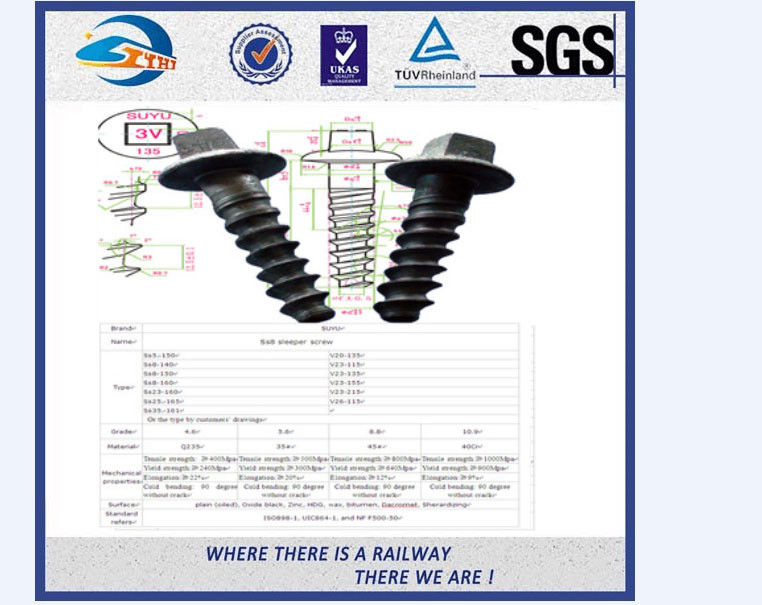

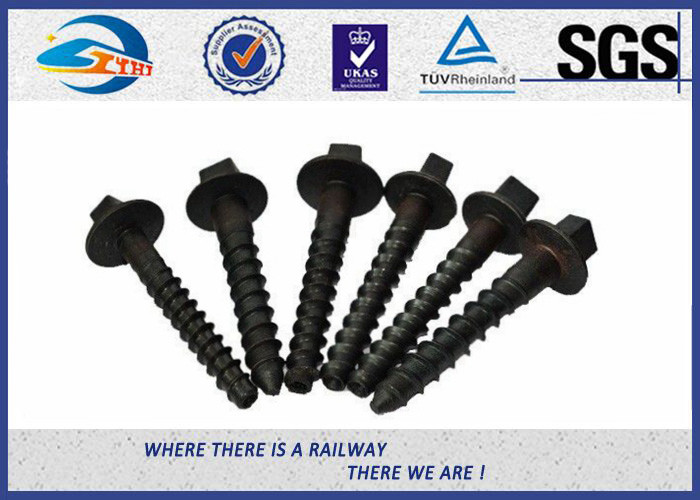

5. Photos for Reference:

Black Square Railway Wood Screw Spikes Sleeper Screws With High Yield StrengthBlack Square Railway Wood Screw Spikes Sleeper Screws With High Yield Strength
