UIC Standard Black Railway Groud Screw Spike For Fastening Rails

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: ISO9001:2008 SGS
Model Number: Ss Series
Minimum Order Quantity: 3 Tons
Price: USD 0.2-0.9 / Piece
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 25-35 days after placing the order
Payment Terms: L/C, T/T
Supply Ability: 1000 Tons / Month
Name: UIC Standard Black Railway Groud Screw Spike For Fastening Rails Material: Q235, 35K, 45#, 40Mn2, 20MnSi
Grade (Hardness After Quenching): 4.6, 4.8, 5.6, 8.8, 10.9, 12.9, Etc Warranty: Two Years
Application: For Fastening Rails Sample: Available
High Light:

railway sleeper fixing screws

,

black oxide screws

UIC Standard Black Railway Groud Screw Spike For Fastening Rails







1. Introduce:

A rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail base plate or rail. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.





2. Technical specification for reference:

Tensile

Strength

Yield

Strength

Elongation

Reduction

of area

Hardness Bend test Workmanship

120,000

psi min.

92,000

psi min.

14% min. 35% min. HRc 22 min.-HRc 32 max.

Full size carbon

steel screw spikes

shall stand being

 bent cold 45°

around a pin 3

times the spike's

diameter without

cracking on the

outside of the

bent portion

Screw spikes

shall be

free from burrs,

seams,

laps, loose scale,

irregular

surfaces, and

any defects

affecting their

serviceability







3. Dimension and weight:

Type

Dimension (mm)

Weight (Kg)

Ss5-150

M24×150

0.545

Ss8-140

M24×140

0.528

Ss8-150

M24×150

0.548

Ss8-160

M24×160

0.568

Ss23-160

M24×160

0.645

Ss25-165

M24×165

0.625

Ss35-161

M24×160

0.657







4. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

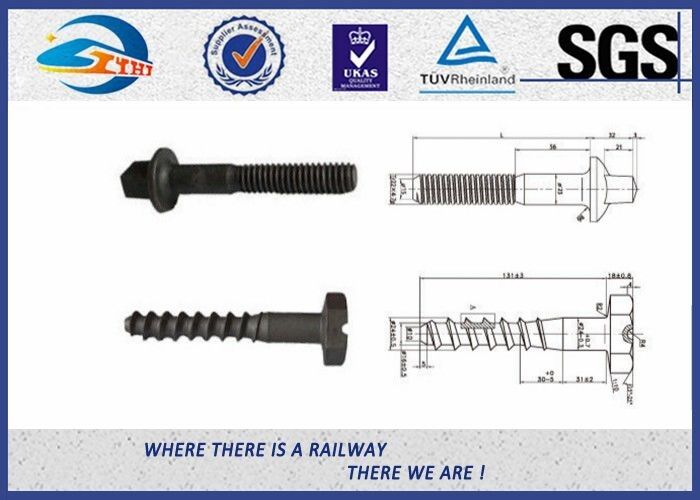

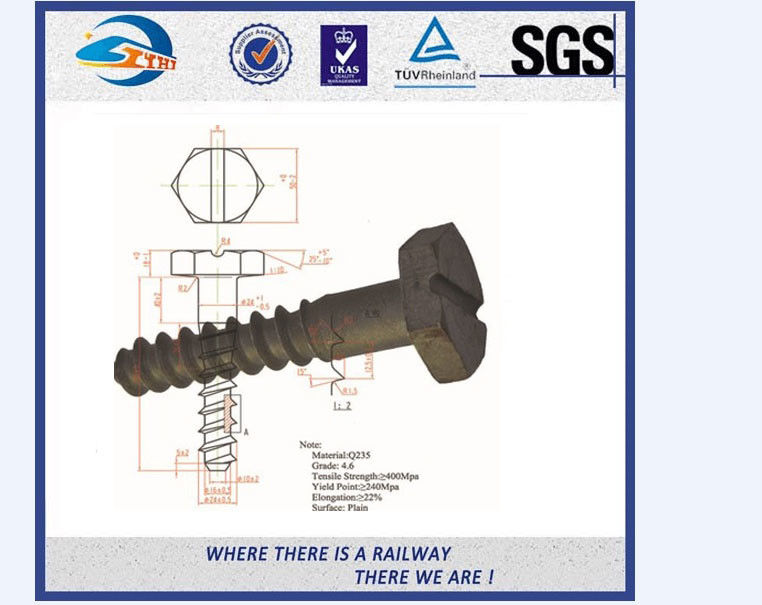

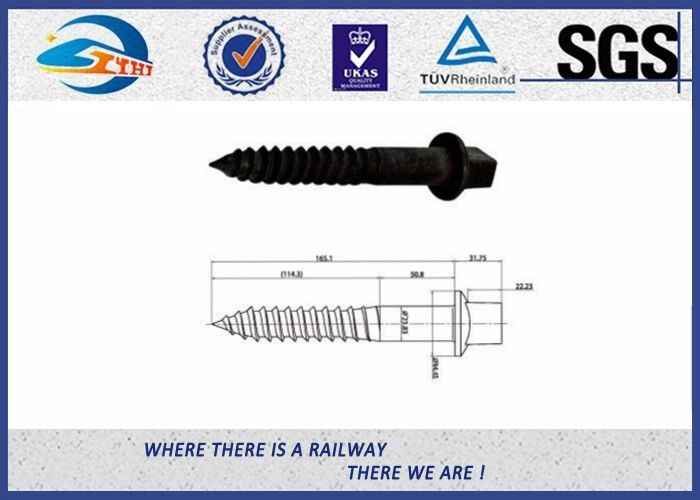

5. Photos:

UIC Standard Black Railway Groud Screw Spike For Fastening Rails 0UIC Standard Black Railway Groud Screw Spike For Fastening Rails 1
