ASTM Hot Dip Galvanized Railway Sleeper Screws Double End Screw Spike

Basic Information
Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: ASTM
Minimum Order Quantity: 5,000pcs
Price: USD0.4 to USD0.2
Packaging Details: 25kg Cartons or woven bags onwooden pallet , 36bags/pallets , 24pallets/container
Delivery Time: 10 to 30 days according to your order quantity
Payment Terms: L/C, T/T
Supply Ability: 10,000pcs per week
Name: ASTM Standard Hot Dip Galvanized Railway Double End Screw Spike Material: Q235, 35#, 45#, 40Cr
Sample: Available Customization: Acceptable
Surface Treatment: HDG, Oil, Oxide Black, Wax Grade: 4.6, 4.8, 5.6, 8.8
Standard: ISO898-1, UIC864-1, And NF F500-50 Warranty: Two Years
High Light:

stainless steel coach screws

,

black oxide screws

ASTM Standard Hot Dip Galvanized Railway Double End Screw Spike / Rail Road Spikes




1. Introduce:

A rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail base plate or rail. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.





2. Specification



Name

ASTM Standard Hot Dip Galvanized Railway Screw Spike Insert Sleeper Railway Screw

Type

Ss5.-150

V20-135



Ss8-140

V23-115



Ss8-150

V23-135



Ss8-160

V23-155



Ss23-160

V23-215



Ss25.-165

V26-115



Ss35.-161





 Or the type by customers’ drawings

Grade

4.6

5.6

8.8

10.9

Material

Q235

35#

45#

40Cr

Mechanical properties

Tensile strength:
≥400Mpa

Tensile strength:
≥500Mpa

Tensile strength:
≥800Mpa

Tensile strength:
≥1000Mpa



Yield strength:≥240Mpa

Yield strength:≥300Mpa

Yield strength:≥640Mpa

Yield strength:
≥900Mpa



Elongation:≥22%

Elongation:≥20%

Elongation:≥12%

Elongation:≥9%



Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Surface

plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard refers

ISO898-1, UIC864-1, and NF F500-50





3. Advantage:

Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.

We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.





4. Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC







5. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

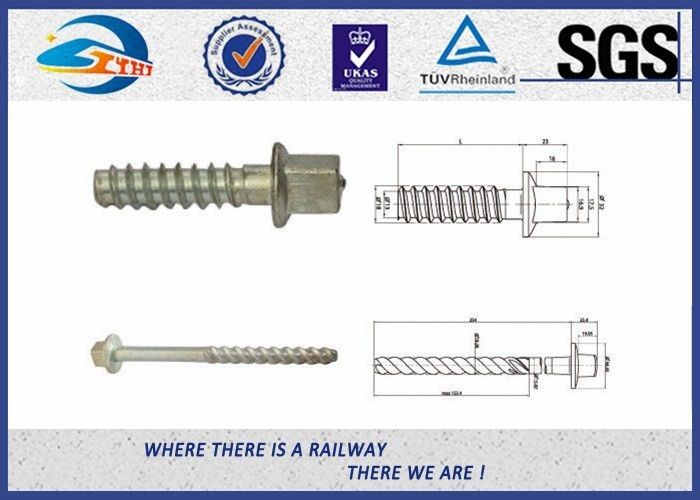

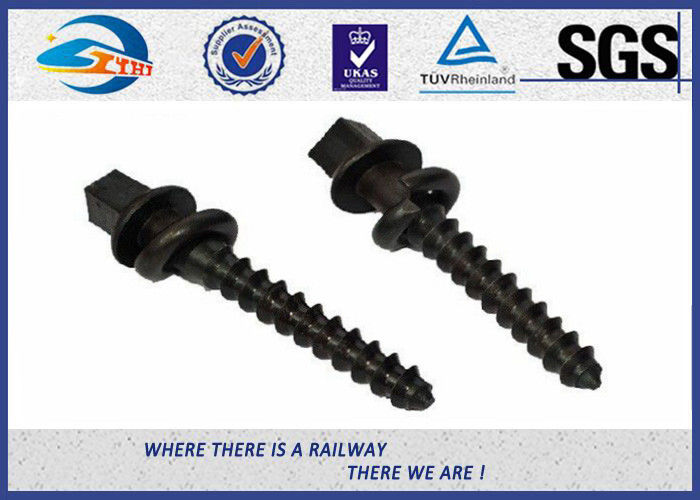

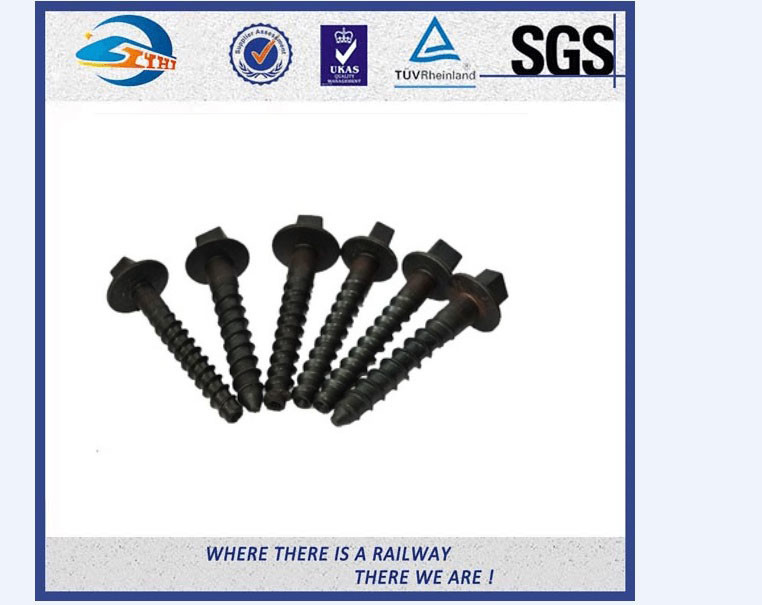

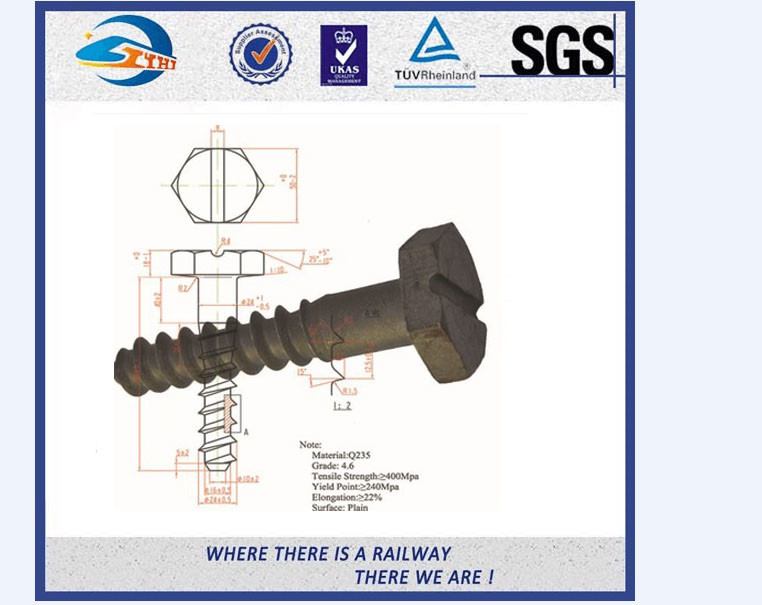

6. Photos for Reference
ASTM Hot Dip Galvanized Railway Sleeper Screws Double End Screw Spike 0ASTM Hot Dip Galvanized Railway Sleeper Screws Double End Screw Spike 1
