High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard

China High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard supplier
High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard supplier High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard supplier High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard supplier High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard supplier

Large Image :  High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard

Product Details:

Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: DIN

Payment & Shipping Terms:

Minimum Order Quantity: 5,000pcs
Price: USD0.4 to USD0.2
Packaging Details: 25kg Cartons or woven bags onwooden pallet , 36bags/pallets , 24pallets/container
Delivery Time: 10 to 30 days according to your order quantity
Payment Terms: L/C, T/T
Supply Ability: 10,000pcs per week
Contact Now
Detailed Product Description
Name: Oxide Black 8.8 Grade Railroad Screw Spikes DIN Standard High Hardness Material: Q235, 35#, 45#
Sample: Available Customization: Acceptable
Surface Treatment: HDG, Oil, Oxide Black, Wax Grade: 4.6, 4.8, 5.6, 8.8
Standard: ISO898-1, UIC864-1, And NF F500-50

ZhongYue Oxide Black 8.8 Grade Railroad Screw Spikes DIN Standard High Hardness







1. Introduce:
Screw Spike is one of the most popular rigid rail fixation items and they are extensively used to tighten the rail track on to the wooden or concrete tie. Screw Shank Spikes are used for fixing of tie plates on to the wooden ties in pre-bored holes and with plastic inserts pre-cast in concrete sleepers. They are extensively used on high-speed tracks as fixation elements for tension clamps.





2. Specification:

Name

Oxide Black 8.8 Grade DIN Standard Railway Screw Spike High Hardness

Type

Ss5.-150

V20-135



Ss8-140

V23-115



Ss8-150

V23-135



Ss8-160

V23-155



Ss23-160

V23-215



Ss25.-165

V26-115



Ss35.-161





 Or the type by customers’ drawings

Grade

4.6

5.6

8.8

10.9

Material

Q235

35#

45#

40Cr

Mechanical properties

Tensile strength:
≥400Mpa

Tensile strength:
≥500Mpa

Tensile strength:
≥800Mpa

Tensile strength:
≥1000Mpa



Yield strength:≥240Mpa

Yield strength:≥300Mpa

Yield strength:
≥640Mpa

Yield strength:
≥900Mpa



Elongation:≥22%

Elongation:≥20%

Elongation:≥12%

Elongation:≥9%



Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Surface

plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard refers

ISO898-1, UIC864-1, and NF F500-50








3. Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.





4. Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





5. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

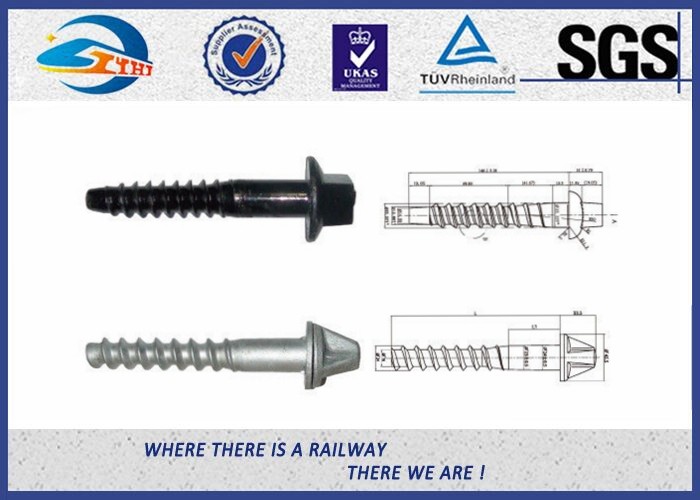

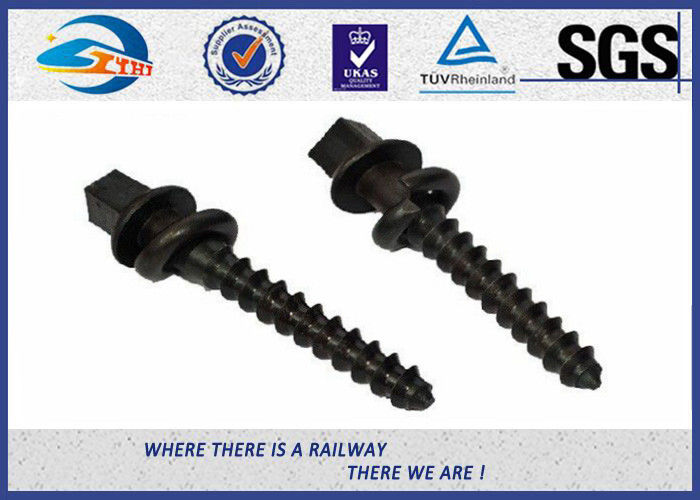

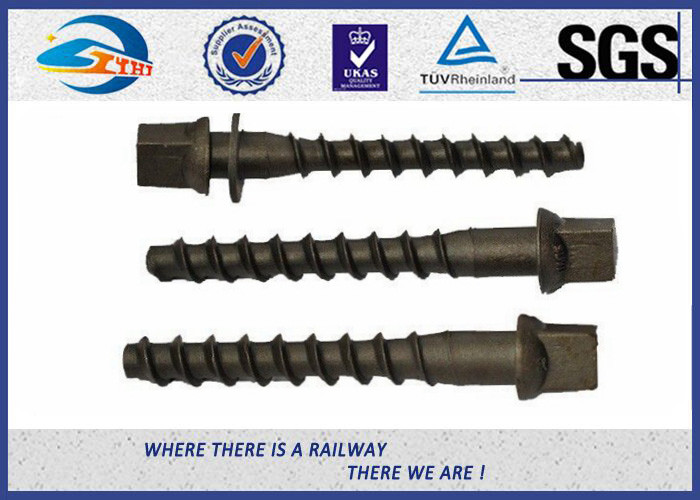

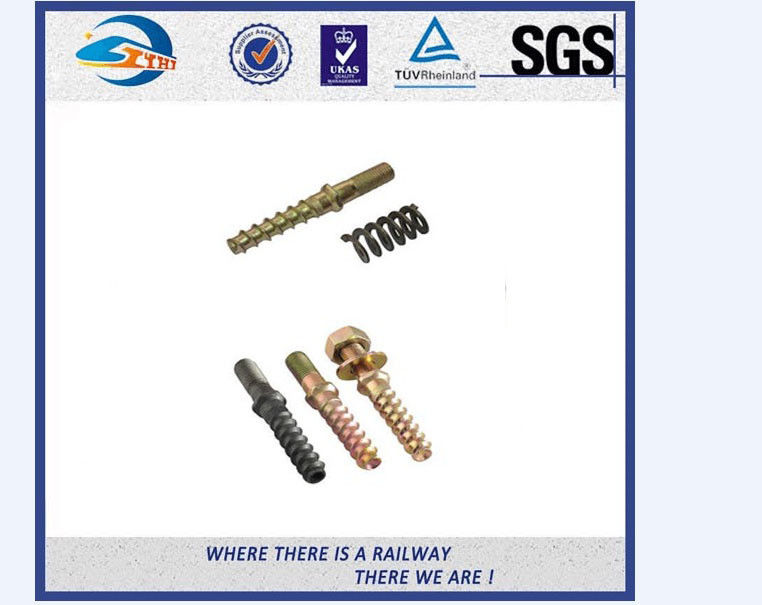

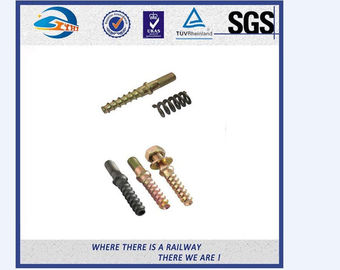

6. Photos for Reference

High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard

High Hardness Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard
