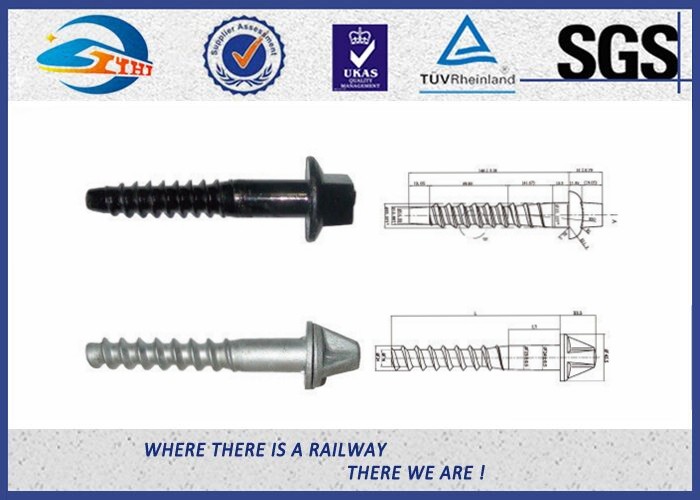

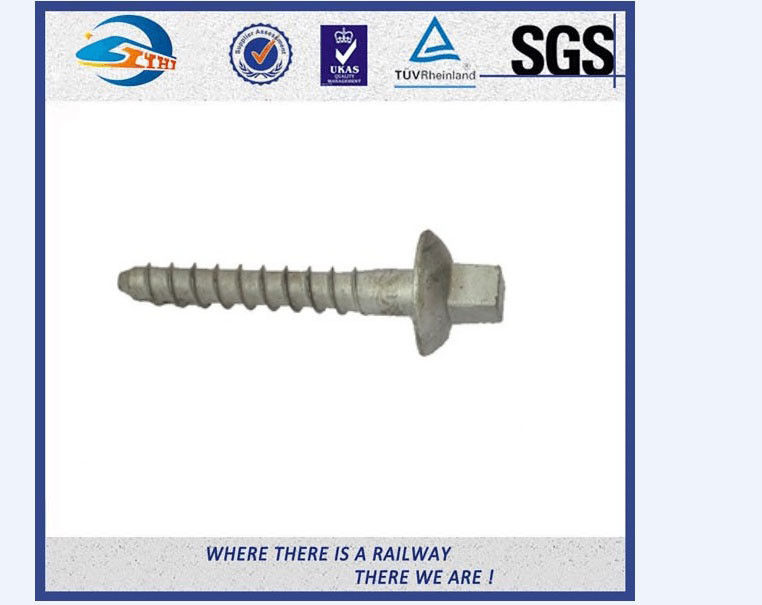

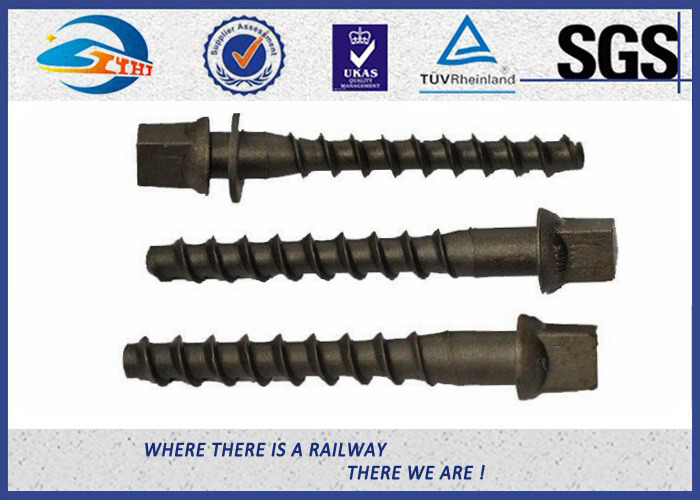

ZhongYue Black Painting Railway Spikes Q235 For Rail Sleeper / Train

China ZhongYue Black Painting Railway Spikes Q235 For Rail Sleeper / Train supplier
ZhongYue Black Painting Railway Spikes Q235 For Rail Sleeper / Train supplier ZhongYue Black Painting Railway Spikes Q235 For Rail Sleeper / Train supplier ZhongYue Black Painting Railway Spikes Q235 For Rail Sleeper / Train supplier ZhongYue Black Painting Railway Spikes Q235 For Rail Sleeper / Train supplier

Large Image :  ZhongYue Black Painting Railway Spikes Q235 For Rail Sleeper / Train

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 5000pcs
Price: negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 500,000set per month
Contact Now
Detailed Product Description
Product Name: Railway Spikes Q235 Material For Rail Sleeper And Train Grade: 4.6, 5.6, 8.8, 10.9
Material: Q235, 35#, 45#, 40Cr Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Standard: ISO898-1, UIC864-1, And NF F500-50 Sample: Available
Warranty: Two Years


ZhongYue Railway Spikes Q235 Material For Rail Sleeper and train







1. Introduce:

A rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail base plate or rail. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.


2. Other Main Types:

1. We produce the rail sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available.
Diameter: 3/4", 7/8", 15/16"
Length: 5-1/2", 6", 7", 8", 10"
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


2. Rail sleeper screw spikes with big disk are mostly used in South America and Africa
A taper of 1mm in the core and thread diameters towards to the point of the screw over the portion shown parallel is allowed, provided the tolerance on the diameter at the upper end is not exceeded. The material for the rail sleeper screw is complying with British standard N 15-1961.
Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


3. Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

Type

Dimension(mm)

Weight (Kg)

V20-135

M20×135

0.438

V23-115

M23×115

0.48

V23-135

M23×135

0.55

V23-155

M23×155

0.62

V23-215

M23×215

0.78

V26-115

M26×115

0.55


4. Screw spike for wooden sleeper (high tension screw spike)
Size: 15/16×6-1/2
Surface Treatment: Plain (waxed), Black painting
MOQ: 5000PCS
Packing: 38PCS in 50LB plastic keg



Tensile Strength

Yield Strength

Elongation

Reduction of Area

Hardness

120,000psi(min)

92,000psi(min)

14%(min)

35%(min)

HRC22-HRC32

Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the spike's diameter without crack on the outside of the bent portion.
Material: 45#, heat treatment


5. Coach screw is used for the mining industry in South Africa
Diameter: 18mm
Length: 65mm and 75mm
Material: Q195 and Q235
Surface Treatment: Zinc
Grade: 4.6
MOQ: 50,000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


6. DHS35 rail sleeper screw spike, supports the use of the SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


7. Rail sleeper screw spike with round thread, according to the standard NF-F 50014
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement

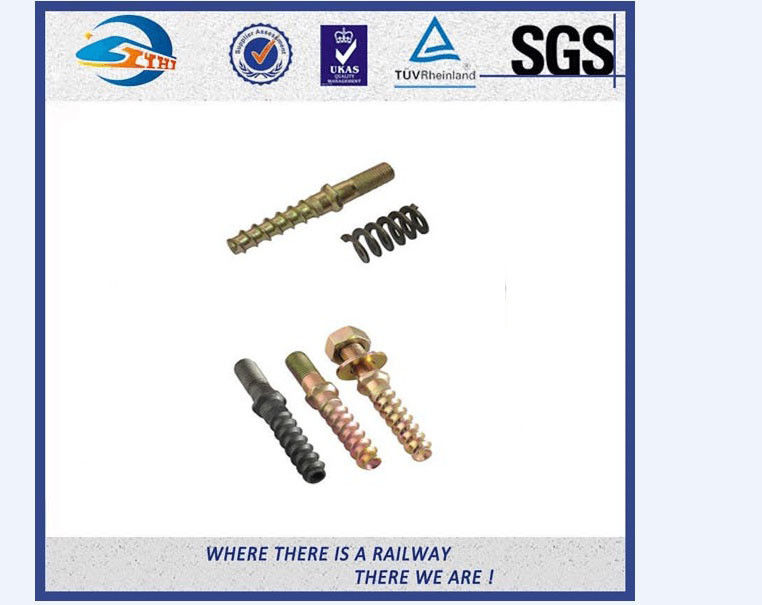

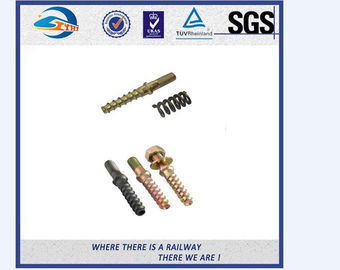

8. Rail sleeper screw spike with two ends, fixes the rail together with the Nabla clip system. This spike is very popular in Africa. We use special material TD16 to produce the sleeper screw to meet with the bending test, bending 30 degree and straightening it, without crack.
Size: 23×174
Grade: 5.6
Material: TD16
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement


9. Timber drive spikes can reduce installation and maintenance costs. The spikes are used for timber construction highway crossing planks and panels, bridge and trestle guard rails, motor car set-off, docks, etc. The washer head is single forged and the excellent holding power of threads provides tight installation. The spikes are easily installed, driven with a maul or pneumatic spike driver. They cannot be overdriven and are easily removed for reuse with a hand or power tool. The drive spikes are available for a wide variety of installations and maintenance of way, and meet with the standard ASTMA66-87, cold bending 90 degree without crack.
Main Size: 5/8×10 and 7/8×7
Grade: 5.6
Material: 35#
Surface Treatment: Zinc or according to clients' requirement
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement

Tensile Strength

Yield Strength

Elongation 2"

414Mpa

207Mpa

>18%


10. Screw spike with slotting head, as per UIC864-1
Size: 24×131 and 24×150
Grade: 4.6
Material: Q235
Surface Treatment: Plain, Black painting or according to clients' requirement
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets
