Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571

China Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571 supplier
Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571 supplier Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571 supplier Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571 supplier Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571 supplier Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571 supplier

Large Image :  Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Zhongyue
Certification: ISO, SGS, TUV
Model Number: zhongyue1

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: USD0.3-5/PC
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 working days after payment
Supply Ability: 50,0000 PCS PER MONTH
Contact Now
Detailed Product Description
Name: Black Oxide Railway SGS Screw Spike For Railway Sleeper Sample: Available
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Material: 35#, 45#, Q235, 40Cr Etc
Grade: 4.6, 4.8, 4.8, 8.8, 10.9 Etc Standard: ISO898-1, UIC864-1, And NF F500-50

ZhongYue Black Oxide Railway SGS Screw Spike for Railway Sleeper







1. Introduce:

A rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail base plate or rail. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.





2. Technical Details

Product Tensile Strength Yield Strength Elongation Reduction of Area Hardness
High Tensile Screw 120,000psi(min) 92,000psi(min) 14%(min) 35%(min) HRC22-HRC32





3. Standard:

AREMA, DIN571, Europe standard or other standard required by clients.



4. Specification:

Diameter from 12mm to 27mm, without lenth limited.



5. Grade:

ASTM A307, ASTM A325, Grade 4.6, 4.8, 5.6, 5.8, 8.8



6. Surface:

Black, zinc white, zinc yellow, hot dip galvanised, zinc infiltrated.



7. Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.



8. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

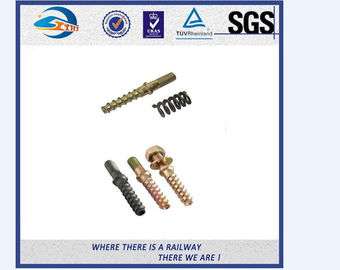

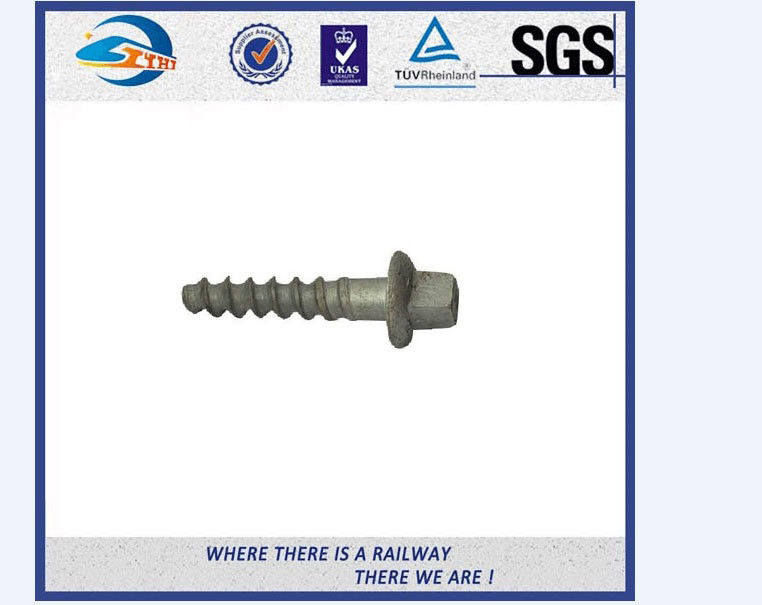

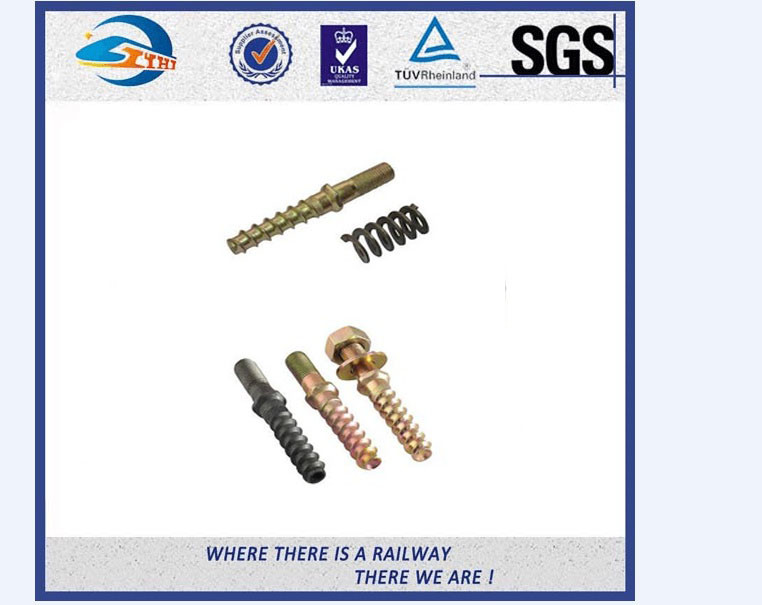

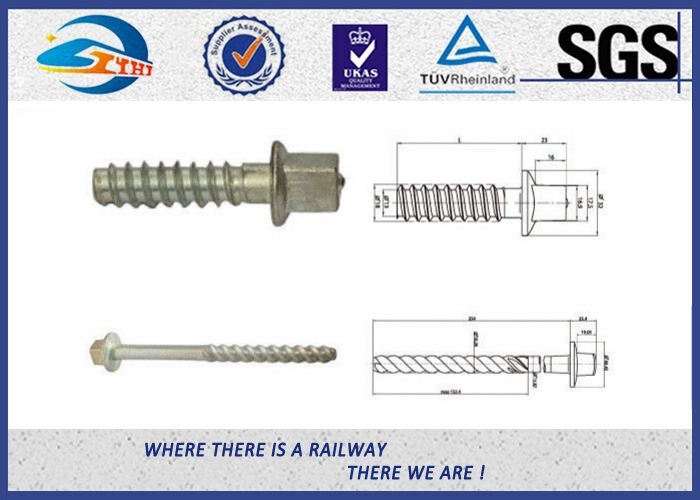

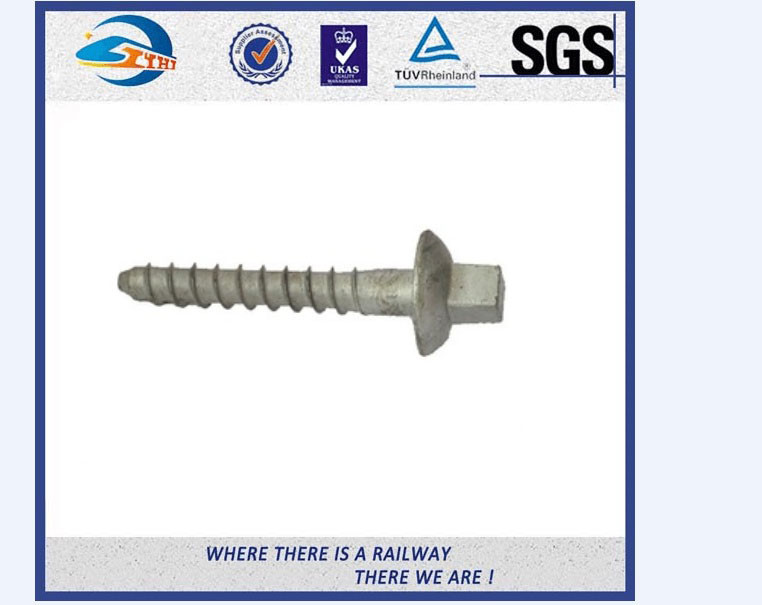

9. Photos for Reference



Black Oxide Railway Sleeper Screws / Rail Screw Spike AREMA / DIN571
