16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part

China 16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part supplier
16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part supplier 16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part supplier 16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part supplier 16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part supplier 16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part supplier

Large Image :  16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: Track Spike

Payment & Shipping Terms:

Minimum Order Quantity: 5000pcs
Price: negotiation
Packaging Details: 200LB kegs and wooden pallets or according to clients' requirement
Delivery Time: 10 working days after received your payment
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Material: Q235(main) Dimensions: According To Drawings
Application: Fastening Part Main Surface Treatment: Plain(oiled); Black Oxide
Business Type: Manufacturer In China Sample: Be Available
Type: Concrete Nail Standard: ISO

         16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part



Specifications:

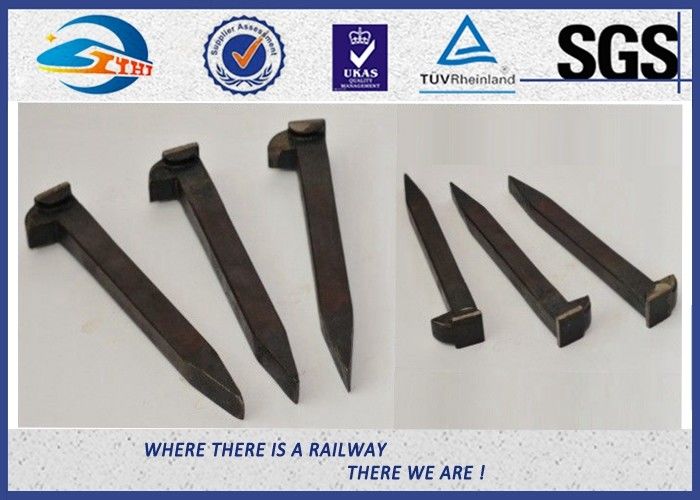

A rail spike is a large nail with an offset head that is used to secure rails and base plates to the sleepers

in track.

The rail spikes are roughly chisel-shaped with a flat-edged point. The spike is driven into the sleeper with the

edge against the grain, which gives greater resistance to loosening. The main function of the rail spike

is to keep

the rail in gauge. Rail dog spikes provide a strong, simple and inexpensive solution to securing rail track.



The method of manufacture ensures that the rail spike head and shank remain one solid piece of metal

 with no

joins or welds.



Applications


The rail spike ranges in use in many countries from coal and gold mines to sugar plantations, peat works

, garden

 festivals and leisure parks, as well as in some heavy rail applications.

Our rail spike or dog spikes are manufactured in accordance with a number of international standards

such as

GB, AREMA or ASTM, BS, UIC material, in either carbon or stainless steel.

Dog spikes are available in varying sizes to suit most applications. ZY can supply a range of popular

 rail spikes

, at economical prices, including the typical examples shown below:



This rail spike is manufactured according to ARMEA specifications.
Size: 3/4", 1/2", 5/8"
16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part

Length: 3", 3-1/2", 4-1/2", 5", 5-1/2", 6"
Material: Q235
Surface: Plain
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement



This is a track spike with high tensile grade of the AREMA specification. The material is the

 medium carbon

 steel; the chemical composition and mechanical properties should be as follows:

 16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part

C

Mn

Si

P

S

0.17 - 0.25%

0.9 - 1.35%

0.35 Max

0.04% Max

0.05 Max



Tensile Strength

Yield Point

Elongation (in 2" length sample)

70,000 psi Min

46,000 psi Min

25% Min

Material: 45#
Surface: Plain
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement



Boat spikes are also available in our factory

16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part
Size: 3/8", 1/2"
Length: 6", 8", 10", 12"
Material: Q235
Surface: HDG, black painting, plain (oiled)
MOQ: 5000PCS
Packing: 200LB kegs and wooden pallets or according to clients' requirement



These rail spikes are used for BS80LBS, 75LBS and 90LBS rails. The size ranges from 3-1/2" x 3/8",

2-3/4" x 1/2", 3-1/2" x 1/2", and 4-1/2" x 9/16" dog-eared spoonhead, and sheared patterns.

16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part

In addition to our normal products, their shape and dimension can be produced and designed

according to the

specification of our customers. Their size can be 12mm, 13mm, and 16mm, and the length can be

adjusted to

client requirement.

Material: Q235
Surface: Plain
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

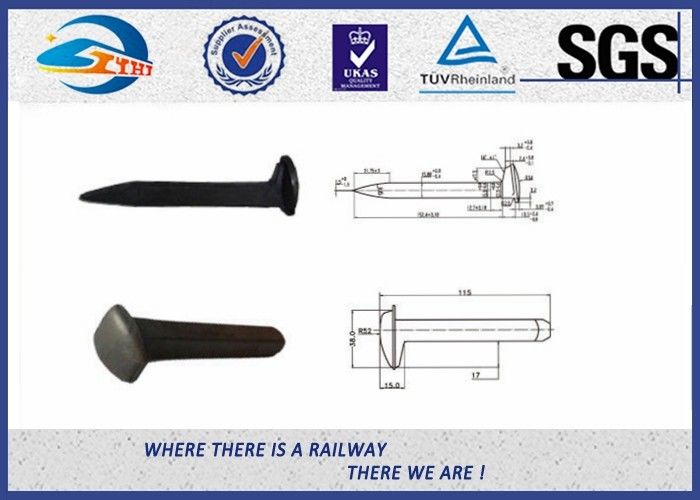

Dog spike with square shank as per AS1085.8 and round shank for the Australian market

16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part
Size: 16mm, 19mm and 22mm
Length: 150mm, 170mm
Material: Q235
Surface: Plain
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

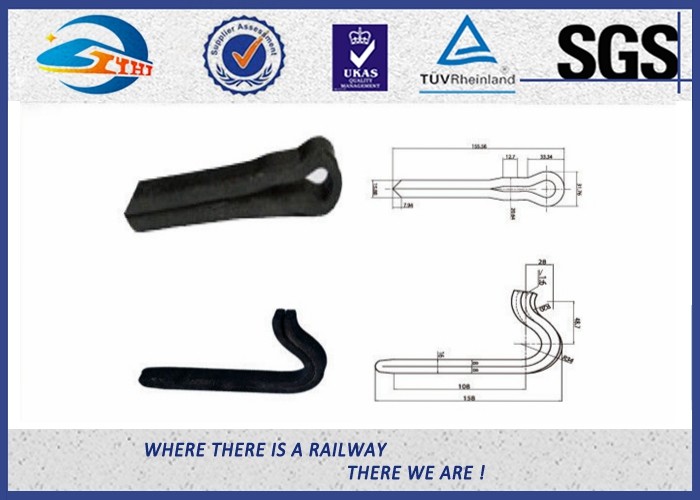

We can also produce the lock spike in many sizes according to our customers' requirement. The lock spike is used to fix elastic fastening base plates on a wooden sleeper. We offer lock spikes made with top quality, making them sturdy and efficient in functioning. We manufacture our lock spikes with superior quality raw substances which ensure their durability for a long run and we are considered the most trusted exporter.Sticking to our quality first policy, ZY pays great attention to quality control

16*16 Nail Railroad Track Spikes Rail Road Spikes Fastening Part

management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail spike products are of high quality and up to customers' requirements.

As a leading manufacturer of rail fastening based in China, ZY also produces many other railway fasteners, such as track bolt, sleeper screw, rail anchor, rail joint bar, tie plate, rail clip, elastic rail clip, SKL tension clamp,rail shoulder, and so on.
