E Type Rail Clips Color Painting Rail Fastening System Customized

China E Type Rail Clips Color Painting Rail Fastening System Customized supplier
E Type Rail Clips Color Painting Rail Fastening System Customized supplier E Type Rail Clips Color Painting Rail Fastening System Customized supplier E Type Rail Clips Color Painting Rail Fastening System Customized supplier E Type Rail Clips Color Painting Rail Fastening System Customized supplier

Large Image :  E Type Rail Clips Color Painting Rail Fastening System Customized

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: E Type Rail Fastening System

Payment & Shipping Terms:

Minimum Order Quantity: 5000set
Price: negotiation
Packaging Details: according to clients' requirement
Delivery Time: 10 working days after received your payment
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Material: Q235(main) 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7 Application: Fastening Part
Certification: ISO9001:2008 Main Surface Treatment: Plain (oiled), Oxide Black, Color Painting
Standard Refers: DIN17221, BS970, GB/T1222 Name: E Type Rail Clips Color Painting Rail Fastening System Customized

E Type Rail Clips Color Painting Rail Fastening System Customized

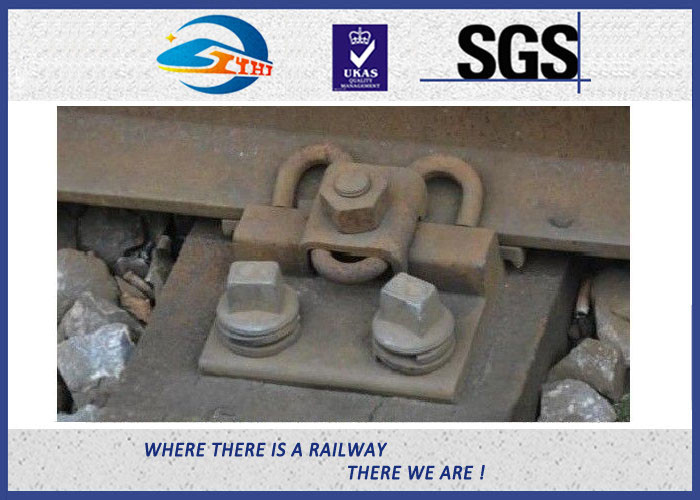

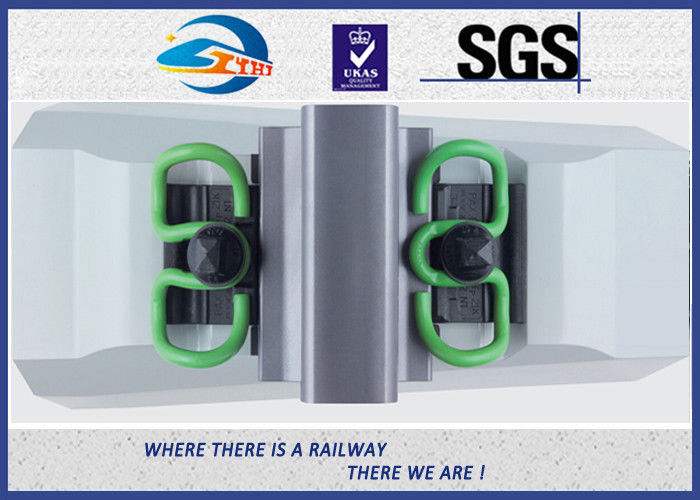

SKL fastening system
Meet all the requirements of Tram line. Top-down construction method is available, so sleepers are no needed. It can be used in general line, also in turnout area. It is feasible in open track, also in embedded track. Easy installation, Gauge adjustment +/-10mm, height regulation +20mm. The static stiffness is no less than 30KN/mm, different stiffness of rail pad can be provided according the requirements of customers.

Product Feature
The demand for fast clip rail fastening system is growing faster than other railroad fastener in the industry.
It is generally pre-assembled in the factory of sleeper manufacturer. The high-safety rail fastener is a
switch on-switch off system developed to meet the growing demand on fast clip rail fastening system.
Our fast clip rail fastener is capable of satisfying user requirement on rapid installation, low installation
cost, and low maintenance cost.

Both the clips and the toe insulators are installed at the parked position, where the side post insulators
and pads are mechanically held in place. All the components are transported to the site. The installation
of the fast clip rail fastening system is quite easy and can be conducted in different ways. The wide
applications make this product quite popular.

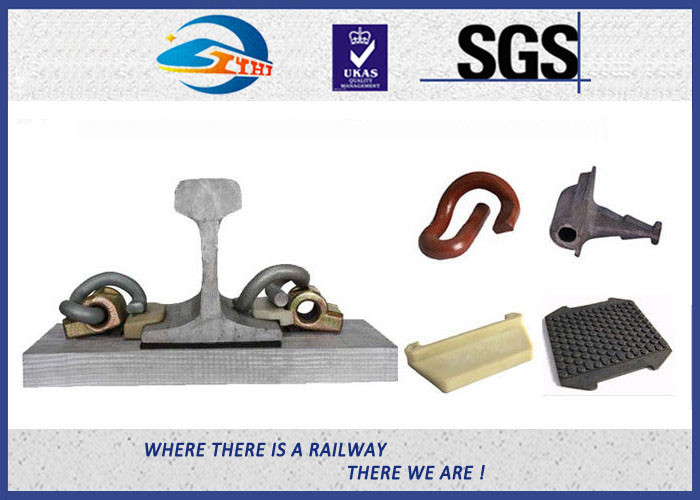

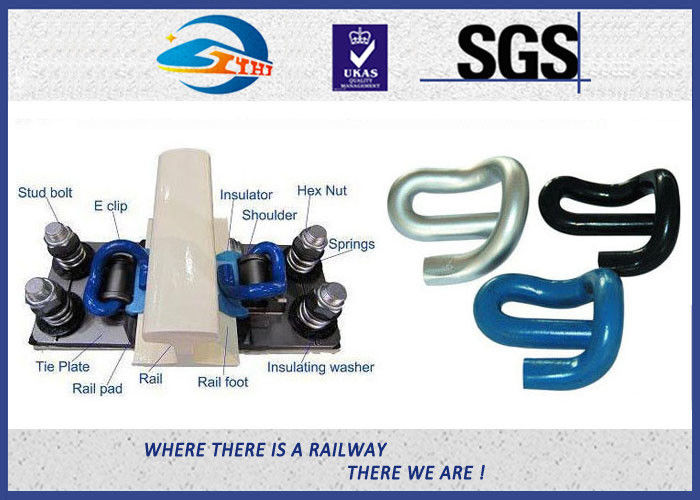

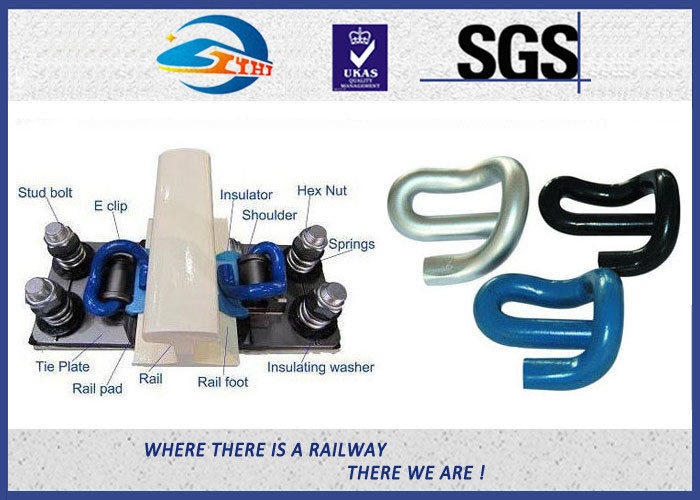

Technical Parameters

Part name

Type

Material

Finish

Remark

E clip

Dia. 16mm

Dia. 18mm

Dia. 20mm

60Si2MnA,

60Si2CrA,55SiMn

Plain oiled,

color painting,

or the other

custom finish

Hardness: 44-48HRC
Toe Load: 500-700kgf for Dia.16mm
750-900kgf for Dia.18mm
1100-1400kgf for Dia.20mm
Fatigue life:3 millions cycles

without breaking for Dia.18mm,

5 millions cycles without breaking

for Dia.20mm
Standard: DIN17221, BS970,

GB/T1222

Shoulder

UIC54,UIC60,

115RE,50kg rail,

60kg rail,BS80lbs,

BS100lbs

QT500-7

QT450-10

Plain oiled,

color painting

Different designs are available.

Rail pad

UIC54,UIC60,

BS80lbs,BS100lbs,

in ordered size

HDPE, EVA,

or rubber

Black or other colors

Different designs are available.

Insulator

UIC54,UIC60,

50kg rail, 60kg rail,

BS80lbs,BS100lbs,

and size as ordered

Reinforced

Nylon 66 (PA66)

Black, blue,

yellow, green

or other colors

Different designs are available.





E Type Rail Clips Color Painting Rail Fastening System CustomizedE Type Rail Clips Color Painting Rail Fastening System Customized
