4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate

China 4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate supplier
4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate supplier 4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate supplier 4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate supplier 4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate supplier

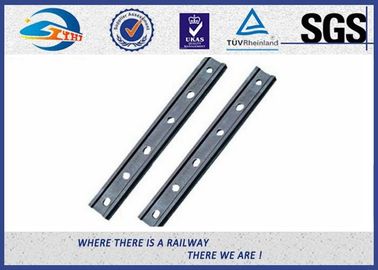

Large Image :  4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: Railway Fish Plate

Payment & Shipping Terms:

Minimum Order Quantity: 5000pcs
Price: negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 10 working days after received your payment
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Product Name: Fish Plate Application: Railway
Type: 115RE, 132-136RE, UIC54, UIC60, 50Kg, Etc. Material: 45#, 50#
Length: 4 Hole, 6 Hole Standard: BS, ASTM And DIN, Among Others.
Package: In Bundle

4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate

Specifications:

We deal in all types of fish plate, also known as joint bar, splice bar and angle bar. We have in-house rolling,

forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the

capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54,

U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates

are manufactured to international standards according to BS, ASTM and DIN, among others.





Normal Fish Plate
We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A,

80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.



Joggled Fish Plate


This product is a specially forged fish plate. It is suitable for the temporary repair of cracked welded rail

joints with clamp assembly to suit various rail sections. Used as an emergency clamp, joggled fish plate

enables quick and temporary repair, allowing continued movements through the section at a reduced line

 speed. They are readily available in a considerable quantity at all times.



Combination/Compromise Fish Plates


We produce specially designed fish plates to join two different rail sections of rail tracks for various

customers when they require them.

Type

Length/Diameter

Weight(Kg)

115RE

4 hole- 24 ″

17.04

115RE

6 hole -36 ″

25.56

132-136RE

4hole-24 ″

17.75

132-136RE

6hole-36 ″

26.63

UIC60

4 hole - 630/ ¢ 26

18.07

UIC60

4 hole-600/ ¢ 28

17.47

UIC60

4 hole - 630/ ¢ 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / ¢ 26

13.23

BS90A

792.9/ ¢ 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71



4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate

4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate



4 Hole Or 6 Hole Railway Fish Plate Fishplate Railroad Fish Plate
