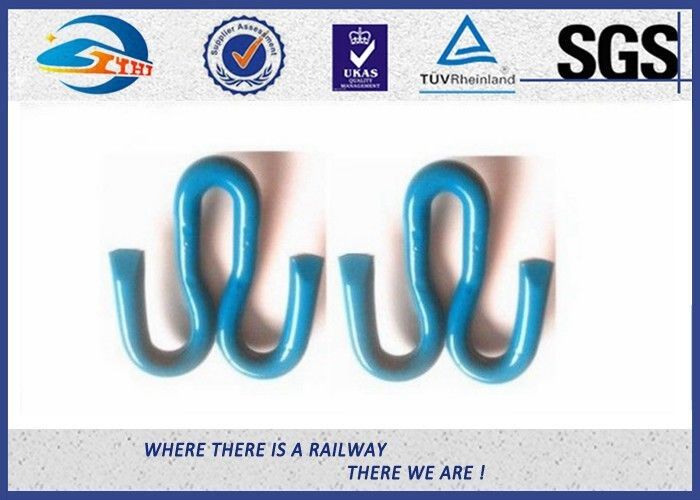

Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway

China Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway supplier
Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway supplier Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway supplier

Large Image :  Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: Fast Clip

Payment & Shipping Terms:

Minimum Order Quantity: 5000 set
Price: negotiation
Packaging Details: according to clients' requirement
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 500,000set per month
Contact Now
Detailed Product Description
Product Name: Fast Clip Application: Track
Similarity: E Type, Nabla Type, SKL Type, KP Type, Etc. Sample: Available
New/Used: New

Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway



Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway

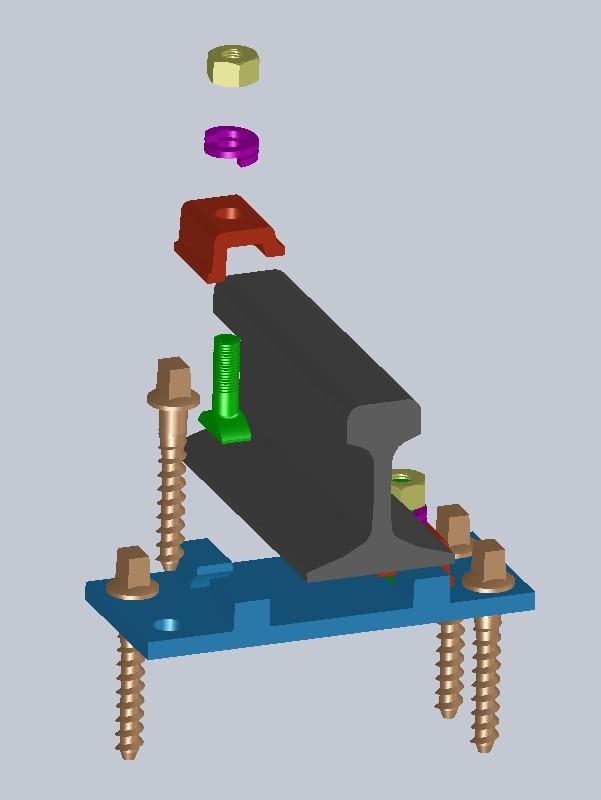

One set of fast clip fastening system includes:



  1. Cast iron tie plate
  2. Fast clip
  3. Rail anchor
  4. Sleeve



Features:

  1. Fast clamp with 1.8 mm fatigue strength
  2. Rail tilting protection by middle bend of the tension clamp and special design of the angled guide plate
  3. Pre-assembly of all components in the sleeper factory possible
  4. Reduction of maintenance costs by permanent elastic tensioning of the rail with tension clamps (2 x 12 kN toe load)
  5. Gauge adjustment ±10 mm in 2.5 mm steps



Produce Process

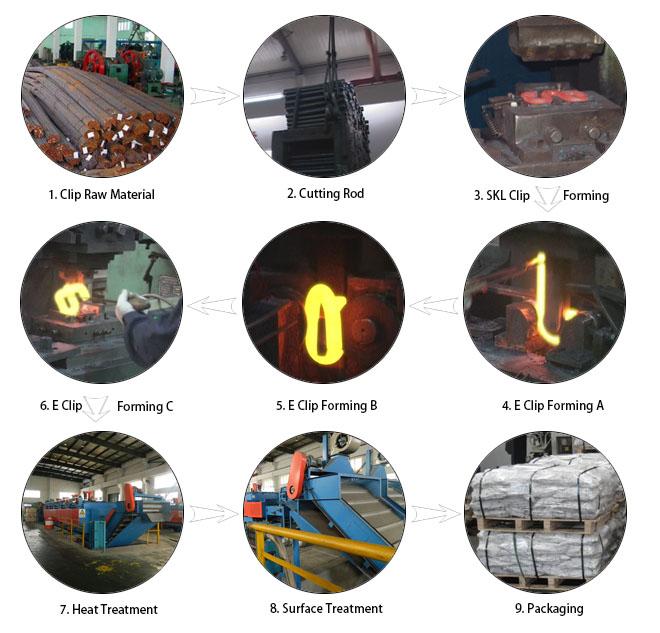

Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing

Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway

Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway





Surface Treatment

  1. plain (oiled)
  2. oxide Black
  3. color painting
  4. DHG
  5. galavazing

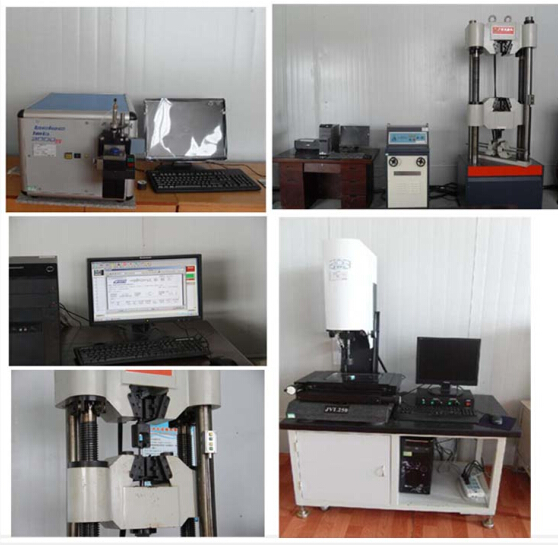

Inspection machine

  1. Brinell Hardness Tester
  2. Rockwell Hardness Machine
  3. Automatic Impact Testing Machine
  4. Metallographic Microscope
  5. Carbon and Sulfur Analyzer
  6. Fatigue Testing Machine
  7. Metallographic Specimen Polishing Machine
  8. Metallographic Specimen Pointing Machine
  9. Automatic High-speed Analyzer

Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway



Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft

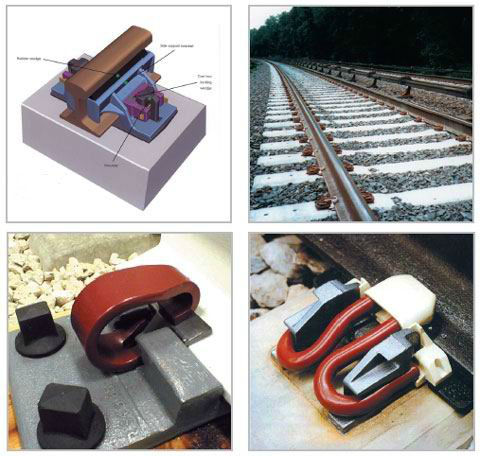

Application

  1. Speed <120km/h
  2. High-way speed >120km/h

 Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway





Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material and grade
  3. Surface Treatment
  4. Order quantity

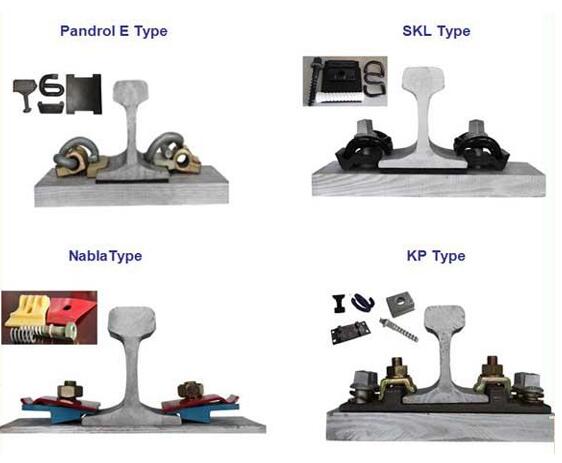

Similarity



  1. E clip system
  2. SKL1 clip system
  3. SKL2 clip system
  4. SKL3 clip system
  5. SKL12 clip system
  6. SKL14 clip system
  7. SKL21 clip system
  8. Nabla clip system
  9. KP clip system

Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway

Railway Fast Clip Quick Clamp System 60Si2MnA Painting in Subway



If you have any other models of rail/ rail fastener, welcome to contact me.
