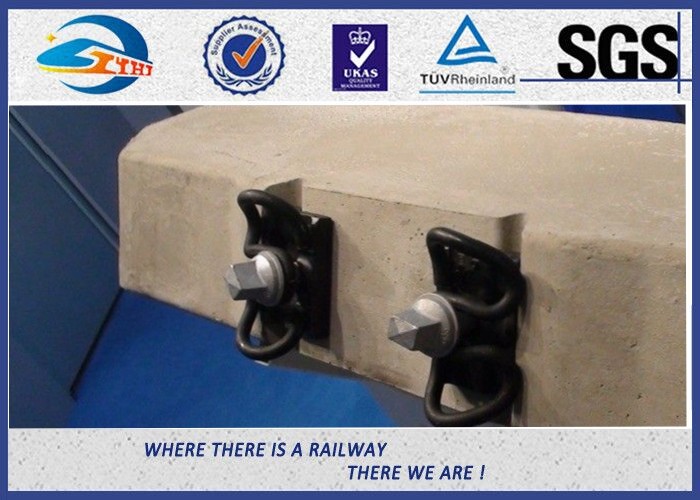

SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System

China SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System supplier
SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System supplier SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System supplier SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System supplier SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System supplier

Large Image :  SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: SKL14

Payment & Shipping Terms:

Minimum Order Quantity: 3 - 5 MT
Price: USD 0.9 - 2.8 PC
Packaging Details: 25kg double-layer bag, 36bags/pallet, 24pallets/container or as your request
Delivery Time: 30 work days after getting payement
Supply Ability: 500,000 pcs per month
Contact Now
Detailed Product Description
Manufacturer: Zhongyue Railway Material Co.,ltd. Material: Elastic Steel
Surface: Plain (oiled), Oxide Black, Galvanized, HDG Drawing: Designed From Client



SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System





Commercial Name: Other steel materials for railway tramway tracks

Brand: Zhongyue

Supplier: Zhongyue Railway Material Co.,ltd.



Address: No#199 Huanlou Road Kunshan Jiangsu P.R China



HS Code: 73029 09000



Drawing

SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System





Rail fastening system

  1. Clamp
  2. Screw spike
  3. Sleeve
  4. Insulator
  5. Rail pad

SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System

SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System









Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing

SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System

SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System





Material Choice: spring steel

  1. 60Si2MnA
  2. 60Si2CrA
  3. 55Si2Mn
  4. 38Si7

Technical Parameter Table of Material

SKL Series SKL1 SKL3 SKL12 SKL14
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64,  C:0.56-0.64,  C:0.52-0.60,  C:0.35-0.42,
Mn:0.60-0.90,  Mn:0.40-0.70,  Mn:0.60-0.90,  Mn:0.50-0.80,
Si:1.60-2.00,  Si:1.40-1.80, Si:1.50-2.00, Si:1.50-1.80,
Cr:≤0.35,  Cr:0.70-1.00  Cr:≤0.35
P:≤0.03,  P:≤0.03,  P:≤0.03,  P:≤0.03,
S:≤0.03 S:≤0.03 S:≤0.03 S:≤0.03
Hardness 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking





Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System



Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine



Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft



Application

  1. Speed <120km/h
  2. High-way speed >120km/h

SKL14 Oxide Black Elastic Rail Clips Galvanized Clamp as Railway Fastening System





Similar Elastic Clip



Same series SKL1
SKL2
SKL3
SKL12
General series E type
Nabla type
KP / KPO type
Special series PR type
Deenik type
Russian type
Fats clip
Gauge lock clip





Sale Rang

  1. Dog spike / Screw spike
  2. Bolt set
  3. Elastic clamp
  4. Rail anchor
  5. Rail shoulder
  6. Fish plate
  7. Tie plate
  8. Plastic / Rubber parts
  9. Brake shoe
  10. Rail fastening system
  11. Steel rail
  12. New wood sleeper



Quotation necessity

  1. Drawing with full size
  2. Order quantity
  3. Material
  4. Surface Treatment



If you have any other models of rail/ rail fastener, do not hesitate to contact me.
