Carbon Steel Two - Holes Rail Clips/Q235 A100 QU100 Crane Track Clamp

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: 21/050 AN/BN
Minimum Order Quantity: 2000sets
Price: Negociable
Packaging Details: 25kg/woven bag, 36bags/pallet, 24pallets/container
Delivery Time: 30 days according to your order quantity
Payment Terms: T/T, 30% in advance
Supply Ability: 600,000 pcs per month
Material: Q235 Surface: Plain, Oiled, Oxide Black, Wax, HDG
Customization: Acceptable Market: All Round The World
High Light:

crane rail clips

,

din rail clips



Carbon Steel Two - hole Rail Clips Q235 A100 QU100 Crane Track Clamp





SUYU can supply a range of TRACK CLAMP SYSTEM manufactured to international standards according to BS, ASTM and DIN, among others.

SUYU has extensive experience in the rail industry and a high level of expertise in this specialized field. SUYU can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.



Specification:



Item Name Two Hole Clamp
Usage Rail Fastening
Material Iron Steel
Surface Treatment Bluing, Plain Oiling, Color Painting, etc
Documents with Delivery Mechanical Properties, Chemical Composition, All Sizes Reports
Standard ISO, SGS, TUV





System
Two hole clip system
Item Part Quantity Size
1 Upper clip 1 150*92mm
2 Weldable clip 1 160*60mm
3 Rubber rod 1 140*13mm
4 Bolt  2 M20*55
5 Hex nut 2 M20
6 Washer 2 M21





















Product Show

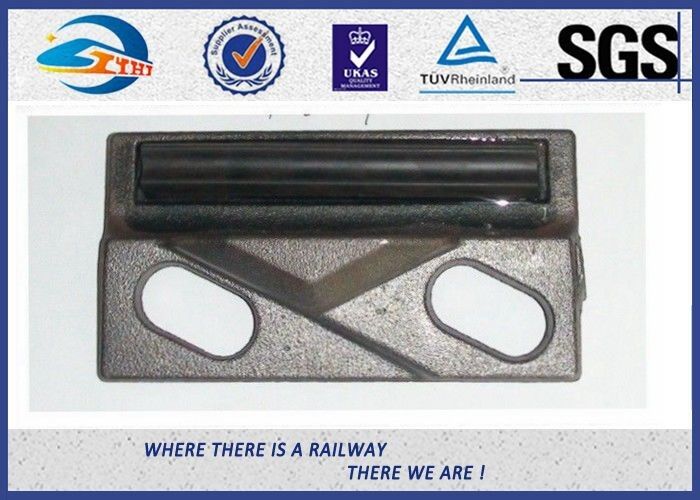

Carbon Steel Two - Holes Rail Clips/Q235 A100 QU100 Crane Track Clamp 0

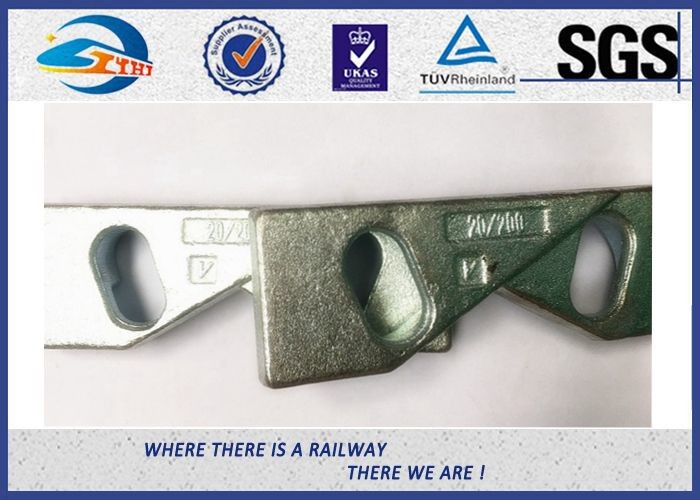

Carbon Steel Two - Holes Rail Clips/Q235 A100 QU100 Crane Track Clamp 1



Material



Forging: Q235;



Grade 4.6
Material Q235
Mechanical Tensile strength:  ≥ 400Mpa
Yield strength: ≥ 240Mpa
Elongation: ≥ 22%
Cold bending: 90 degree
without crack



Note

the first 4: tensile strength of material Q235 is 400MPa;

the second 0.6: the yield ratio is 0.6;

the yield strength of material Q235 is 400MPa x 0.6 =240 MPa.


MOQ: 3.0 MT/ORDER
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement





Surface Treatment

  1. plain (oiled)
  2. oxide Black
  3. galavazing
  4. DHG


Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine



Application

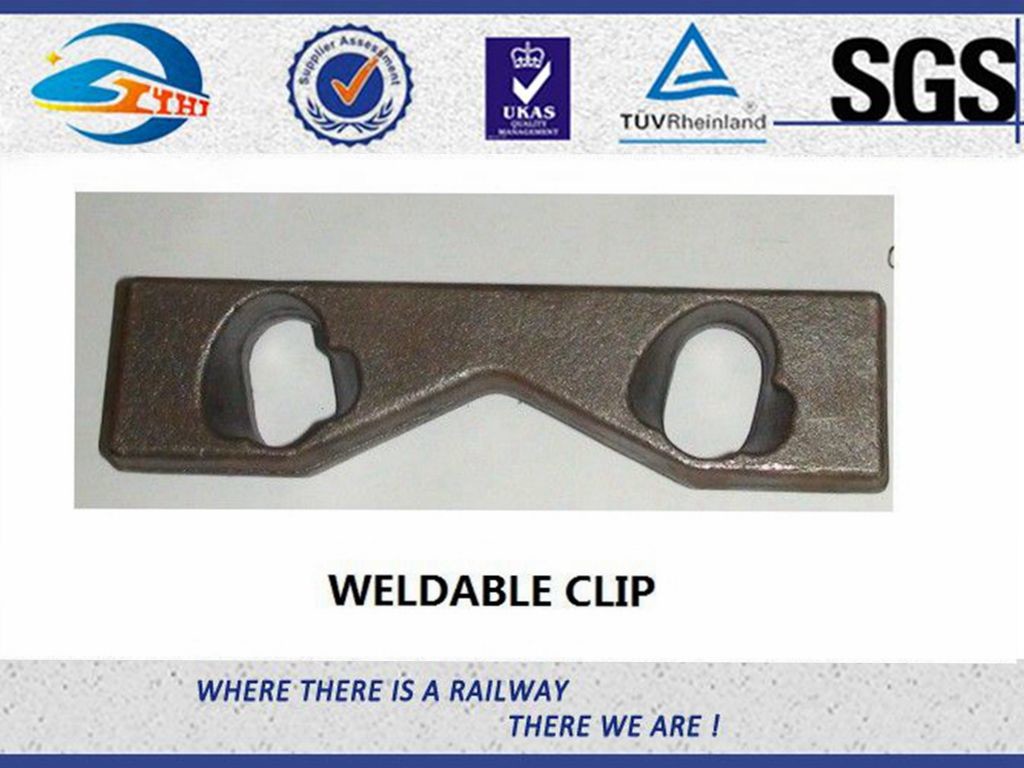

Carbon Steel Two - Holes Rail Clips/Q235 A100 QU100 Crane Track Clamp 2



Similarity:

  1. one hole clip system
  2. E clip system
  3. SKL clip system
  4. Nabla clip system
  5. dog spike system

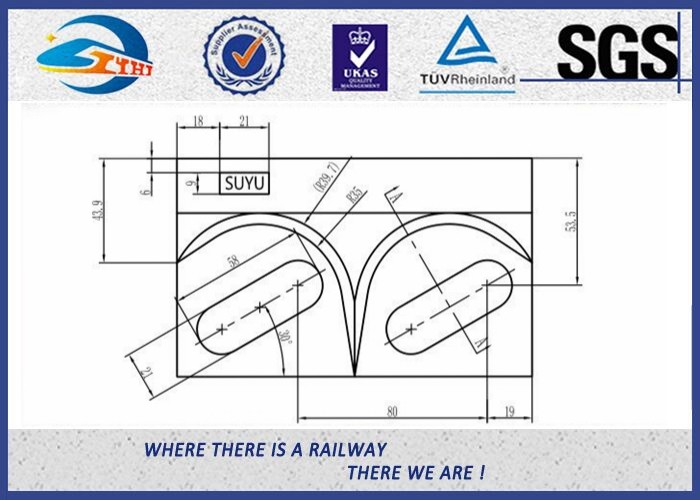

Carbon Steel Two - Holes Rail Clips/Q235 A100 QU100 Crane Track Clamp 3





Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft
  4. as client's requirement

Quotation necessity ( the more information, the better )

  1. Drawing with full size
  2. Order quantity
  3. Surface Treatment
  4. Material

Sale Rang

  1. Rail fastening system
  2. Dog spike
  3. Screw spike
  4. Bolt set
  5. Elastic clamp
  6. Rail anchor
  7. Rail shoulder
  8. Fish plate
  9. Tie plate
  10. Plastic
  11. Rubber parts
  12. Brake shoe
  13. Steel rail
  14. New wood sleeper



If you have any futher question or request, welcome to contact me.


Contact: Janet Jiang zy15@zyrail.com
