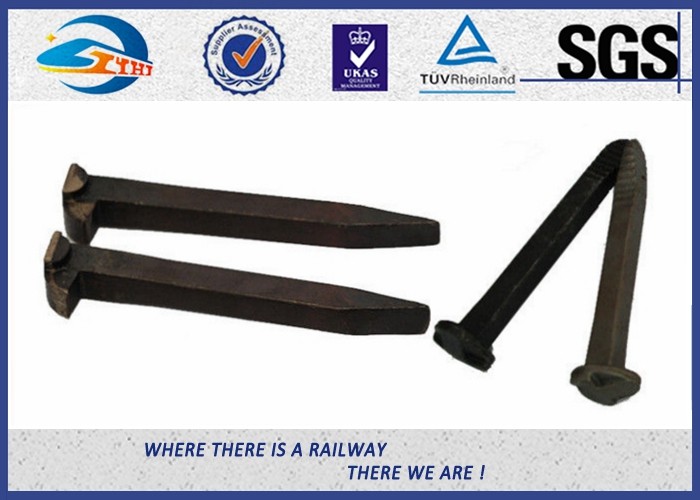

Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market

China Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market supplier
Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market supplier Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market supplier Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market supplier Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market supplier Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market supplier Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market supplier Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market supplier

Large Image :  Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market

Product Details:

Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: AS 1085.8

Payment & Shipping Terms:

Minimum Order Quantity: 10,000pcs
Price: USD0.2 to USD2
Packaging Details: 25kg/bag or carton, 36bags/pallet, 24pallets/container
Delivery Time: 10 - 30 days according to your order quantity
Payment Terms: T/T, L/C
Supply Ability: 100,000pcs per week
Contact Now
Detailed Product Description
Material: Q235, 35#, 45# Surface: Plain (oiled), Oxide Black, Low Carbon Steel
Grade: 5.6 Sample: Free
Customization: Available Standard: AS 1085.6
Advantage: 12 Years Production Experience Drawing: As Your Request



Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market





A rail spike (also known as a cut spike or crampon) is a large nail with an offset head that is used to secure rails and base plates to railroad ties in the track. A dog spike is functionally equivalent to a cut spike and is also square in horizontal section and of similar dimensions but has a pointed penetrating head, and the rail (or "plate holding") head has two lugs on either side (which aid spike removal) giving the impression of a dog's head.



Name

Plain Surface 5.6 Grade Carbon Steel Track Spike For Australian Market

Size

16x16xL

16x16xL

5/8x5/8xL

3/8x3/8xL

16x16x170

16x16x150

9/16"xL

square

square 16mm

5/8"x5/8"x5"

5/8"xL

10mm

19mm





16mm

Dia.22mm

Grade

4.6

4.6

A370

ASTM A65 Gr1,Gr2

4.6

4.6

ASTM A65 Gr1,Gr2

4.6

4.6

Material

Q235

low carbon steel

Q235

Q235

low carbon steel

low carbon steel

low carbon steel

SS41

low carbon steel

Surface

plain (oiled)

Standard refers

GB/T 1346

GOST5812

AREMA

AREMA

Ss-EN10025

BS70R, BS60R

AREA

JIS E1108

AS 1085.8



Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market



Production Process
Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Heat Treatment —— Surface treatment —— Final  inspection —— Packaging —— Shipment



Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market



Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Package

Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market

Plain Surface 5.6 Grade Carbon Steel Railroad Track Spikes For Australian Market
