Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar

China Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar supplier
Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar supplier Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar supplier Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar supplier

Large Image :  Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar

Product Details:

Place of Origin: Changshu City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: SUYU56

Payment & Shipping Terms:

Minimum Order Quantity: 3000 Pcs
Price: USD 0.4-1.8 / Pc
Packaging Details: Double-layer woven bag with fumigation-free wooden pallet or wooden box
Delivery Time: 15-30 Days after Receiving PO
Payment Terms: L/C, T/T
Supply Ability: 250 Tons / Week
Contact Now
Detailed Product Description
Product: Rail Joint Bar Material: 50#
Standard: BS47-1 Or UIC864 Color: Plain
Hole: 4-Hole And 6-Hole Dimension: Based On Clients' Requirements

Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar



General Introduction

Hot rolled from high quality steel, accurately cut to lengths required and accurately punched to suit
proper bolt hole configurations. Stamped identifications to provide ease of installation, proper application
and quality identification for traceability.



Technical Specification

Name Railroad Joint Bar
Standard Type Length /Diameter Weight(Kg) Material
AREMA2007 115RE 4 hole- 24″ 17.04

45# Chemical

Composion(%):

C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

50# Chemical

Composion(%):

C:0.62-0.70,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

115RE 6 hole -36″ 25.56
132-136RE 4hole-24″ 17.75
132-136RE 6hole-36″ 26.63
UIC864 UIC60 4 hole - 630/Φ26 18.07
UIC60 4 hole-600/ Φ26 17.47
UIC60 4 hole  - 630/ Φ25 18.1
UIC54 4hole 14.34
UIC54 6hole- 800 19.94
BS47-1 BS80A 4hole 6.5
BS90A 685.8 /  Φ26 13.23
BS90A 792.9/ Φ26.2 15.34
  90/91LB 4 hole 18.08
  90/91LB 6hole 19.9
AS 50Kg 4hole 14.3
50Kg 6hole 19.5
BS47-1 BS75R 4hole 6.56
BS60A 4hole 5.61
  S49 4 hole 9.71

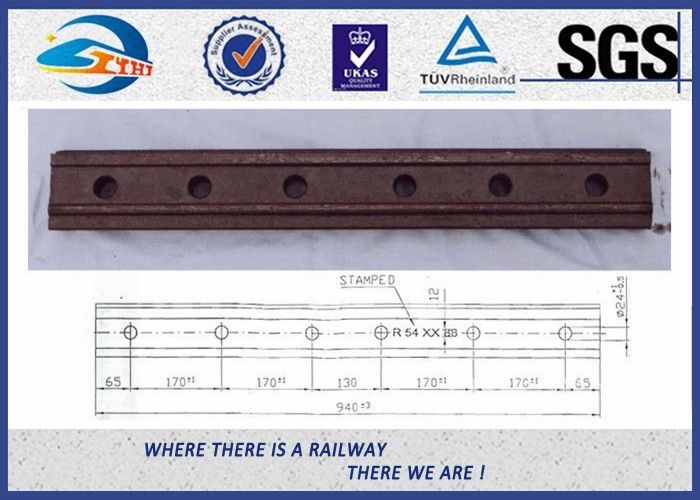

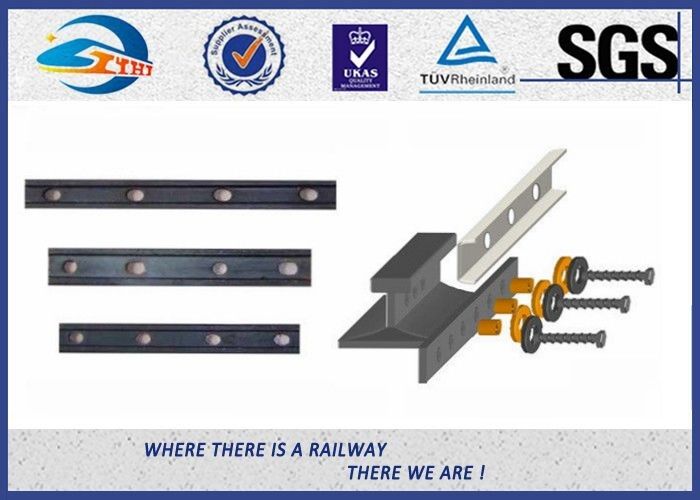

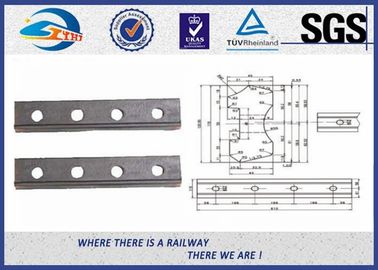

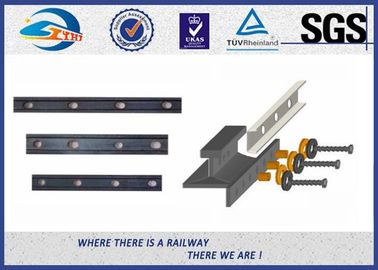

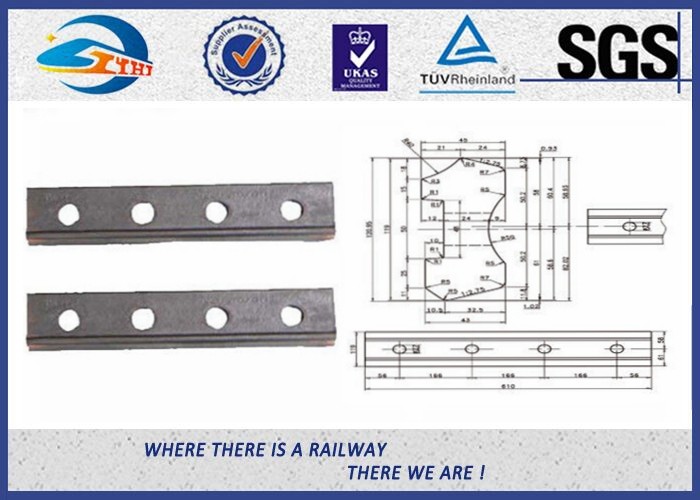

We deal in all types of Railroad Joint Bar, also known as fish plate, splice bar and angle bar. We have in-house rolling, forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates are manufactured to international standards according to BS, ASTM and DIN, among others.

Normal Railroad Joint Bar
We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.

Joggled Railroad Joint Bar
This product is a specially forged fish plate. It is suitable for the temporary repair of cracked welded rail joints with clamp assembly to suit various rail sections. Used as an emergency clamp, joggled fish plate enables quick and temporary repair, allowing continued movements through the section at a reduced line speed. They are readily available in a considerable quantity at all times.
