Black Spring Locking Washer 65Mn for Bolt / Split Lock Washers

Basic Information
Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: customized
Minimum Order Quantity: 3 Tons
Price: 0.1-1 USD Per Piece
Packaging Details: Woven bags and wooden pallets, wooden cases
Delivery Time: 15-30 days after formal order
Payment Terms: L/C, T/T
Supply Ability: 800 Tons Per Month
Product: Washer Material: 65Mn Or / 38Si7
Color: Black / Galvanized Standard: A.R.E.A 1967
Application: Bolt / Spike Customization: Accepted
High Light:

spring lock washer

,

spring steel washers

Black Spring Locking Washer 65Mn for Bolt / Split Lock Washers​

SUYU-Lock wedge lock washers have been rigorously tested and approved by independent institutes as well as certification authorities. SUYU-Lock wedge lock washers are used in numerous industries such as: energy, transportation, offshore, mining and quarrying, construction and bridge building, manufacturing and processing, ship building, forestry and agriculture, heavy vehicles, and military. Our washers are approved by several industry standards and specified by numerous international companies. Over the operational life cycle, SUYU-Lock wedge lock washers give increased operational reliability and lower maintenance costs while significantly reducing the risks of production stops, accidents and warranty claims.




Split lock washers provide greater bolt tensioning for tighter assemblies and provide protection against loosening resulting from vibration. Lock washers can be used with a standard washer to provide uniform bearing surface. These washers are intended for general use.

Specifications



Type

Demension

Weight (Kg/Mpcs)

Spring wsaherFe6(UIC864-3)

diam: 25

90

Spring washer AREA67

7/8

90.55

Spring washer AREA67

1

152.33

Spring washer AREA67

1-1/8

187.65

Plain pattern washer

7/8

70.46

Plain pattern washer

1

78.03

Plain pattern washer

1-1/8

85.32

Flat washer ULS6

47/23/4

41

Flat washer ULS6

50/25/4

42

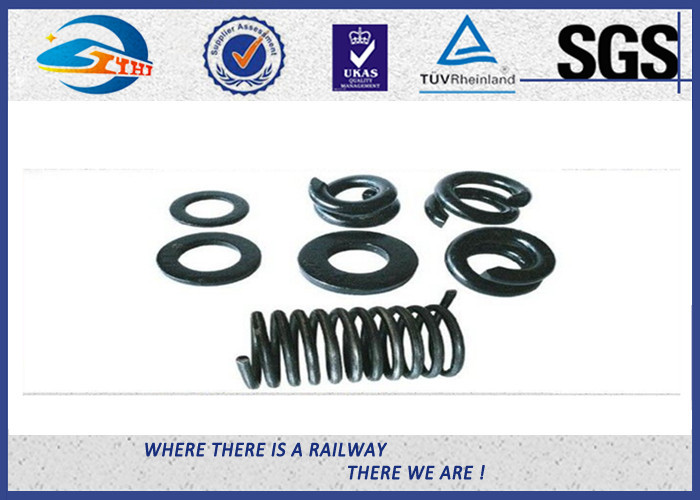

Sample show
Black Spring Locking Washer 65Mn for Bolt / Split Lock Washers 0




Washer standard
DIN 934,985, 439, A563 DH,10S 2H,
Gr 4, Gr7, B8, B8M, A2,A4,
SS316L, B8, B8M

Washer, Materials
Carbon steel, stainless steel, F436M,
SS304, SS316L,
SPRING,TAPER, PLATE,SS316
4.6. CARBON STEEL,ASTM
a36, 8.8 ,b7, a307, a325, a490,
WASHERS Standard: DIN6798, DIN6797
Diameter: (mm)3.2-15

Length:- M10-1.5, M10-1.25, M10-1.0
Product Name: WASHERS
Brand Name: CANCO
Standard Model DIN  ANSI JIS ASTM
FINISH :Black,Zinc Plated ,HOT GALVANIZED,Cr Cu or Ni Plated
Material:- Carbon Steel,Brass, Stainless steel,Spring steel, Alloy steel


Application



  1. Bolt
  2. Screw Spike

Black Spring Locking Washer 65Mn for Bolt / Split Lock Washers 1
Dimensions



Bolt Size A B C Weight in Pounds Per 100 Pieces
Inside Diameter Max Outside Diameter Max Thickness
Min
1/4 0.260 0.487 .062 0.24
5/16 0.322 0.583 0.078 0.40
3/8 0.385 0.680 0.094 0.60
7/16 0.450 0.776 0.109 1.0
1/2 0.512 0.869 0.125 1.3
5/8 0.641 1.073 0.156 2.4
3/4 0.766 1.265 0.188 4.3
7/8 0.894 1.459 0.219 6.0
1 1.024 1.656 0.250 8.8
1-1/8 1.153 1.847 0.281 12
1-1/4 1.280 2.036 0.312 16
1-3/8 1.408 2.219 0.344 21.9
1-1/2 1.534 2.419 0.375 28.2
1-3/4 1.789 2.679 0.389 30.35
2 2.039 2.936 0.422 32.50
2-1/4 2.293 3.221 0.440 39
2-1/2 2.543 3.471 0.440 45
2-3/4 2.793 3.824 0.458 50
3 3.043 4.074 0.458 56




Package

Black Spring Locking Washer 65Mn for Bolt / Split Lock Washers 2



Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material and Grade
  3. Surface treatment
  4. Order quantity



Sale Rang

  1. Rail fastening system
  2. Dog spike;
  3. Screw spike
  4. Bolt and nut
  5. Elastic clamp
  6. Rail anchor
  7. Rail shoulder
  8. Fish plate
  9. Tie plate
  10. Plastic
  11. Rubber parts
  12. Brake Block
  13. Steel rail
  14. New wooden sleeper
