Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement

China Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement supplier
Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement supplier Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement supplier Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement supplier

Large Image :  Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001
Model Number: customizable

Payment & Shipping Terms:

Minimum Order Quantity: 10 kpcs
Price: 0.1-1 USD per pc
Packaging Details: 25kg Double-layer woven bag and free fumigation wooden pallet
Delivery Time: 15-30 days after the formal order
Payment Terms: L/C, T/T
Supply Ability: 200 Tons per week
Contact Now
Detailed Product Description
Product: Track Rubber Pad Material: Rubber Or HDPE
Color: Black / Red Size: Customizable
Making Process: Injection Moulding Advantage: Durable

Rail HDPE / Rubber Pad Track Support Customizable Railway Basement





ZHONGYUE

have been supplying track support products to the rail industry for many years.Manufactured in a

variety of natural and synthetic elastomers, SUYU railpads are designed to withstand the most demanding

operating environments. ZHONGYUE railpads offer the following benefits:



1. Dramatically Improved Impact

2. Attenuation Noise Suppression

3. Improved Passenger Comfort

4. Extended Track Life

5. Extended Ballast Life



ZHONGYUE in a joint initiative with a major world producer of rail track fastening systems analysed and

developed a resilient pad concept to protect concrete rail sleepers from damage caused by the dynamic

forces of passing trains. The result was the Patented Studded railpad.



Over 45 Million of these rail pads are now used successfully Worldwide, including the USA, Canada,

Australia, Norway, Sweden, Denmark, Belgium, France, Georgia, Lithuania, Hong Kong, Japan, Korea,

Czech Republic, Uzbekistan, Syria, Singapore, Sudan, Estonia, Finland and extensively within the UK.



The combination of studded design and specially formulated rubber compound, gives SUYU patented

rail pads a unique high resilience and abrasion resistance.



Their superiority to those manufactured from other materials has been proven by their ability to reduce

dynamic forces by up to 65%, which is a crucial consideration for railway systems worldwide as they adopt

higher speeds and greater axle loads.



Material



Test Report of  Rubber (EPDM)

Product

EPDM

Specification

EP00179

No.

Item

Test Method

Required Value

Test Value

1

Shore Hardness

D-2240

60±5

64

2

Tensile Strength(Mpa)

D-412

>1.25

14.4

3

Elongation at Break(%)

D-412

>280

288

4

Permanent Compression Set
(%)

D-395

28

28

5

Tear Strength(KN/M)

D-624

/

43

6

Operating Temperature





-30C-100C



HDPE Properties



No.

Items

Unit

Technical Requirements

Actual Data

1

Density

g/㎝3

0.95-0.98

0.95

2

Tensile

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting Point

170-190

190

5

Insulation Resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)



Product Photos

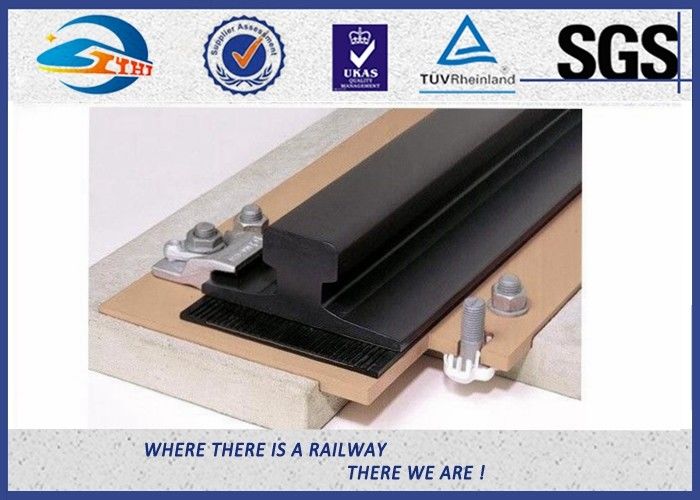

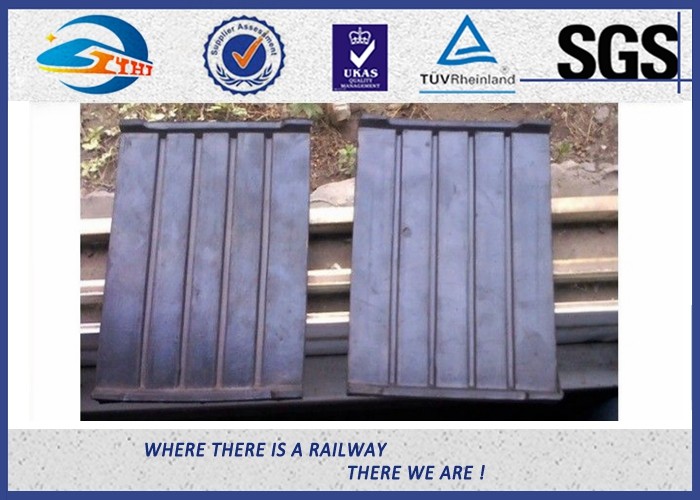

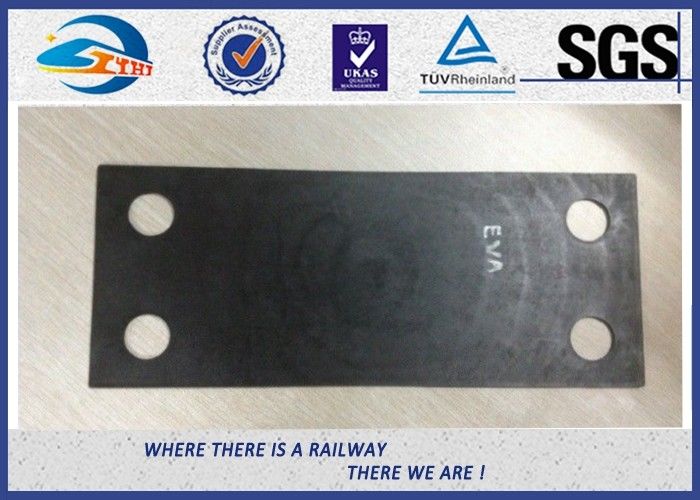

Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement



Working room

Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement



Application


Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement


Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material
  3. Order quantity



Sale Rang

  1. Rail fastening system
  2. Dog spike; Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic
  10. Rubber parts
  11. Brake shoe
  12. Steel rail
  13. New wood sleeper


If you have any other models of rail/ rail fastener, welcome to contact me.
