Head forming DIN Standard Coach Railway Sleeper Screws Plain oiled For Sleeper

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: custom-made
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 15-30 work days after getting payment
Payment Terms: T/T, 30% in advance
Supply Ability: 600,000 pcs per month
Product Name: Track Spike Application: Railroad
Grade: 4.6, 5.6, 8.8, 10.9 Material: Q235, 35#, 45#, 40Cr
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Standard: ISO898-1, UIC864-1, And NF F500-50
High Light:

stainless steel coach screws

,

black oxide screws

Head forming DIN Standard Coach Railway Sleeper Screws Plain oiled For Sleeper





Material

Material
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa Tensile strength:≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%
Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing



Note ( 8.8 as a sample)

the first 8: tensile strength of material 45# is 800MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material 45# is 800MPa x 0.8 = 640 MPa.


MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement





Process

  1. Raw material
  2. Wiredrawing
  3. Cutting
  4. Head forming
  5. Heat treatment
  6. Surface treatment
  7. Final inspection
  8. Packing
  9. Shippment

Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Package

1. 25kg per double layer woven bag+ free fumigation wooden pallet

    36bags/pallet,

    24pallets/container

2. Keg

3. in according with your request
Similarity




ZHONGYUE specialize in producing rail fastening , screw spikes are our main products , these screws spikes are used to fasten sole plates & ribbed base plates to wooden sleepers. In the rail constructions with the concrete sleepers these screws are used in combination with a plastic dowel pressed in concrete sleeper . Below is some of our main products .


1. Ss series , according to UIC864-1 , grade from 4.6 .5.6 .8.8

  Surface : plain (oiled ) .Zinc .Hdg

  Material : Q235 .35#. 45#



Type

Dimension (mm)

Weight (Kg)

Ss5.-150

M24×150

0.545

Ss8-140

M24×140

0.528

Ss8-150

M24×150

0.548

Ss8-160

M24×160

0.568

Ss23-160

M24×160

0.645

Ss25.-165

M24×165

0.625

Ss35.-161

M24×160

0.657



 Screw spikes with the standard ASTMA66-87 , cold bending 90 degree without cracks .



2. Screw spike mostly used in South American and Africa with big disk

3V sleeper screw meet with NF F50-006 , grade 4.6 &5.6 , the mechanical properties are in accordance with UIC864-1 standard .

Coach screw used for mining industry

7. DHS35 screw spike , Supporting the use of the SKL14 system .

8. Screw spike 22×115 , assembly with SKL1 system with the grade 5.6 , according to the standard NF-F 50014 .

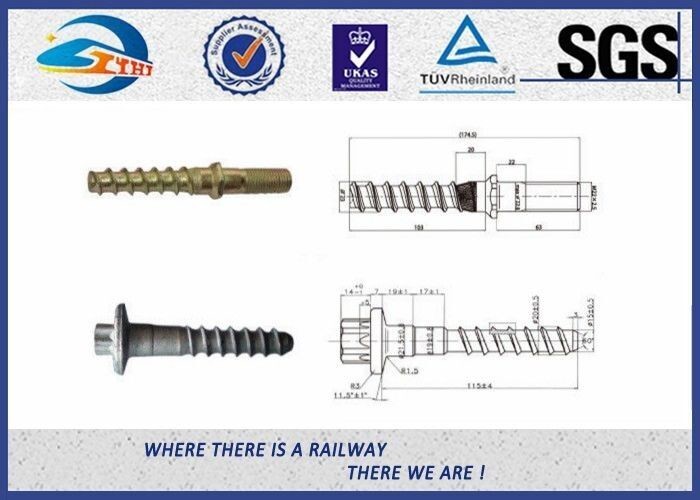

9 Special screw spike 23×174 , fix the rail together with the Nabla clip system, very popular in Africa ,We use the special material TD16 to produce the screw to meet with the bending test , bending 30 degree and straightening it , without crack .

10 .Dive spikes are available for a wide installations & maintenance of way , meet with the standard ASTMA66-87 , cold bending 90 degree without crack



As a leading manufacturer of rail fastening in China , ZHONGYUE also can produce many other railway fasteners , such as track bolt . track spike .rail anchor .fish plate . Base plate .rail clips and so on .



Sticking to the “quality first” policy, ZHONGYUE pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.

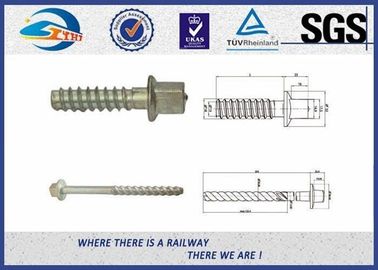

Head forming DIN Standard Coach Railway Sleeper Screws Plain oiled For Sleeper 0

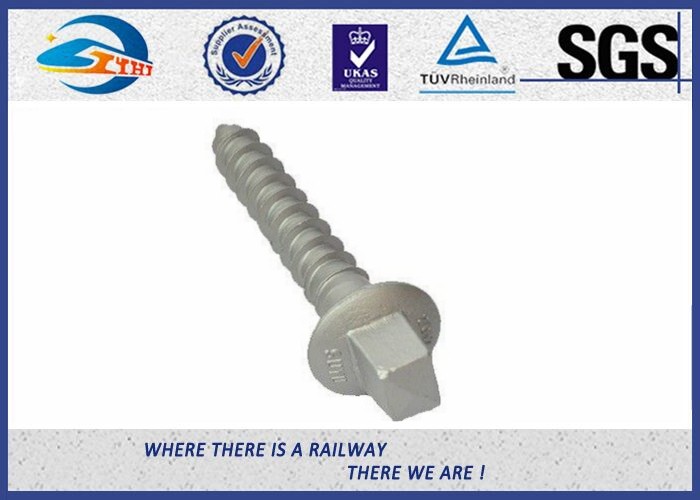

Head forming DIN Standard Coach Railway Sleeper Screws Plain oiled For Sleeper 1

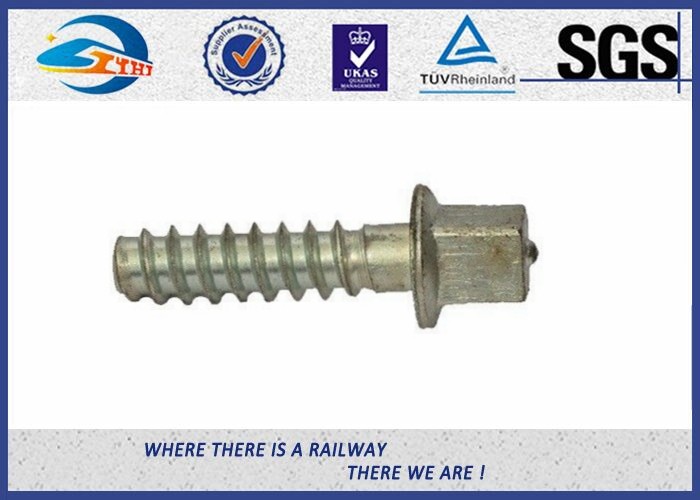

Head forming DIN Standard Coach Railway Sleeper Screws Plain oiled For Sleeper 2
