Spring Steel E Type Railway Track Fasteners 20mm E Clip Rail Fastening

China Spring Steel E Type Railway Track Fasteners 20mm E Clip Rail Fastening supplier

Large Image :  Spring Steel E Type Railway Track Fasteners 20mm E Clip Rail Fastening

Product Details:

Place of Origin: Changshu City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS , TUV, ISO9001:2008
Model Number: SUYU E Clip

Payment & Shipping Terms:

Minimum Order Quantity: 5000 Sets
Price: USD 5-15 / Set
Packaging Details: Woven Bags and Wooden Pallet, 25kg/Bag, 36 Bags/Pallet, 26 Pallets/Container
Delivery Time: 15-30 work days
Supply Ability: 2500 tons / week
Detailed Product Description
Product: E Clip Rail Fastening System Material: 60Si2MnA, HDPE, Rubber
Color: Plain (Can Be Customized) Application: Fastening Rails
Inspection: Accept Third Party Inspection OEM: Support OEM

Spring Steel E Type Railway Track Fasteners 20mm E Clip Rail Fastening



Introduction of E- Clip Fastening System

Although the SUYU e-Clip is increasingly being superseded by the pre-assembled SUYU Fastclip, these fastenings are still widely used in many countries.

The SUYU e-clip system is typically manufactured from 20mm bar, generates up to 1,250kgf nominal toe load and has been widely adopted for heavy haul axles up to 40 tonnes. SUYU will advise on which pad and insulator materials to use, subject to the environmental and operating conditions. As a general rule, the use of HDPE, TPE or PU is preferred for high axle loads.



Specifications



Part name Type Material Finish Remark
E clip

Dia. 16mmDia.
18mmDia. 20mm

60Si2MnA,
60Si2CrA

Plain oiled,
color painting,
or the other
custom finish

Hardness: 44-48HRC
55SiMn

Toe Load: 500-700kgf for
Dia.16mm

  750-900kgf for Dia.18mm
  1100-1400kgf for Dia.20mm


Fatigue life:3 millions cycles
without breaking for Dia.18mm,
5 millions cycles without
breaking for Dia.20mm



Standard: DIN17221, BS970,
GB/T1222

Shoulder

UIC54,UIC60,
115RE,50kg rail, 60kg rail,

QT500-7

Plain oiled,
color painting

Different designs are available.
BS80lbs,BS100lbs QT450-10
Rail pad

UIC54,UIC60,
BS80lbs,BS100lbs,

HDPE

Black or
other colors

Different designs are available.
in ordered size EVA
  rubber
Insulator UIC54,UIC60,

Reinforced Nylon
66 (PA66)

Black, blue,
yellow, green
or other colors

Different designs are available.

50kg rail, 60kg
rail,BS80lbs,BS100lbs,
and size as ordered

Features


1. Few, simple components
2. Well Proven globally
3. System can be mechanised
4. Very long life
5. High safety level and security
6. Proven on all types of ballasted track
7. Used in turnouts and crossings
8. Can be supplied in anti-vandal form
9. Virtually maintenance free
10. No threads to strip or corrode


Components



Brand SUYU
Product All in railway fastening system
Constitution Screw spike, Dog spike
  Bolt and nut, Washer
  Elastic clip
  Rail anchor
  Rail clip
  Fish plate
  Tie plate
  Plastic pad and rubber pad
  Brake block
  Crane rail

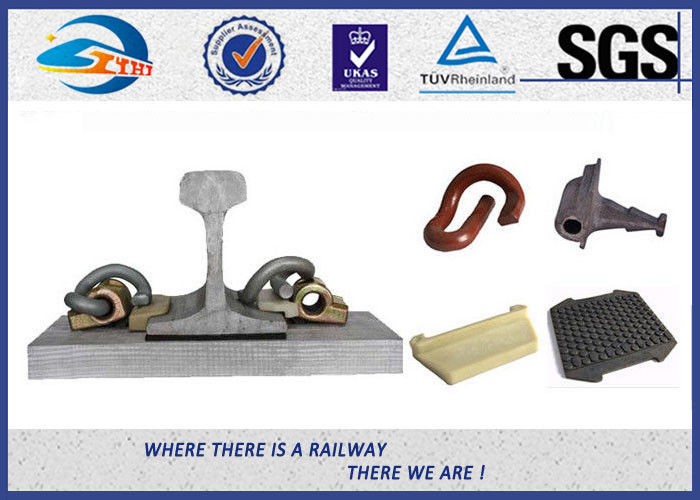

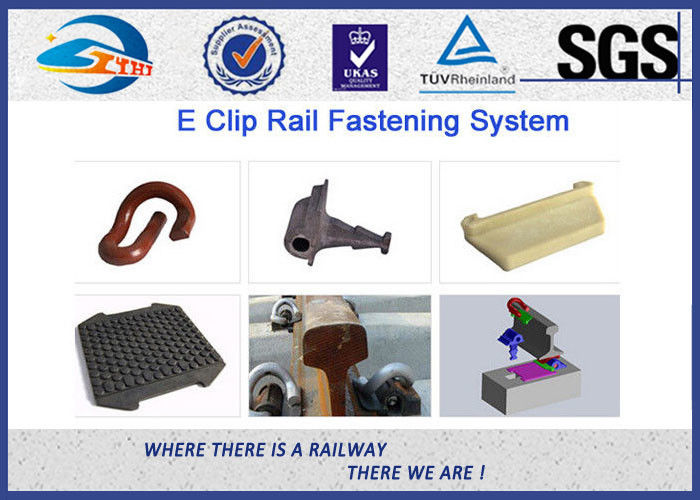

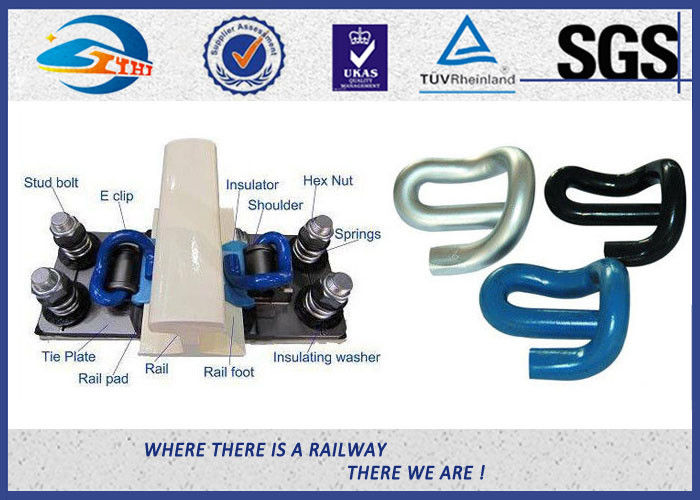

Photos for Reference
