Railroad Metal tie plate for Kazakhstan , Metro Railway Tie Plate

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, ISO9001:2008, TUV
Model Number: UIC54
Minimum Order Quantity: 3 tons
Price: 0.6-1 usd / pc
Packaging Details: Double woven bags with woden pallet , container.
Delivery Time: 15-30 days after placing the formal order
Payment Terms: L/C, T/T
Supply Ability: 1000 tons per month
Contact Now
Product: Railroad Base Plate Material: Q235 Or QT500-7
Color: Plain Application: Suits For UIC60, S49, S54, 90A Etc.
Hole Diameter: 10mm And Can Be Customized OEM: Support OEM
Workmanship: Cast Or Forged Another Name: Tie Plate
High Light:

rail base plate

,

metal tie plate

Railroad Metal tie plate for Kazakhstan  , Metro Railway Tie Plate



Railroad Base Plate, Tie Plate For rail UIC54, UIC60,  50kg rail, 60kg rail,S49 and size as ordered





Brand

ZHONGYUE

Name

fasteners components railway plain tie plate

Type

For rail UIC54, UIC60,  50kg rail, 60kg rail,S49 and size as ordered

Material

QT500-7

QT450-10

low carbon steel or

 high carbon steel

by forged

Low carbon steel

S275JR, Q235,etc.

by rolled

Chemical composition(%)

C:3.60-3.80, Mn:≤0.6,

Si:2.50-2.90, P:≤0.08,

S:≤0.025

C:3.40-3.90,

Mn:0.2-0.5,

 Si:2.70-3.00, ,P:≤0.07,

S:≤0.03

/

/

Surface



plain (oiled)

Standard refers

UIC864-6



A tie plate, baseplate or sole plate is a steel plate used on rail tracks between flanged T rail and the crossties. The tie plate increases bearing area and holds the rail to correct gauge. They are fastened to wooden ties by means of spikes or bolts through holes in the plate.



The part of the plate under the rail base is tapered, setting the cant of the rail, an inward rotation from the vertical. The usual slope is one in forty ( 1.4 degrees ). The top surface of the plate has one or two shoulders that fit against the edges of the base of the rail. The double-shoulder type is currently used. Older single-shoulder types were adaptable for various rail widths, with the single shoulder positioned on the outside (field side) of the rails. Most plates are slightly wider on the field side, without which the plates tend to cut more into the outsides of the tie, reducing cant angle.



Cast iron can be the welded or fabricated type, depending upon the customers requirements. Our rail tie plate can be made to suit various rail section, i.e. UIC 60, UIC 54, RN 45, 90 A, etc.



Technical Specification

Type

Dimension

Holes

Incline

Rail

Weight(Kg)

Rph 1/160

345/285/127/160x15/13

Ø 26 (4x)

1:40

S 49/S 54

7,86

Rp 01/01/160

345/285/127/160x15/13

Ø 26 (4x)

1:40

S 49/S 54

7,70

Rph 1/210

345/285/127x210x15/13

Ø 26 (4x)

1:40

S 49/S 54

10,55

Rph 1/210

345/285/127x210x15/13

Ø 36,3 (2x)

1:40

S 49/S 54

10,55

Rph 1/210 FVZ

345/285/127x210x15/13

Ø 26 (4x)

1:40

S 49/S 54

10,69

Sph 1(a)

345/350/127x410x15/13

Ø 26 (8x)

1:40

UIC 60

20,60

Rph 6/160

370/310/152x160x15/13

Ø 26 (4x)

1:40

UIC 60

8,44

Rph 6/210

370/310/152x210x15/13

Ø 26 (4x)

1:40

UIC 60

11,32

SZ 60

370/350/152x420x15/13

Ø 26 (8x)

1:40

UIC 60

22,73

Rph 11 Ü

664/554x160

Ø 26 (4x)

1:40

S 54

15,37

Rph 13 Ü

690/570x160

Ø 26 (4x)

1:40

UIC 60

15,27

Rpo 5

345/285/127x160x15/13

Ø 26 (4x)

1:20

S 49/S 54

8



Product Photos

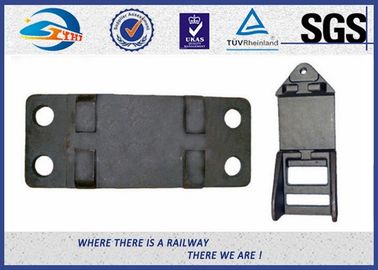

Railroad Metal tie plate for Kazakhstan  , Metro Railway Tie Plate 0
