Spring Steel 60Si2MnA SKL Tension Clamp Elastic Rail Clips Oxide Black

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, ISO9001:2008, TUV
Model Number: SKL3
Minimum Order Quantity: 4000 pcs
Price: 0.8-1.5 usd per pc
Packaging Details: 25kg double-layer woven bag and free fumigation wooden pallet
Delivery Time: 15-30 days after placing the formal order
Payment Terms: L/C, T/T
Supply Ability: 30000 tons per month
Contact Now
Product: SKL Tension Clamp Material: 60Si2MnA, 60Si2CrA
Surface: Oxide Black Diameter: 12mm-20mm
Application: For Fastening Rails Fatigue Test: 3,000,000 Times Without Breaking
High Light:

spring steel clips

,

railroad clips

Spring Steel 60Si2MnA SKL Tension Clamp Elastic Rail Clips Oxide Black



SKL Tension Clamp (SKL1, SKL2, SKL3, SKL12, SKL14)

Purpose

1. With stand vibrations induced in track
2. Pre-assembly at sleeper factory
3. Sustain static and dynamic cyclic stresses.
4. Long Spring Deflection.
5. High creep resistance and effective tilting protection.
6. Provide creep and tortional resistance and keeps rail in position
7. Able to resist lateral forces
8. Able to resist lateral forces
9. Longer life and economic maintenance



Size: 12mm to 20mm Spring Steel Round Bar (60Si2Cr/MnA)





SKL Fastening System

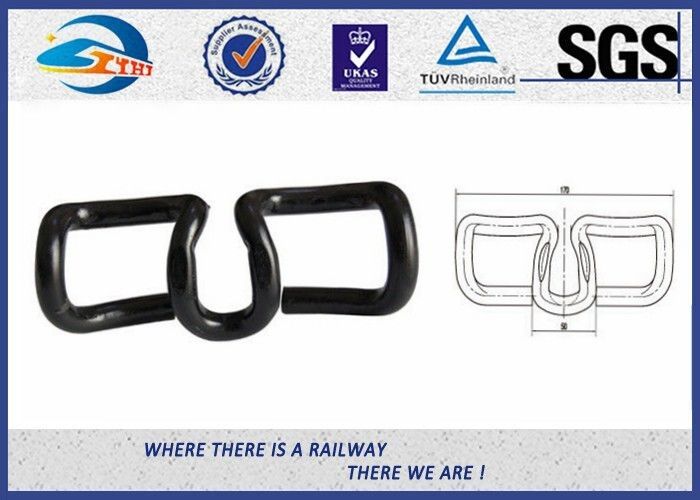

Spring Steel 60Si2MnA SKL Tension Clamp Elastic Rail Clips Oxide Black 0

The system for ribbed plates.
Easy-to-install, efficient and maintenance-free.

Pre-assembly
The mechanised, fully automatic installation of sleepers in the track is the most efficient and most cost-effective method of installation. For this reason, all the fastening components of the System KS can be captively pre-assembled on the sleeper at the sleeper factory.

Rail tightening
The rail is permanently tensioned with a long elastic spring deflection by means of the spring-actuation of the two spring arms of the tension clamp, whereby the fastening normally requires no maintenance.

Protection against tilting
The tilting movements of the rail are resiliently absorbed by the middle bend of the tension clamp.

Neutralisation
No fastening elements have to be removed from the sleeper with continuous welding of the rail (CWR). The T-head bolts merely have to be loosened but not disassembled.

System components
The tension clamp Skl 12 replaces the K-clip and double coiled spring washer in the old System K and makes the ribbed plate system practically maintenance-free as a result of the high creep resistance and protection against tilting of the rail. The tension clamp Skl 12 can be used in the standard gauge railways with a rail pad stiffness ≥ 200 kN/mm. The Skl 19 is used for bottlenecks.

Special solutions
The tension clamp Skl B 12 is available for bridge structures and other requirements with a reduced creep resistance
(approx. 7 kN).
Spring Steel 60Si2MnA SKL Tension Clamp Elastic Rail Clips Oxide Black 1





Specifications

Type SKL1, SKL3, SKL12, SKL14, Nabla clip, gauge lock clip
  Or according to customers’ Drawing or Sample.

Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness For e clip: 44-48HRC
For skl clip: 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking
Surface plain (oiled), Oxide black, color painting
Standard refers DIN17221, BS970, GB/T1222, UIC, ASTM





Photos

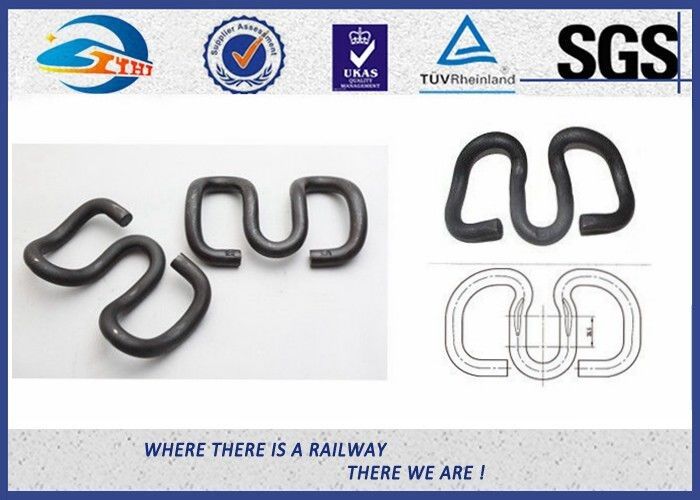

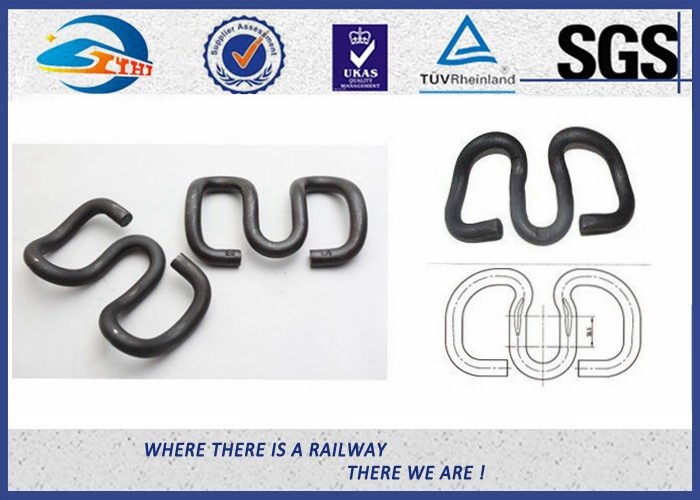

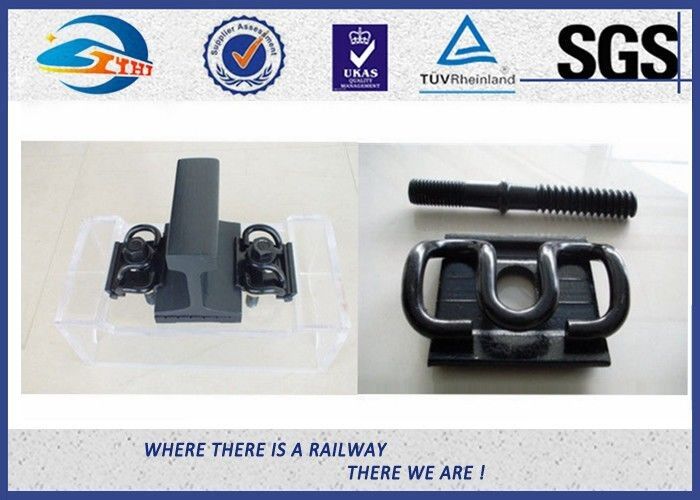

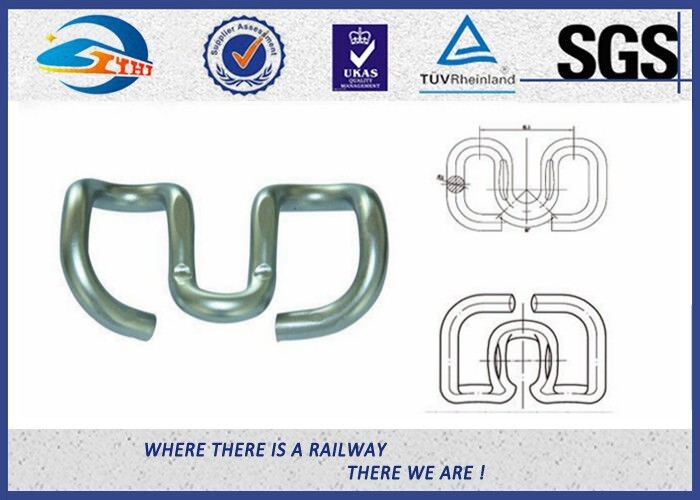

Spring Steel 60Si2MnA SKL Tension Clamp Elastic Rail Clips Oxide Black 2Spring Steel 60Si2MnA SKL Tension Clamp Elastic Rail Clips Oxide Black 3Spring Steel 60Si2MnA SKL Tension Clamp Elastic Rail Clips Oxide Black 4
