Iron Steel KPO Crane Rail Clip TUV , Guide Rail Binder Plate

Basic Information
Place of Origin: Suzhou China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001
Model Number: KPO
Minimum Order Quantity: 5000pcs
Price: USD1 to USD2
Packaging Details: 25kg/woven bag, 36bags/pallet, 24pallets/container
Delivery Time: 20- 30 days according to your order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per week
Material: Q235 Surface: Plain, Oiled, Oxide Black, Wax, HDG
Sample: Available Customization: Acceptable
Market: Africa
High Light:

fastening plate

,

crane rail clips

Iron Steel KPO Crane Rail Clip TUV , Guide Rail Binder Plate



Specification:





Item Name Railway  Rail Clamp
Usage Rail Fastening
Material Iron Steel, Cast Iron
Surface Treatment Bluing, Plain Oiling, Color Painting, etc
Documents with Delivery Mechanical Properties, Chemical Composition, All Sizes Reports
Standard ISO, SGS, TUV




Grade 4.6
Material Q235
Mechanical Tensile strength:  ≥ 400Mpa
Yield strength: ≥ 240Mpa
Elongation: ≥ 22%
Cold bending: 90 degree
without crack



Name QT500-7 QT450-10 QT400-15
Standard GB 1348-88  GB 1348-88  GB 1348-89
Chemical composition(%) C:3.60-3.80 C:3.40-3.90 C:3.50-3.60
Mn:≤0.6 Mn:0.2-0.5 Mn:≤0.5
Si:2.50-2.90 Si:2.70-3.00 Si:3.0-3.2
P:≤0.08 P:≤0.07 P:≤0.07
S:≤0.025 S:≤0.03 S:≤0.02
Tensile Strength ≥500 Mpa ≥450 Mpa ≥400 Mpa
Yield Strength ≥320 Mpa  ≥310 Mpa  ≥250 Mpa
Elongation(%) ≥7  ≥10 ≥15
Hardnrss 170~230HB  160~210HB  130~180HB
Metallographic organization ferrite + pearlite graphite + ferrite + pearlite ferrite

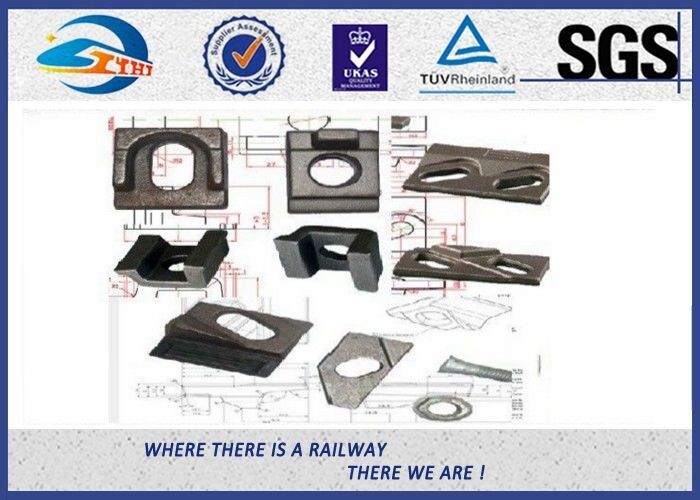

Samples Show:



Iron Steel KPO Crane Rail Clip TUV , Guide Rail Binder Plate 0

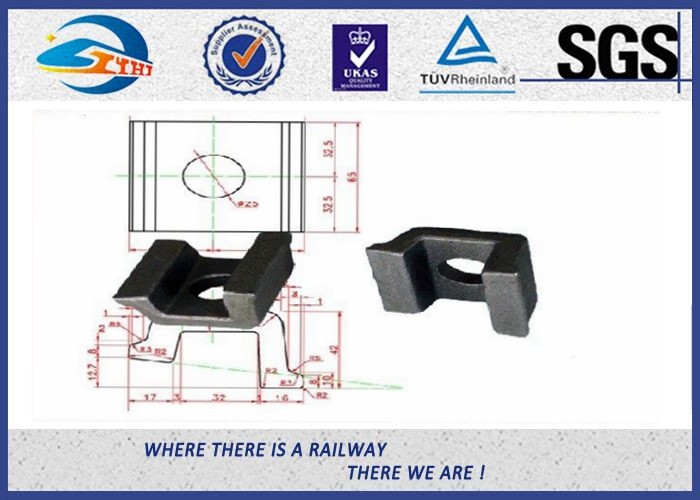

Drawing:



Iron Steel KPO Crane Rail Clip TUV , Guide Rail Binder Plate 1



KPO Clip, Crane Clip 21/050AN/BN And Crane Clip 22/130 AN/BN:





Iron Steel KPO Crane Rail Clip TUV , Guide Rail Binder Plate 2

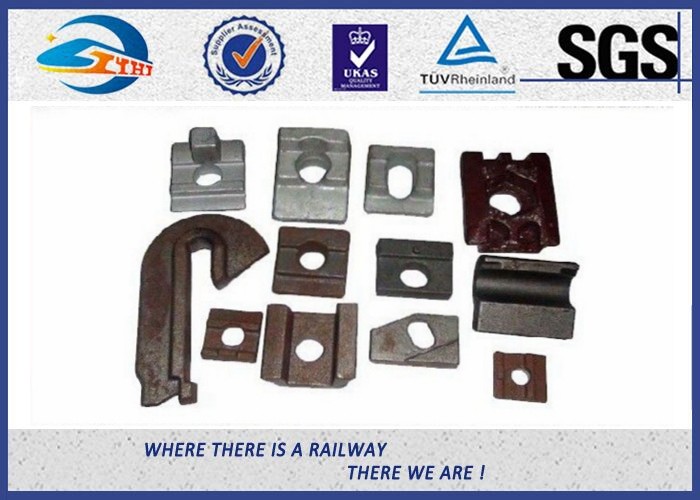

Main Types Of Rail Clip:

Iron Steel KPO Crane Rail Clip TUV , Guide Rail Binder Plate 3



Package:



25Kg Cartons or woven bags in wooden pallet,

36bags/pallets,
24pallets/container ,
or according to customers' requirement
