Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: SUYU60
Minimum Order Quantity: 10000 pcs
Price: 0.5-3 USD per pc
Packaging Details: Double-layer woven bags and wooden pallet
Delivery Time: 20-30 days after placing formal order
Payment Terms: L/C, T/T
Supply Ability: 500000 pcs per month
Product: Angle Guide Plate Color: Black, White, Blue, Yellow Etc.
Material: PA66 OEM: Supporting OEM
Application: On Rail 38kg, 43kg Model: Nabla
High Light:

railway parts

,

rail insulator

Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors



General Introduction of Angle Guide Plate



Angle guide plate is used under tension clamp / SKL / to keep the rail in lateral position and the lateral forces

are passed on to the concrete body by the means of Angle Guide plate. Advantageous as pre assemble at

sleeper factory required. These are made of engineered polymers known as Poly Amide / Nylon 66 with glass

reinforcement for durability and strength. Also providing high electric insulation.Track Adjustment of +/10mm

can be made through Angle guide plate WFP, therefore different angle guide plate can be used for different

rail profile with same sleeper and same gauge.



For example

1.

Wfp 14k 17

2.

Wfp 14k 14.5

3.

Wfp 14k 12

4.

Wfp 14k 9.5

5.

Wfp 14k 7





Specifications

Brand

Zhongyue

Name

Insulating pads

Type

For rail UIC54, UIC60, 50kg rail, 60kg rail,BS80lbs,BS100lbs,

and size as ordered

Material

Reinforced Nylon 66 (PA66)

Technical spec.

Density:1.3-1.45g/cm3

Tensile strength: ≥170Mpa

Elongation: ≤4.4%

Bending Strength: ≥250Mpa

Impact Strength(No gap): ≥80KJ/m2

Melting point:250-270°C

Insulation resistance:≥1×108Ω

Glass fiber content:30-35%

Hardness:≥110HRR

Color

Black, blue, yellow, green or other color





Product Photos for Reference

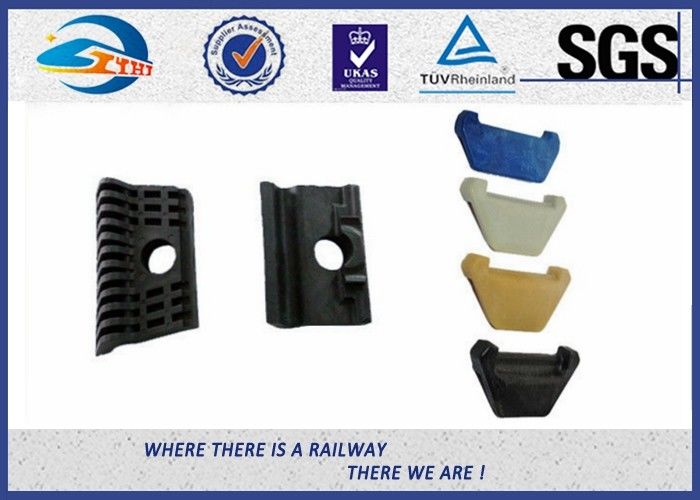

Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors 0

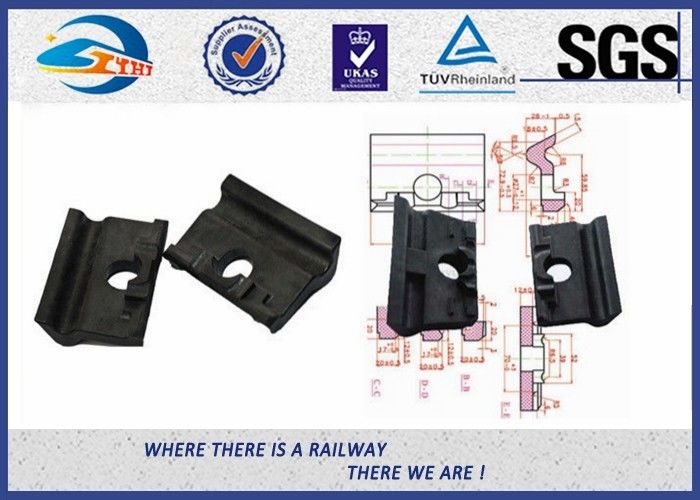

Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors 1

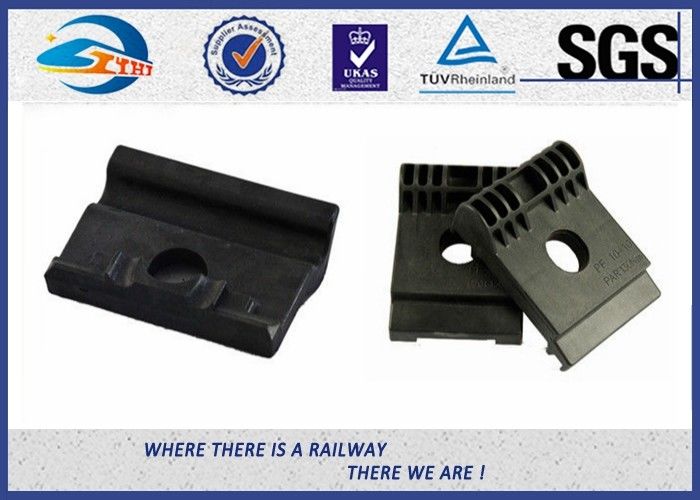

Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors 2
