Railway Sleeper Screws Hexagon in Railroad , Track Hex Head Screw

Basic Information
Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: custom-made
Minimum Order Quantity: 5000 pcs
Price: negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 15-30 work days after getting payment
Payment Terms: T/T or L/C
Supply Ability: 600,000 pcs per month
Product Name: Screw Spikes Application: Track
Grade: 4.6, 5.6, 8.8, 10.9 Material: Q235, 35#, 45#, 40Cr
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Standard: ISO898-1, UIC864-1, And NF F500-50
Sample: Available Brand: Zhongyue
High Light:

stainless steel coach screws

,

railway sleeper fixing screws

Railway Sleeper Screws Hexagon in Railroad, Track Hex Head Screw​







ZHONGYUE can supply a range of rail sleeper screw spikes manufactured to international standards according to BS, ASTM and DIN, among others. ZHONGYUE has extensive experience in the rail industry and a high level of expertise in this specialized field. ZHONGYUE can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.



Rail sleeper screw spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the rail sleeper screw is used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.



The screw spike costs more to manufacture than the dog spike or dog nail, but has the advantage of greater fixing power; approximately twice that of a dog spike, and can be used in combination with spring washers.




Material



Material
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties

Tensile strength:

≥400Mpa

Tensile strength:

≥500Mpa

Tensile strength:

≥800Mpa

Tensile strength:

≥1000Mpa

Yield strength:

≥240Mpa

Yield strength:

≥300Mpa

Yield strength:

≥640Mpa

Yield strength:

≥900Mpa

Elongation:

≥22%

Elongation:

≥20%

Elongation:

≥12%

Elongation:

≥9%

Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing



Note ( 8.8 as a sample)

the first 8: tensile strength of material 45# is 800MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material 45# is 800MPa x 0.8 = 640 MPa.


MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement





Process

  1. Raw material
  2. Wiredrawing
  3. Cutting
  4. Head forming

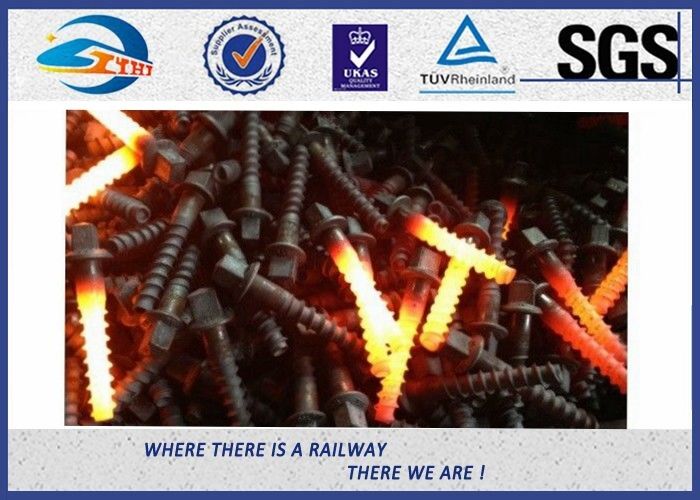

  5. Heat treatment
  6. Surface treatment
  7. Final inspection
  8. Packing
  9. Shippment.



Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine



Package



1. 25kg per double layer woven bag+ free fumigation wooden pallet

    36bags/pallet, 24pallets/container

2. Keg

3. in according with your request




Sale Range

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper


Quotation necessity ( the more, the better )

  1. Standard
  2. Model
  3. Material
  4. Length ( m/pc)
  5. Order quantity ( m or MT)

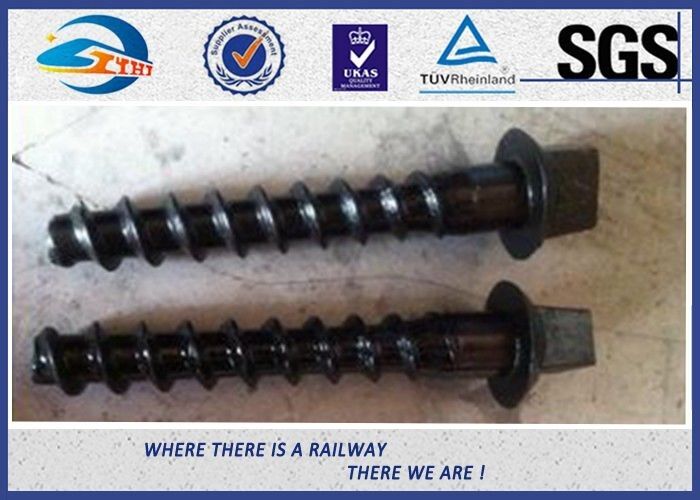

Railway Sleeper Screws Hexagon in Railroad , Track Hex Head Screw 0

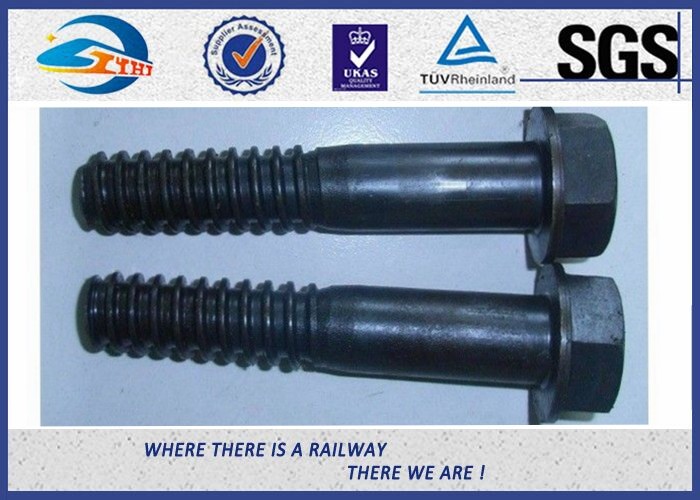

Railway Sleeper Screws Hexagon in Railroad , Track Hex Head Screw 1

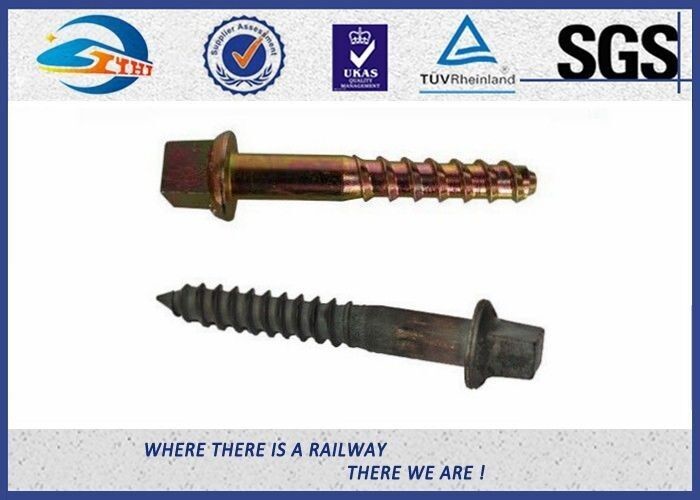

Railway Sleeper Screws Hexagon in Railroad , Track Hex Head Screw 2

If you have any other models of rail/ rail fastener, welcome to contact me.
