Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: SUYU60
Minimum Order Quantity: 10000 pcs
Price: 0.2-0.8 USD per piece
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 20-30 days after placing the formal order
Payment Terms: L/C, T/T
Supply Ability: 375 tons per week
Product: HDPE Plastic Sleeves Color: White, Yellow, Black, Dark Brown
Material: HDPE, Or PA66 Size: 24x165, 24x135, Or Customized
Surface: Plain (Oiled) Application: In Concrete Sleeper With Sleeper Screws To Fix The Rail
High Light:

rubber track pads

,

rail insulator

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color



General Introduction of HDPE Plastic Sleeves



HDPE Plastci Sleeves is used to fasten rails. Together with the screw spikes, it gives more strength to ensure that rail is fixed firmly. It is put in concrete railroad ties and the material is usually HDPE or PA66.



Material Specification (HDPE)

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g/

0.95-0.98

0.95

2

Tensile strength

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting point

°C

170-190

190

5

Insulation resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)



Material Specification (PA66): Nylon 66.69%, glass fiber 30%, other 1%

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g

1.3—1.45

1.45

2

Tensile strength

Mpa

≥170

178

3

Elongation

%

≤4.4

4.0

4

Bending Strength

Mpa

≥250

290

5

Impact Strength(No gap)

KJ/m2

≥80

85

6

Melting point

°C

250°C—270

270

7

Insulation resistance

Ω

≥1×108

5×108

8

Glass fiber content

%

30—35

35

9

Hardness

HRR

≥110

118

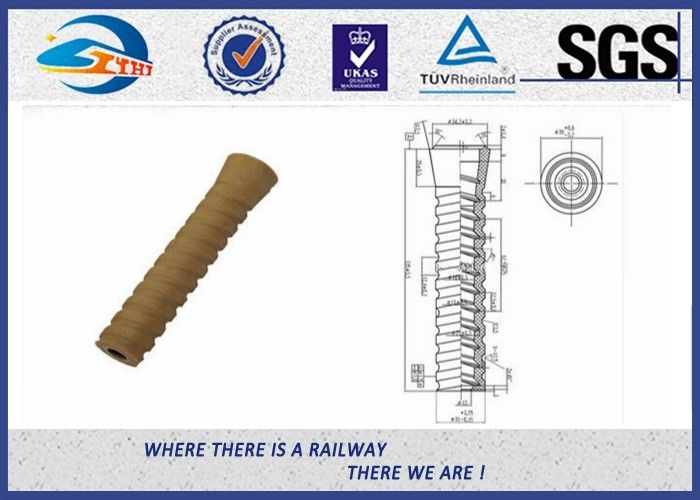

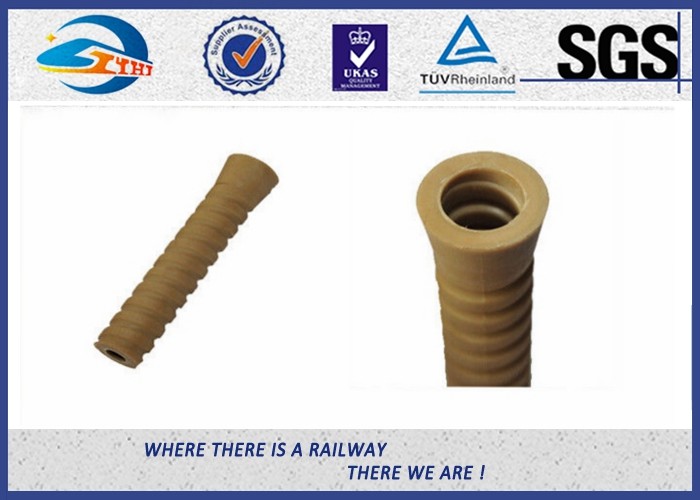

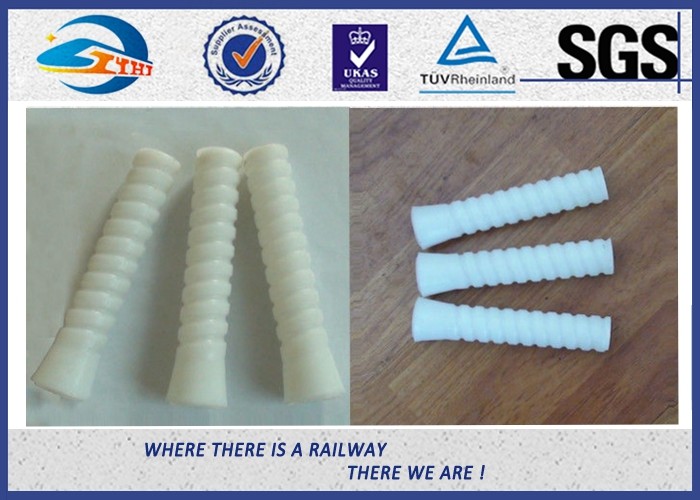

Product Photos for Reference





Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color 0

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color 1

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color 2



Factory

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color 3



Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color 4

  Certificate

Railway HDPE Plastic Sleeves In Concrete Ties White Or Yellow Color 5
