SGS 6 Hole Railway Fish Plate For Connecting Rails with Hot rolled steel

China SGS 6 Hole Railway Fish Plate For Connecting Rails with Hot rolled steel supplier

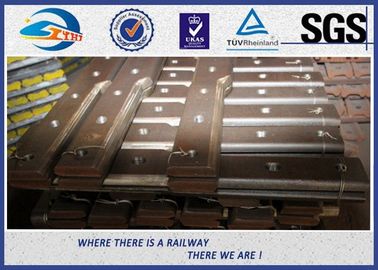

Large Image :  SGS 6 Hole Railway Fish Plate For Connecting Rails with Hot rolled steel

Product Details:

Place of Origin: Kunshang City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, ISO9001:2008, TUV
Model Number: SUYU203

Payment & Shipping Terms:

Minimum Order Quantity: 3000 pcs
Price: 0.5-2 USD per pc
Packaging Details: Double-layer woven bag with fumigation-free wooden pallet or wooden box
Delivery Time: 20-30 days after placing order
Payment Terms: L/C, T/T
Supply Ability: 1000 Tons per month
Detailed Product Description
Product: Railway Joints Bar Quality Control: SGS, BV, ABC
Type: 6-Hole Or 4-Hole Material: 50#
Production Process: Rolled Or Cast

SGS 6 Hole Railway Fish Plate For Connecting Rails with Hot rolled steel



General Introduction

Hot rolled from high quality steel, accurately cut to lengths required and accurately punched to suit
proper bolt hole configurations. Stamped identifications to provide ease of installation, proper application
and quality identification for traceability.


Specifications

Standard Specifications for Quenched Carbon Steel Joint Bars: A joint (or pair) consists of two bars
without bolts. The opening between the rails is 1/8″. Bolt holes are alternately round and oval. Heat
treating consists of heating and oil quenching. Surface preparations such as shot blasting and painting
are available.


Capabilities Include
1. American Railway Engineering & M/W Association (AREMA) Specifications including carbon steel
or micro alloy steel materials.
2. Short toe on all rail sections.
3. Standard or Special Punching.
4. All rail sections available from typical sections, or fabricated and machined from steel plate (including
girder rail and crane rail).
5. Used for: Railroad – Transit – Industrial – Mining – Export


Technical Parameter For Reference

Brand

ZHONGYUE

Name

Joint bar s49

Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#

Chemical composition(%):
C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:0.035,
S:0.035




50#

Chemical composition(%):
C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:0.035,
S:0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Φ26

18.07

UIC60

4 hole-600/ Φ26

17.47

UIC60

4 hole  - 630/ Φ25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 /  Φ26

13.23

BS90A

792.9/ Φ26.2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71

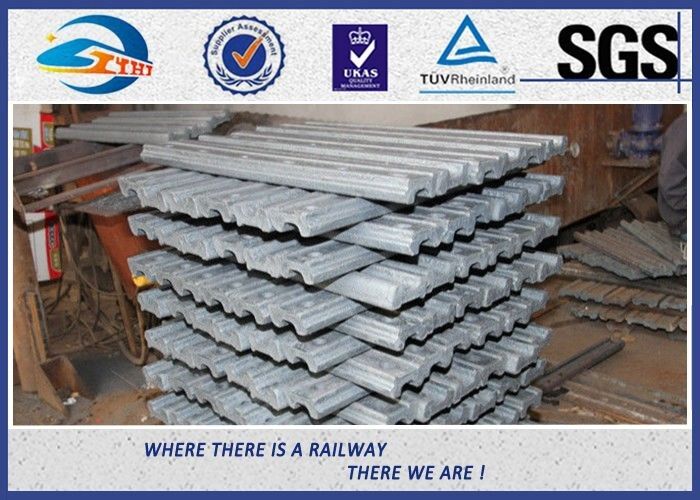

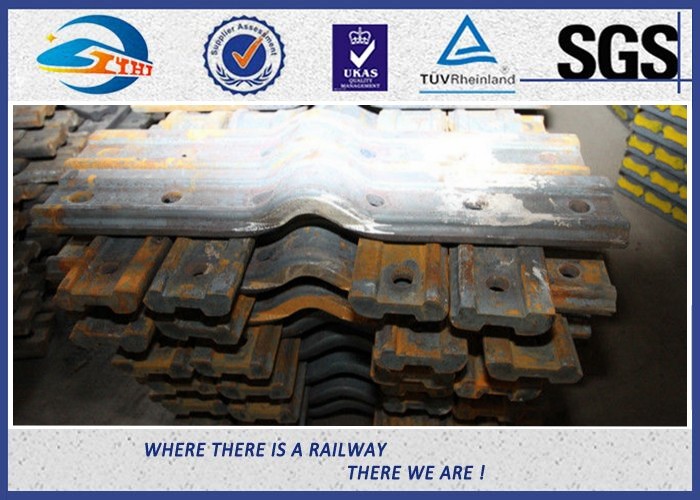

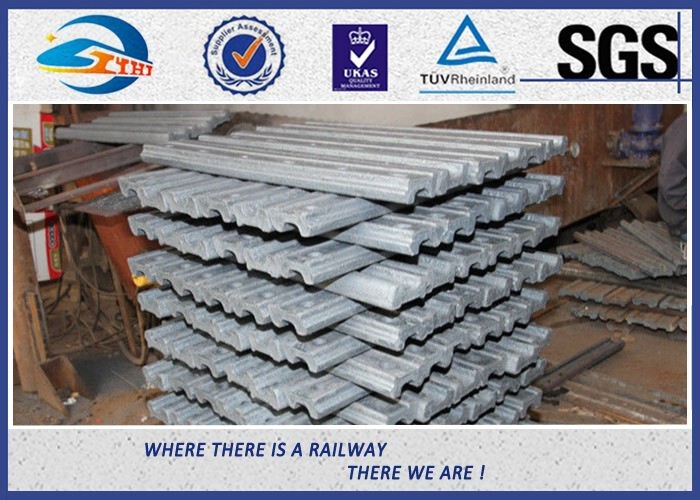

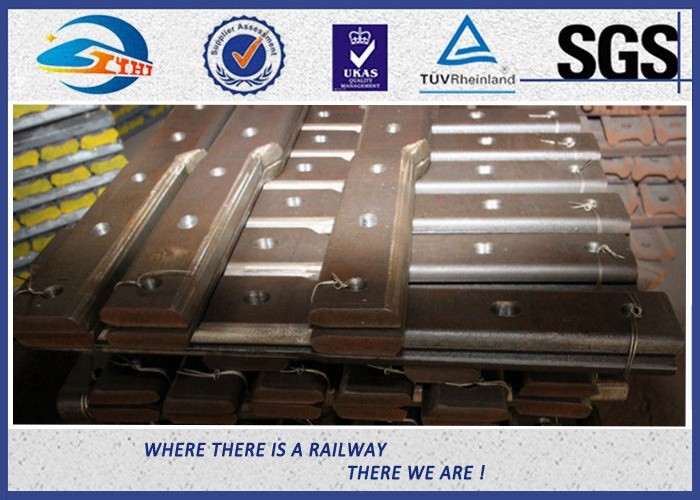

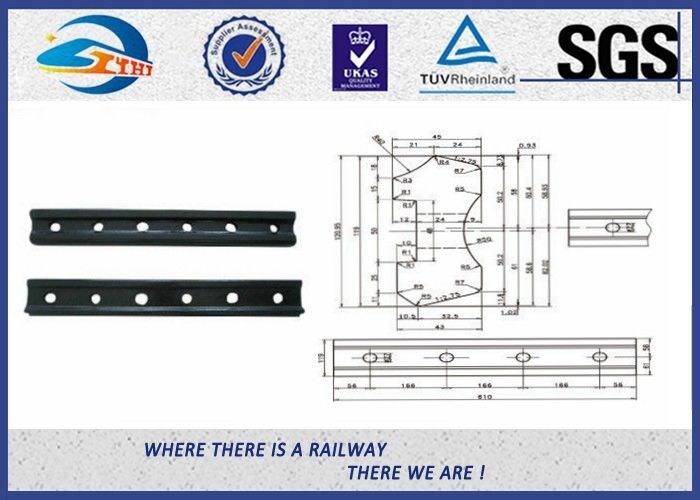

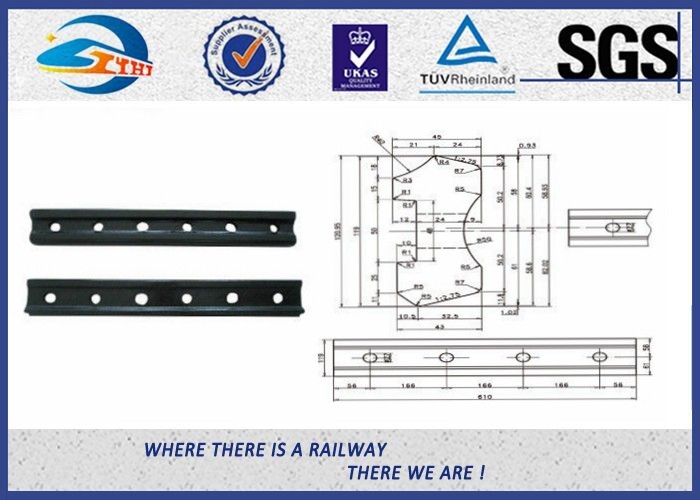

Product Photos for reference
SGS 6 Hole Railway Fish Plate For Connecting Rails with Hot rolled steelSGS 6 Hole Railway Fish Plate For Connecting Rails with Hot rolled steelSGS 6 Hole Railway Fish Plate For Connecting Rails with Hot rolled steel
