Plain Inserts Rail Clips Casting Iron Rail Shoulder Concrete Sleepers

Basic Information
Place of Origin: Kunshan, Jiangsu, China
Brand Name: ZHONGYUE
Certification: SGS, ISO9001:2008, TUV
Model Number: SUYU-62
Minimum Order Quantity: 3 Tons
Price: 0.5-4.5 USD per piece
Packaging Details: 25kg double-layer woven bag, free fumigation wooden pallet. 36 bags or cartons /pallets , 24pallets/container
Delivery Time: 20-30 days after placing order
Payment Terms: L/C, T/T
Supply Ability: 250 Tons per week
Product: Plain Inserts Rail Clips Casting Iron Rail Shoulder Concrete Sleepers Material: QT500-7,QT450-10, QT400-15, 45#, QT500-7
Sample: Available Surface: Plain
Manufacturing Process: Made Of Precoated Sand, Casting
High Light:

railway fastening system

,

railway shoulder

Plain Inserts Rail Clips Casting Iron Rail Shoulder Concrete Sleepers







Inserts/Iron Shoulders are cast in the concrete ties for fixation of Elastic Rail Clips. Our Iron Shoulders are
manufactured from pearlitic malleable iron and spheroid graphite iron. We offer two types of Iron Shoulders:
Single Stem Iron Shoulders mostly used in pre-stressed concrete ties, and Twin Stem Iron Shoulders
commonly used in Bi-Block or Twin Block concrete ties.


Technical Specifications

BrandZhongYue
ProductRailway iron shoulder
ApplicationUIC54UIC60115RE,ect
Material
NameQT500-7QT450-10QT400-15
StandardGB 1348-88GB 1348-88GB 1348-89
Chemical composition(%)C:3.60-3.80C:3.40-3.90C:3.50-3.60
Mn:≤0.6Mn:0.2-0.5Mn:≤0.5
Si:2.50-2.90Si:2.70-3.00Si:3.0-3.2
P:≤0.08P:≤0.07P:≤0.07
S:≤0.025S:≤0.03S:≤0.02
Tensile Strength≥500 Mpa≥450 Mpa≥400 Mpa
Yield Strength≥320 Mpa≥310 Mpa≥250 Mpa
Elongation(%)≥7≥10≥15
Hardnrss170~230HB160~210HB130~180HB
Metallographic organizationferrite + pearlitegraphite + ferrite + pearliteferrite
Surfaceplain (oiled)



Advantage:
We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.


Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC

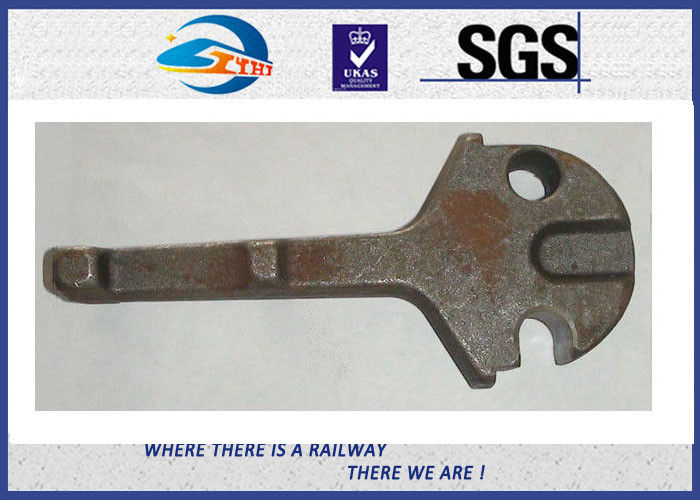

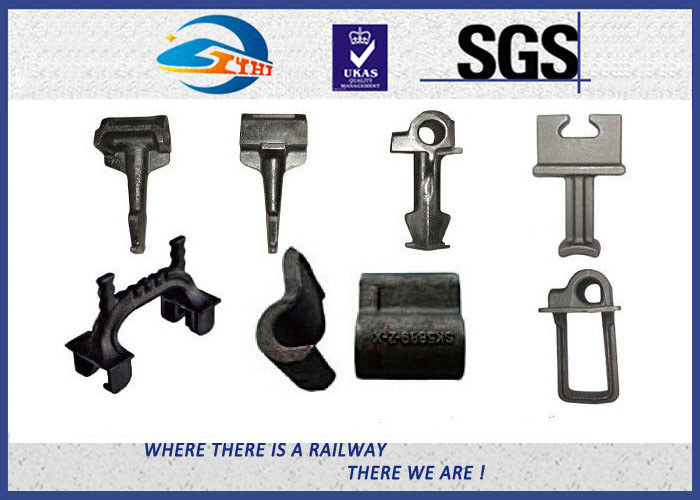

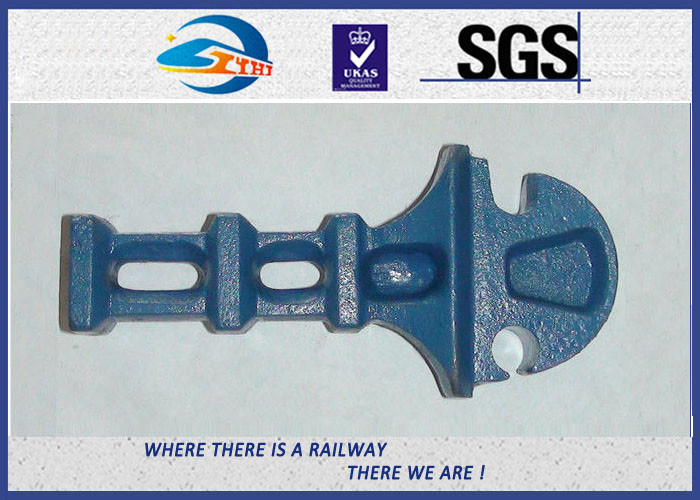

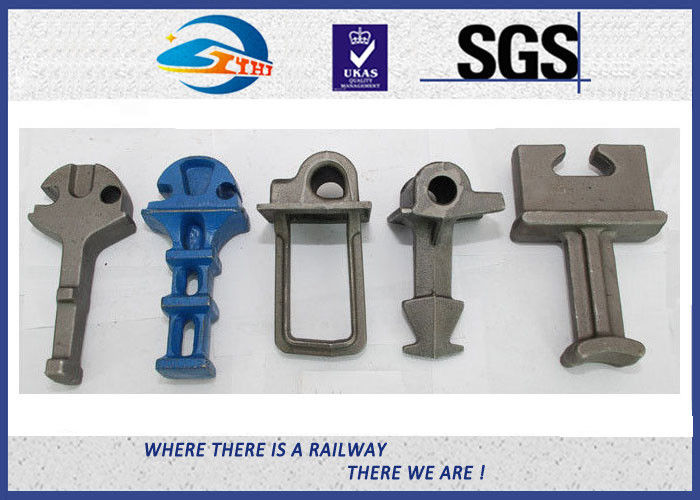

Plain Inserts Rail Clips Casting Iron Rail Shoulder Concrete Sleepers 0Plain Inserts Rail Clips Casting Iron Rail Shoulder Concrete Sleepers 1Plain Inserts Rail Clips Casting Iron Rail Shoulder Concrete Sleepers 2
