High Tensile Railroad Track Spikes / Screw Studs Spikes for Vossloh Fastening System

China High Tensile Railroad Track Spikes / Screw Studs Spikes for Vossloh Fastening System supplier

Large Image :  High Tensile Railroad Track Spikes / Screw Studs Spikes for Vossloh Fastening System

Product Details:

Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: ISO9001:2008, SGS
Model Number: Track Spike

Payment & Shipping Terms:

Minimum Order Quantity: 5000 pieces
Price: 0.2-1.0 USD per piece
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 20-35 days after placing the order
Payment Terms: L/C, T/T
Supply Ability: 150 tons per week
Detailed Product Description
Product: Black Oxide Track Spike Material: Q235
Surface: Oxide Black Application: Used On Wooden Sleepers
Mateial Standard: Ss-EN10025

High Tensile Railroad Track Spikes / Screw Studs Spikes for Vossloh Fastening System

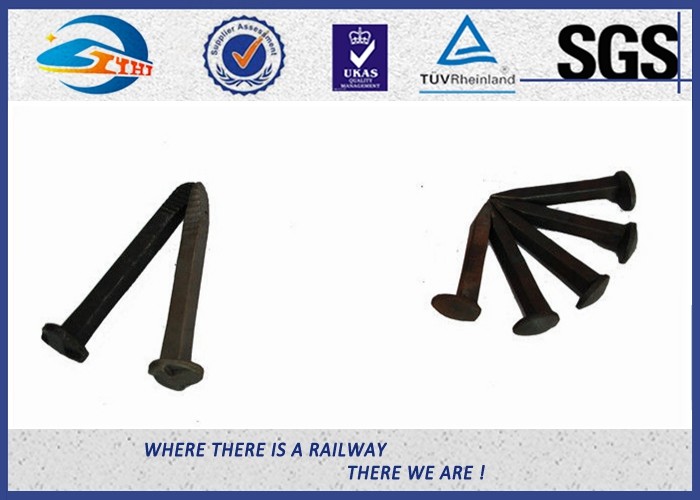

General Intoduction of Track Spike







High Tensile Railroad Track Spikes / Screw Studs Spikes for Vossloh Fastening System



Zhongyue specialize in producing rail fastening , track spikes are our main products, which is in accordance to DIN/GOST/ AREMA /GB/TB standard , below is some of our main products .

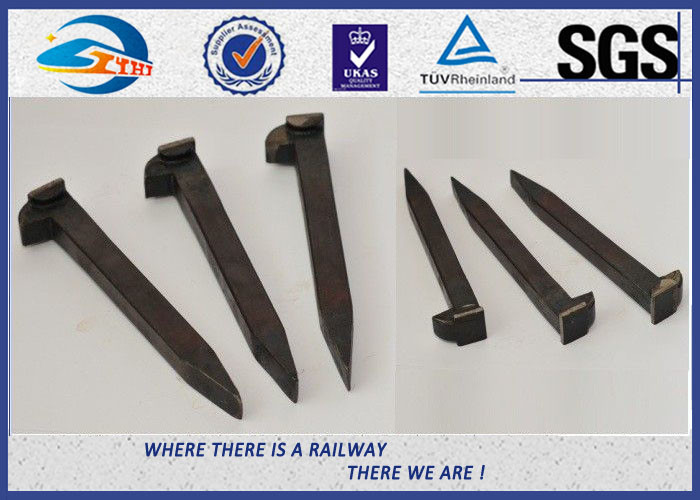

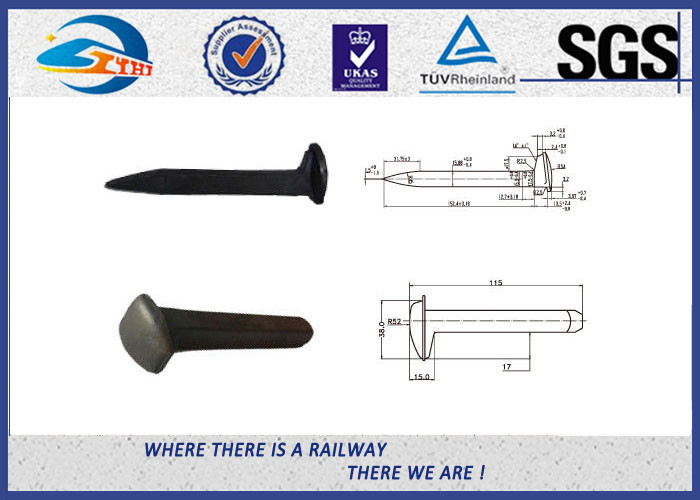

1. Track spikes are manufactured to ARMEA specifications in both soft steel and high tensile grade

Size

Weight(Kg)

Square 3/8"×3"

0.069

Square 3/8"×3-1/2"

0.078

Square 1/2"×4-1/2 "

0.165

Square 5/8"×5-1/2"

0.34

Square 5/8"×6"

0.375

With regard to the high tensile grade of the USA AREMA specification, the material is the medium carbon steel; therefore, the chemical composition and mechanical properties should be as follows:





   C

Mn

Si

P

S

0.17 - 0.25%

0.9 - 1.35%



0.35 Max



0.04% Max



0.05 Max







Tensile strength

Yield point

Elongation (in 2" length sample)

70,000 psi Min

46,000 psi Min

25% Min



 2. Boat spikes are available both galvanized and black , common size are below :

 3/8"×6" . 3/8"×8" . 3/8"×10" . 1/2"×10" . 1/2"×12" .



3. Rail spikes are used for BS80LBS.75LBS & 90LBS rails , in addition to our normal products , their shape and dimension can be produced and designed according to the specification of our customers . Their size can be 12mm .13mm.16mm , the length can be adjusted to client requirement .



4. Dog spike with square shank as per AS1085.8 ,16mm square .19mm square &22mmsquare are available and round shank 16mm .19mm &22mm for Australia Market .



5. Special rail spike are also available , such as 12×12 ×120. 14×14×140 .16×13×150 .



6. We also can produce the lock spike with many sizes according to our customers' requirement .



As a leading manufacturer of rail fastening in China , SUYU also can produce many other railway fasteners , such as track bolt . Sleeper screw . rail anchor .rail joint bar . tie plate .rail clips ,elastic rail clip .SKL tension clamp .rail shoulder and so on .



Sticking to the “quality first” policy, SUYU pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.

High Tensile Railroad Track Spikes / Screw Studs Spikes for Vossloh Fastening System

 We can provide products as following :

1. E clip

  Type :e1609. e1809. e1817. e2055. e2056. e2009. e2001. e2006. PR401. PR309....

  Raw material : 60Si2MnA
  Surface : plain (oil ). black paint . colour paint .zinc .hdg etc.
2. Rail clip/Tension clamp

  Type : skl1. skl3. skl12. skl14
  Raw material : 38Si7. 60Si2CrA
  Surface: plain (oil ). black paint . colour paint . zinc .hdg etc.
3. Screw spike/Sleeper screw

  Type : Ss5. Ss8. Ss25 . Ss36 ... all kinds available according to customers drawings and samples .
  Raw material : Q235. 35#.45# . 40Mn2. 20Mnsi
  Grade : 4.6.5.6.8.8
  Surface: plain (oil ). black . zinc .hdg etc.
4. Dog spike/Railroad spike

  Type : All kinds available available according to customers drawings and samples .
  Raw material : Q235 .
  Surface : plain (oil)
5. Clip bolt/ T bolt /Rail bolt/Clamp bolt /Inserted bolt/Track bolt/Fish bolt/Square bolt

  Type : All kinds available available according to customers drawings and samples .
  Raw material: Q235. 35#.45# . 40Mn2. 20Mnsi .35CrMo. 40Cr. 42CrMo
  Grade : 4.6.4.8.5.6.8.8.10.9.12.9
  Surface : plain (oil ). black . zinc .hdg etc.
6. Tie plate /Base plate /Rail plate/Rail fixing base

  Type : All kinds available according to customers drawings and samples .
  Raw Material : QT400-15 .QT450-10 .QT500-7. ZG25 .ZG35. ZG45
  Surface : plain (oil)
7 .Fish plate /Joint bar

  Type : Many kinds available
  Raw material : 45# .50#
  Surface : Plain (oil)
8. Clamp plate/Rail clamp/Anchor plate

  Type : KPO3. KOP06 All kinds available according to customers drawings and samples
  Raw material : Q235.45#
  Surface : plain (oil ). black paint . zinc .hdg etc.
9 . Rail pad

  Type : All kinds available according to customers drawings and samples
  Raw material : EVA
  Surface : plain
10. Plastic dowel /Guide plate

  Type : All kinds available according to customers drawings and samples
  Raw material : PA66
  Surface : plain
11. Rail Shoulder

  Type : All kinds available according to customers drawings and samples
  Raw material : QT400-15 .QT450-10 .QT500-7
  Surface : Plain
