W14 Fastening Casing Plastic Dowel For Railway , Screw Anchor Dowel

Basic Information
Place of Origin: Jiangsu,China
Brand Name: ZHONGYUE
Certification: ISO,DIN,
Model Number: Plastic dowel
Minimum Order Quantity: 1000 pieces
Price: $0.1-$0.5
Packaging Details: Export Carton or as customer requirement
Delivery Time: 15-30days after order confirmation
Payment Terms: L/C, T/T
Supply Ability: 2000T per month
Material: Plastic Brand Name: Zhongyue
Dimensions (L X W X H) (mm):: According To Drawing Or Samples QC: ISO,TUV
Specification: According To Drawings Application: Plastic Dowel
Warranty: 3 Years Customized: According To Drawings
High Light:

railway parts

,

rail insulator

W14 Fastening Casing, Plastic Dowel For Railway, Screw Anchor Dowel







HDPE

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g/

0.95-0.98

0.95

2

Tensile strength

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting point

°C

170-190

190

5

Insulation resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)



PA66 : Nylon 66.69%, glass fiber 30%, other 1%

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g

1.3—1.45

1.45

2

Tensile strength

Mpa

≥170

178

3

Elongation

%

≤4.4

4.0

4

Bending Strength

Mpa

≥250

290

5

Impact Strength(No gap)

KJ/m2

≥80

85

6

Melting point

°C

250°C—270

270

7

Insulation resistance

Ω

≥1×108

5×108

8

Glass fiber content

%

30—35

35

9

Hardness

HRR

≥110

118



Samples:

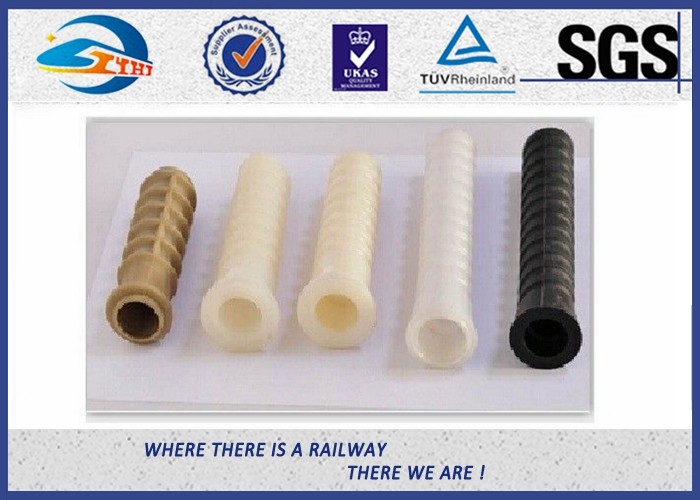

W14 Fastening Casing Plastic Dowel For Railway , Screw Anchor Dowel 0

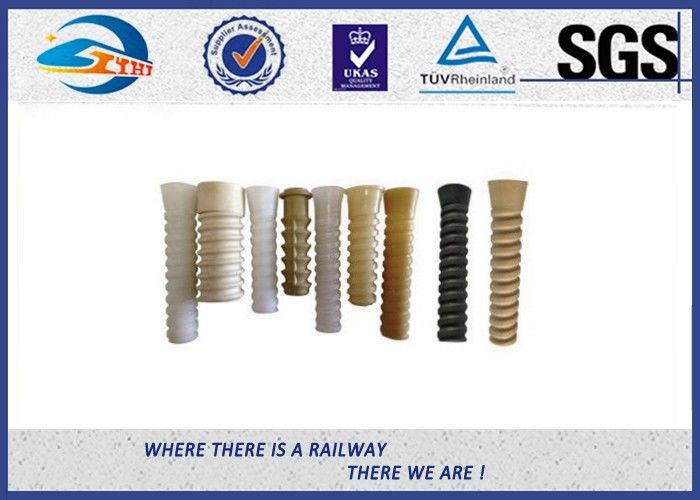

W14 Fastening Casing Plastic Dowel For Railway , Screw Anchor Dowel 1



Drawing:

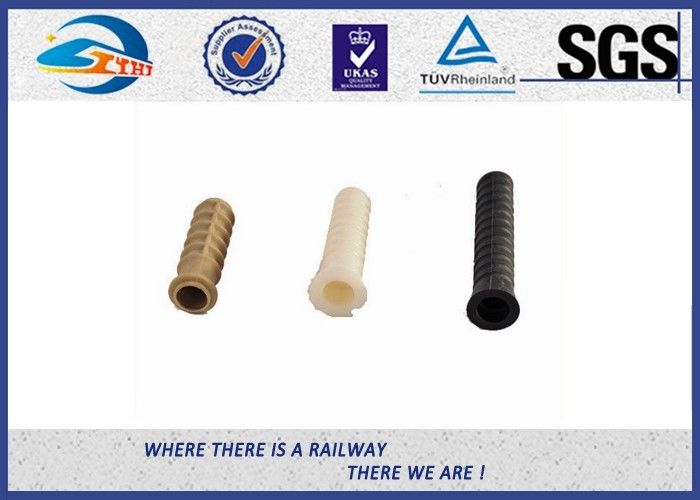

W14 Fastening Casing Plastic Dowel For Railway , Screw Anchor Dowel 2





Package:

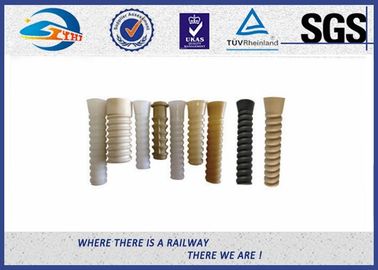

W14 Fastening Casing Plastic Dowel For Railway , Screw Anchor Dowel 3





Application:

Pressed in concrete sleeper with sleeper screws to fix the rail.

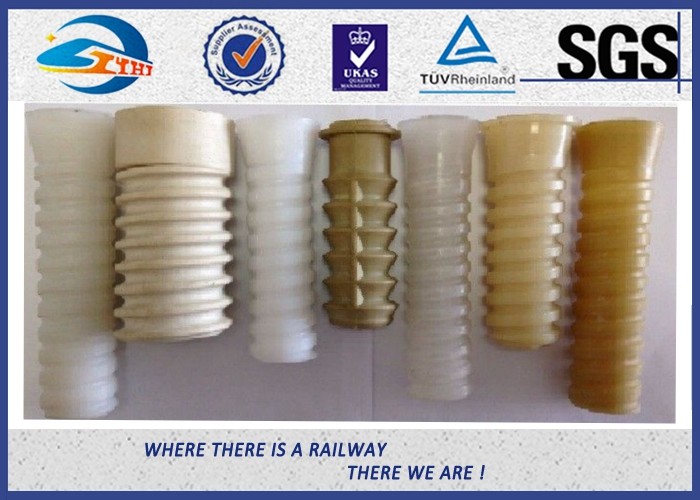

W14 Fastening Casing Plastic Dowel For Railway , Screw Anchor Dowel 4
