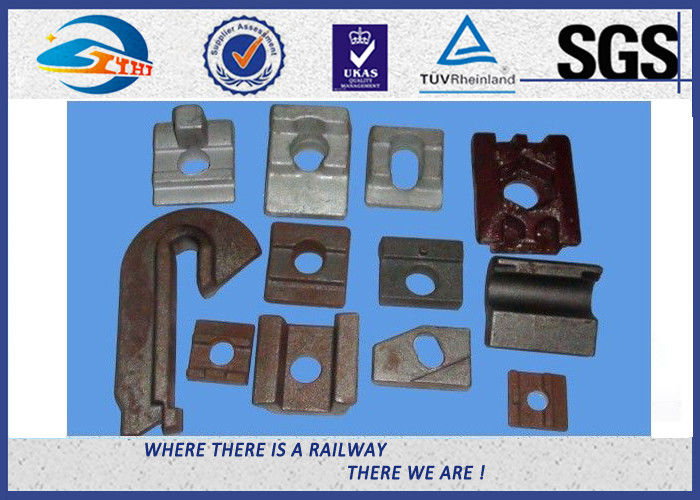

KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts

China KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts supplier
KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts supplier KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts supplier KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts supplier KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts supplier

Large Image :  KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: KP / KPO

Payment & Shipping Terms:

Minimum Order Quantity: 5000 sets
Price: negotiatiable
Packaging Details: according to clients' requirement
Delivery Time: 10-30 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 500,000 sets per month
Contact Now
Detailed Product Description
Product Name: Rail Fastening System Application: Railway
Similarity: E / Nabla / SKL / Fist Sample: Available
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet

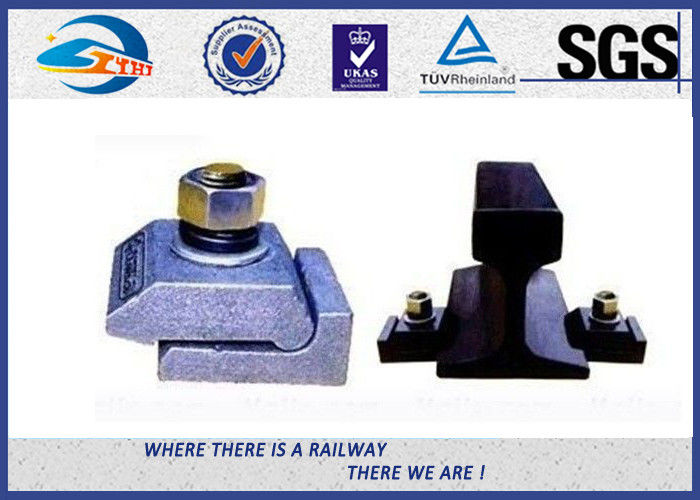

KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts​




KPO Clamp Rail Fastening System

KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts



Technical Parameters



Part name

Type

Material

Finish

Remark

KPO clip

KPO3, KPO6, KPO9

Q235

Plain oiled

Standard: DIN5906

HS bolt

HS26, HS32

Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized

Diameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: UIC864-2

Hex nut

As ordered

Grade 5: 35#
Grade 8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: DIN985

Double coil spring washer

As ordered

65Mn

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: UIC864-3

screw spike

M24×150mm
M24 ×160mm
M24 ×180mm
other length

Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized.

Standard: ISO898-1,

UIC864-1

NF F500-50

Base plate

UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size

Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel

Plain oiled

Standard: UIC864-6

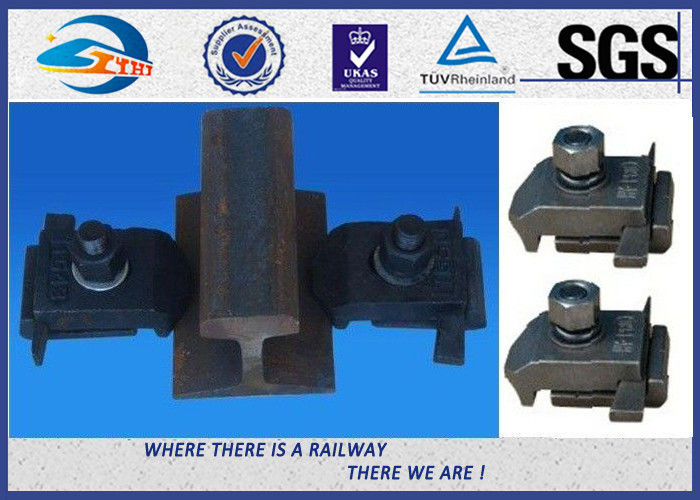

Breakdown Drawing

KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts



Material



Material
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa Tensile strength:≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%
Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing



Note ( 8.8 as a sample)

the first 8: tensile strength of material 45# is 800MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material 45# is 800MPa x 0.8 = 640 MPa.





Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG



Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine



Package

1. 25kg per double layer woven bag+ free fumigation wooden pallet

    36bags/pallet,

    24pallets/container

2. Keg

3. in according with your request

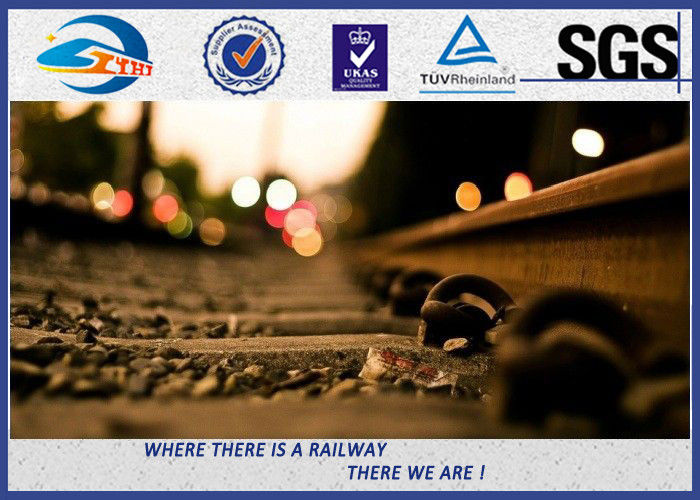

Application



KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts





Similarity



  1. E CLIP SYSTEM
  2. NABLA SYSTEM
  3. SKL 1 / 2 / 3 / 12 / 14 CLIP SYSTEM
  4. FIST CLIP SYSTEM
  5. SPECIAL CLAMP SYSTEM

KP ISO Custom made Railroad Fasteners System with Clamp as Track Parts
