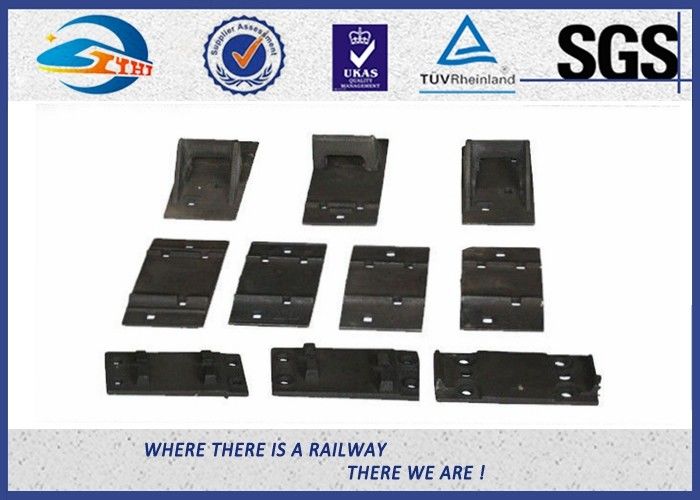

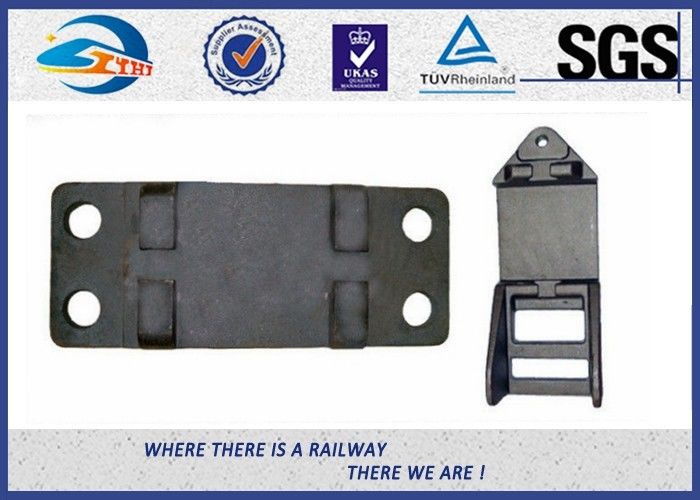

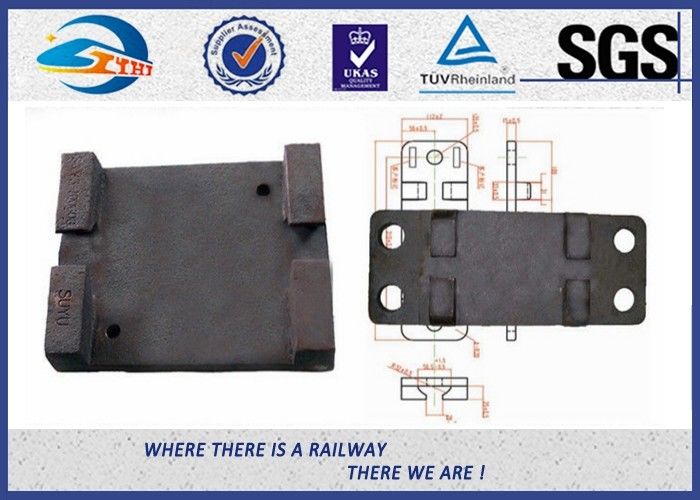

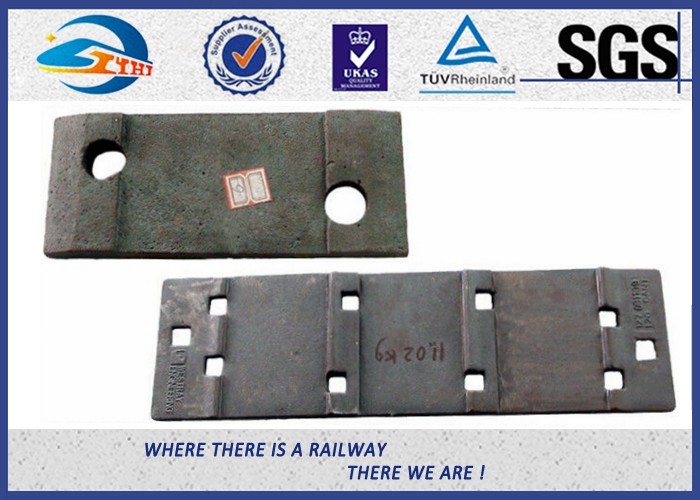

Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners

China Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners supplier
Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners supplier Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners supplier Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners supplier Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners supplier

Large Image :  Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners

Product Details:

Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: S49

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs
Price: USD1450/ton
Packaging Details: 25kg/woven bag, 36bags/pallet, 24pallets/ container
Delivery Time: 20 - 35 days according to your order quantity
Payment Terms: T/T, L/C
Supply Ability: 10,000pcs per week
Contact Now
Detailed Product Description
Name: Tie Plate, Guide Plate, Base Plate Model: Qt400-15. Qt450-10. Qt500-7. Zg25. Zg35. Zg45
Sample: Available Surface: Plain (oiled), Color Paint. Oxide Black. Galavazing, DHG
Customization: Available

Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners



Material: carbon steel



1.QT500-7
2.QT450-10
3.QT400-15
4. low carbon steel or high carbon steel by forged
5. Low carbon steel S275JR, Q235,etc. by rolled

Production Process

1. Raw material
2. forging or casting (1100 degrees celsius)
3. Forming
4. Hardening
5. Tempering below 350 degrees celsius
6. Inspection
7. Packing

Surface Treatment

1. Plain (oiled) (main)
2. Color paint
3. Oxide Black
4. Galavazing
5. DHG

Application system

1. KPO Rail fatsening
2. SKL3  Rail fatsening
3. SKL12 Rail fatsening
4. Other


Name QT500-7 QT450-10 QT400-15
Standard GB 1348-88 GB 1348-88 GB 1348-89
Chemical composition(%) C:3.60-3.80 C:3.40-3.90 C:3.50-3.60
Mn:≤0.6 Mn:0.2-0.5 Mn:≤0.5
Si:2.50-2.90 Si:2.70-3.00 Si:3.0-3.2
P:≤0.08 P:≤0.07 P:≤0.07
S:≤0.025 S:≤0.03 S:≤0.02
Tensile Strength ≥500 Mpa ≥450 Mpa ≥400 Mpa
Yield Strength ≥320 Mpa ≥310 Mpa ≥250 Mpa
Elongation(%) ≥7 ≥10 ≥15
Hardnrss 170~230HB 160~210HB 130~180HB
Metallographic organization ferrite + pearlite graphite + ferrite + pearlite ferrite
Surface plain (oiled)



Raw material Plain Surface Steel Tie Plate For Fixing Rail Fasteners
