Composite And Casting Railway Brake Blocks High Friction For Braking

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Cast Iron Brake Shoe
Minimum Order Quantity: 2000pcs
Price: Negociable
Packaging Details: wood box / cutomized
Delivery Time: 15-30 work days after getting payment
Payment Terms: T/T, 30% in advance
Supply Ability: 30,000 pcs per month
Product Name: Brake Block / Brake Shoes Application: Heavy Duty Truck.Train
Type: Customized Material: Cast Iron HT200, HT350
Surface: Plain (oiled), Colored Standard: GB/T 9439-1988
High Light:

composite brake block

,

anchor brake shoe

Composite And Casting Railway Brake Blocks High Friction For Braking​



HS: 86082 9000



Application:Heavy Duty Truck.Train.Bus,Automobile,petroleum drilling machine.



Material:



1. Cast iron HT200 Refer to standard GB/T 9439-1988



2. Composite material



1) rail way composite Brake shoe Material:



Composite material,high friction composite brake shoe,low friction composite brake shoe



2) Advantage:



-- Composite friction material bearing high energy braking;



-- High coefficient of friction and stability,



-- small heat fade for coefficient of friction,



-- Temperature insensitiveness,



-- Develop according to the samples or drawings



-- Certification:ISO9001-2000



Samples:

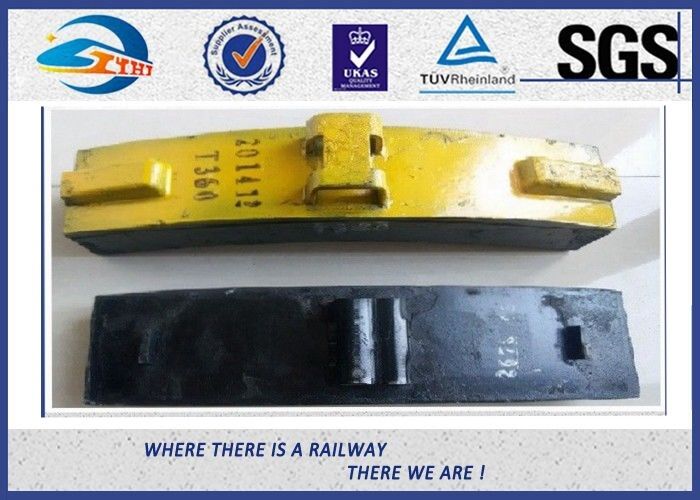

Composite And Casting Railway Brake Blocks High Friction For Braking 0





Specifications

We can provide a variety of Locomotive Brake Shoe, all of our products are qualified by ISO with high quality standard.



Locomotive Brake Shoe



The brake is fitting for the locomotive which speed is less than 100km / h

There are three types as following:

1. Grey Cast Iron

2. High Phosphorus Cast Iron

3. Alloy Cast Iron

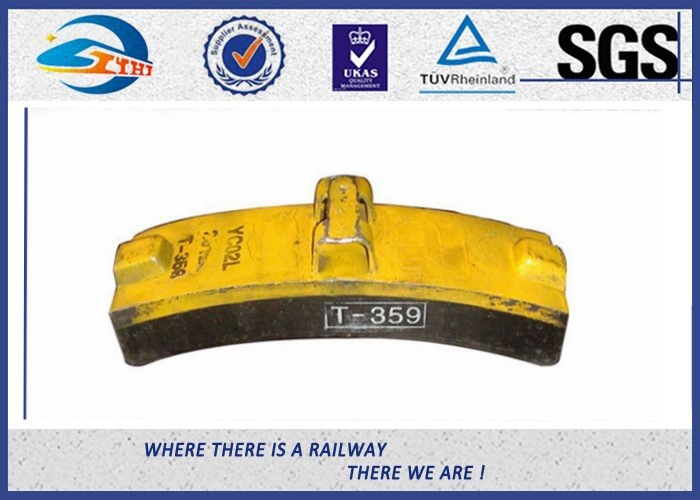

 Composite And Casting Railway Brake Blocks High Friction For Braking 1

A. The chemical composition and mechanical properties



  Material

Chemical Composition%

Tensile Strength

Mpa

Hardness

HBW10/3000

C

Si

Mn

P

Grey Cast Iron

2.9-3.5

1.8-2.2

0.6-1.2

≤1.0

≥150

179-255

High Phosphorus Cast Iron

2.8-3.6

1.5-2.2

0.8-1.2

1.3-2.0

≥150

179-255

Alloy Cast Iron

2.8-3.6

1.28-1.8

1.2-1.9

≤0.15

200-320

200-260



B. Average Friction Coefficient



Braking speed Km/H

Grey Cast Iron

High Phosphorus Cast Iron

Alloy Cast Iron

100

0.1

0.13

0.1

80

0.11

0.15

0.11





Similarity



Cast brake shoe in different types, produce on the basis of customer's drawings.



Composite And Casting Railway Brake Blocks High Friction For Braking 2



Package



Wooden box/ Pallet



Composite And Casting Railway Brake Blocks High Friction For Braking 3
