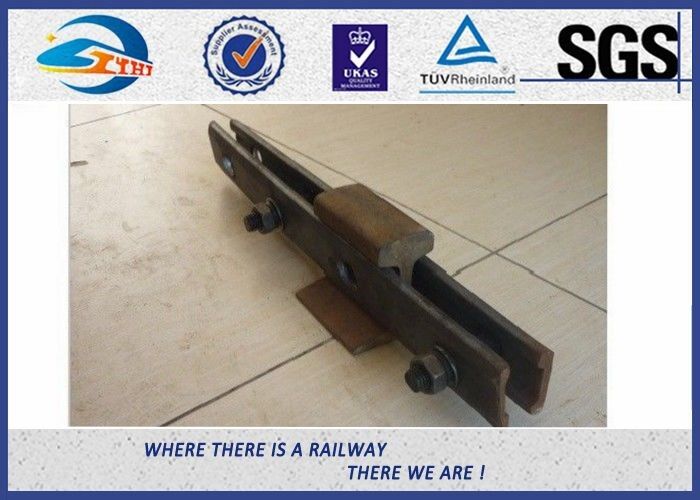

Track Railway Fish Plate Plain / Oxide Black for Standard Steel Rail

Basic Information
Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO
Model Number: QU80
Minimum Order Quantity: 1,500 pcs
Price: negotiation
Packaging Details: In bundle
Delivery Time: 10 work days after getting payment
Payment Terms: T/T or L/C
Supply Ability: 500,000 set per month
Contact Now
Product Name: Joint Bar Application: Railway / Track / Railroad
Type: QU Series Rail Material: 45#, 50#
Length: 4 Hole Surface: Plain / Oxide Black / Znic Plated
High Light:

railroad fish plate

,

steel fish plates

Track Railway Fish Plate Plain / Oxide Black for Standard Steel Rail​


Alias:

  1. Fishplate
  2. Fish plate
  3. Rail Fish plate
  4. Bar
  5. Rail Bar

Specifications:

We deal in all types of fish plate, also known as joint bar, splice bar and angle bar. We have in-house rolling, forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates are manufactured to international standards according to BS, ASTM and DIN, among others.

Types:

  1. 4-Hole
  2. 6-Hole


Suitable Rail Model

QU series: QU70 / 80 /100 120


Model Head Height Bottom Web Weight Material Length
mm mm mm mm kg/m m/pc
QU70 70 120 120 28 52.8 U71Mn 12
QU80 80 130 130 32 63.69 U71Mn 12
QU100 100 150 150 38 88.96 U71Mn 12
QU120 120 170 170 44 118.1 U71Mn 12


Adhering to our quality first policy, ZHONGYUE pays great attention to quality control management on our rail fish plate. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail fish plates are of high quality and up to customers' requirements.
As a leading manufacturer of rail fastening based in China, ZHONGYUE also produces many other railway fasteners, such as track bolt, sleeper screw, track spike, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.


Similarity


Type

Length/Diameter

Weight(Kg)

115RE

4 hole- 24 ″

17.04

115RE

6 hole -36 ″

25.56

132-136RE

4hole-24 ″

17.75

132-136RE

6hole-36 ″

26.63

UIC60

4 hole - 630/ ¢ 26

18.07

UIC60

4 hole-600/ ¢ 28

17.47

UIC60

4 hole - 630/ ¢ 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / ¢ 26

13.23

BS90A

792.9/ ¢ 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71




Application

Track Railway Fish Plate Plain / Oxide Black for Standard Steel Rail 0


Sale Rang

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper

Quotation necessity ( the more, the better )

  1. Drawing with full size ( front / side section / hole )
  2. Hole: round / oval
  3. Material : 45# / 50#
  4. Surface Treatment
  5. Order quantity

 Track Railway Fish Plate Plain / Oxide Black for Standard Steel Rail 1

Track Railway Fish Plate Plain / Oxide Black for Standard Steel Rail 2Track Railway Fish Plate Plain / Oxide Black for Standard Steel Rail 3
HS Code: 73024 00000
If you have any other models of rail/ rail fastener, welcome to contact me.
