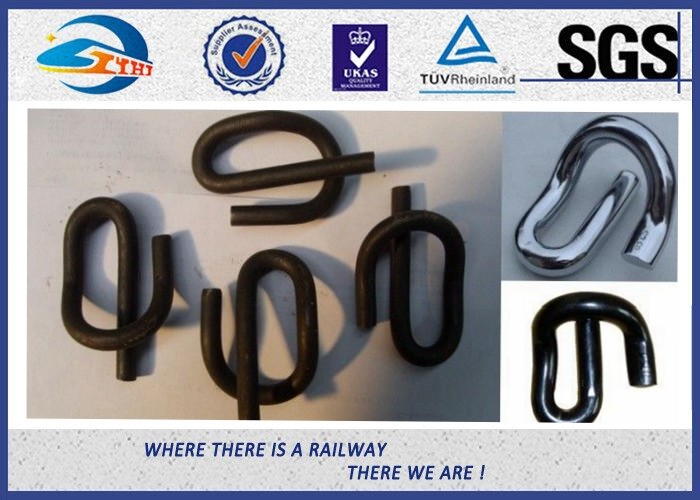

Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part

China Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part supplier
Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part supplier Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part supplier Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part supplier Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part supplier

Large Image :  Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: E type

Payment & Shipping Terms:

Minimum Order Quantity: 3 - 5 MT
Price: USD0.4 - 1.2 PC
Packaging Details: 25kg double-layer bag, 36bags/pallet, 24pallets/container or as your request
Delivery Time: 15 - 30 work days after getting payement
Supply Ability: 500,000 pcs per month
Contact Now
Detailed Product Description
Manufacturer: Zhoneyue Railway Material Co.,ltd. Material: 60Si2MnA
Surface: Plain (oiled), Oxide Black, Color , Galvanized Drawing: Designed From Client

Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part​



Commercial NameOther steel materials for railway tramway tracks

Brand: Zhongyue

SupplierZhongyue Railway Material Co.,ltd.

Address: No#199 Huanlou Road Kunshan Jiangsu P.R China

HS Code: 73029 09000

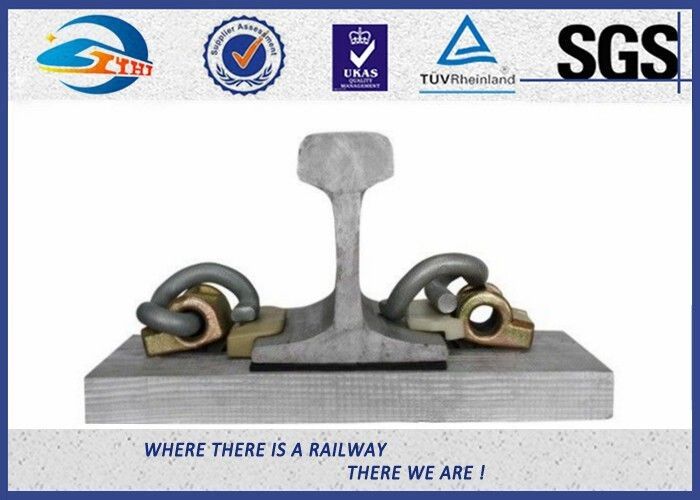

Rail fastening system

  E clip system
1 Rail clip
2 Rail shoulder
3 Insulator
4 Rail pad


Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part

Drawing  (E2009 as a sample)

Mark factor

  1. Model name
  2. Material
  3. Surface treatment
  4. Full size

Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part


Character

  1. Few, Sample Compoents
  2. Long Working Life
  3. High Safety Level
  4. Used In Turnouts And Crossing
  5. Virtually Maintenance Free
  6. No Threads To Strip Or Corrode



Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing



Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part



Material Choice: spring steel

  1. 60Si2MnA
  2. 60Si2CrA
  3. 55Si2Mn
  4. 38Si7

Technical Parameter Table of Material

SKL Series SKL1 SKL3 SKL12 SKL14
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64,  C:0.56-0.64,  C:0.52-0.60,  C:0.35-0.42,
Mn:0.60-0.90,  Mn:0.40-0.70,  Mn:0.60-0.90,  Mn:0.50-0.80,
Si:1.60-2.00,  Si:1.40-1.80, Si:1.50-2.00, Si:1.50-1.80,
Cr:≤0.35,  Cr:0.70-1.00  Cr:≤0.35
P:≤0.03,  P:≤0.03,  P:≤0.03,  P:≤0.03,
S:≤0.03 S:≤0.03 S:≤0.03 S:≤0.03
Hardness 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking

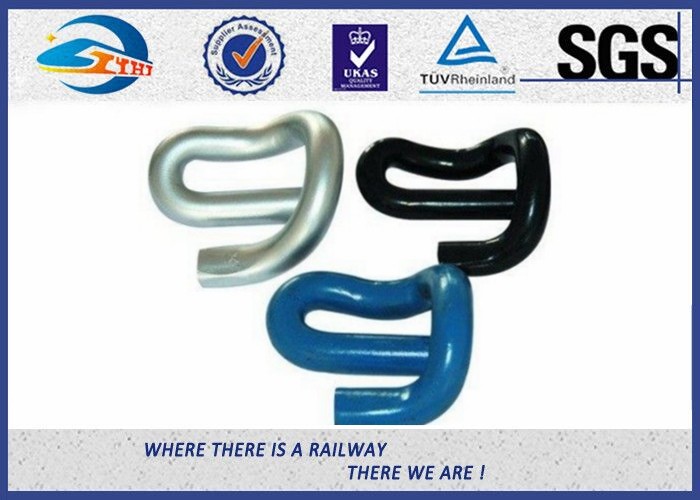

Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine


Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft


Operation
Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part

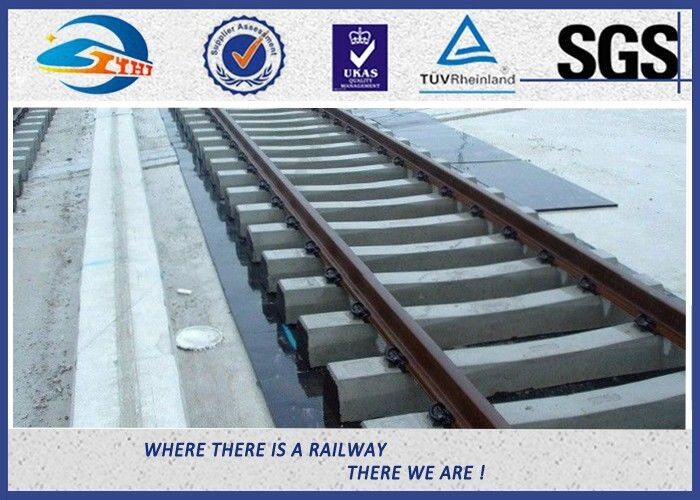

Application


Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part


Similar Elastic Clip



Same series SKL1
SKL2
SKL3
SKL12
SKL14
General series E type
Nabla type
KP / KPO type
Special series PR type
Deenik type
Russian type
Fats clip
Gauge lock clip


Customized E Elastic Rail Clips HDG Steel 60Si2MnA as Track Part



Sale Range

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper


Quotation necessity (
the more, the better )

  1. Drawing with full size
  2. Material
  3. Surface Treatment
  4. Order quantity


If you have any other models of rail/ rail fastener, welcome to contact me.
