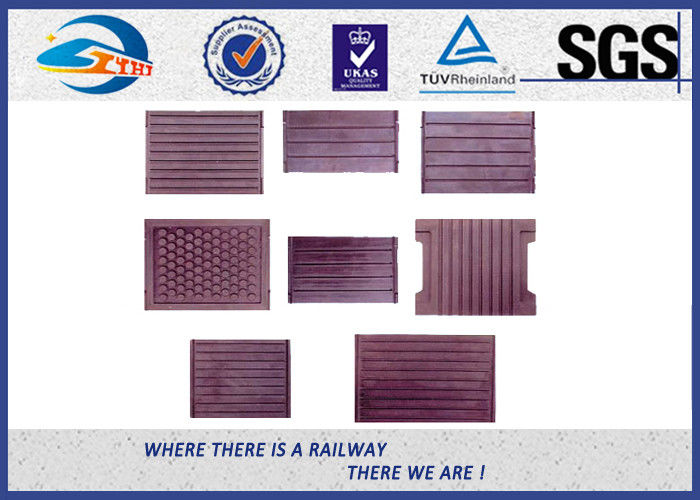

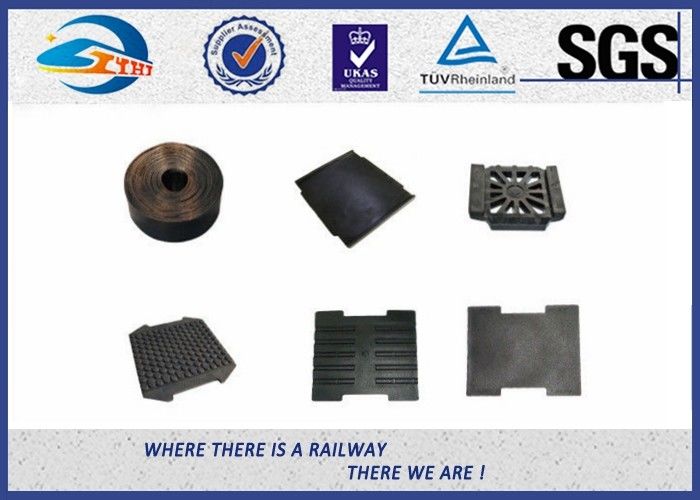

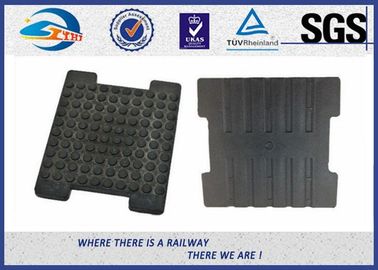

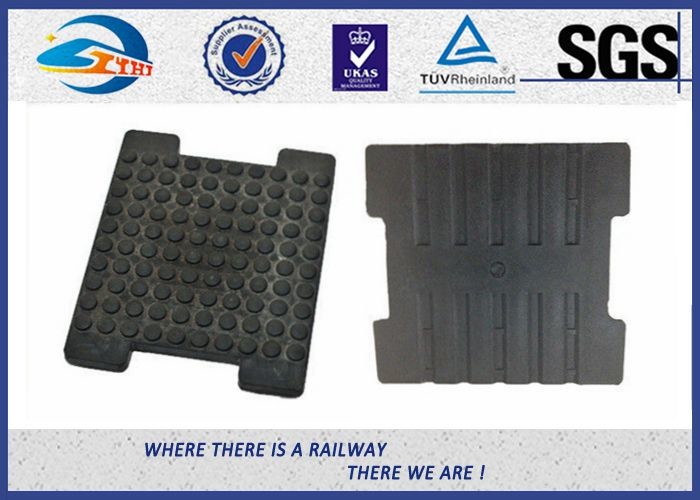

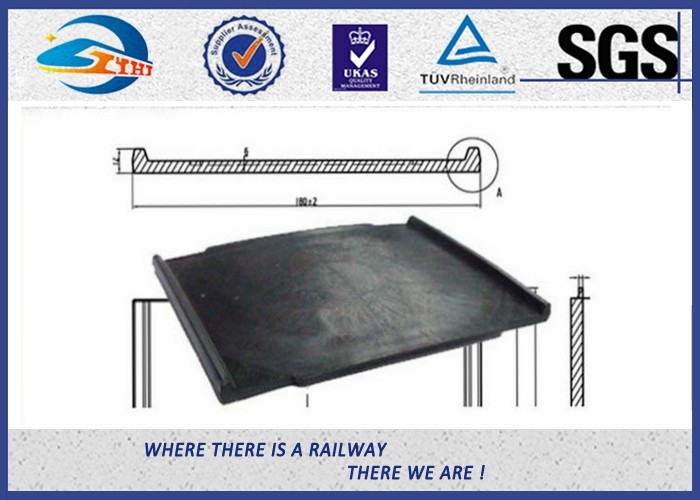

TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber

China TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber supplier
TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber supplier TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber supplier TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber supplier TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber supplier

Large Image :  TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber

Product Details:

Place of Origin: Jiangsu,China
Brand Name: ZHONGYUE
Certification: ISO,DIN,
Model Number: Rubber Pad

Payment & Shipping Terms:

Minimum Order Quantity: 2 Tons
Price: $0.1-$10
Packaging Details: Export Carton or as customer requirement
Delivery Time: 15-30days after order confirmation
Payment Terms: L/C, T/T
Supply Ability: 2000T/month
Contact Now
Detailed Product Description
Material: EVA,HDPE Or Rubber Brand Name: Zhongyue
Dimensions (L X W X H) (mm):: According To Drawing Or Samples QC: ISO,TUV
Specification: According To Drawings Application: Plastic Dowel
Warranty: 3 Years Surface Treatment: Plain Oiled
Customized: According To Drawings

TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber



Specifications



ISO Qualified Rail Pad for Railway Fastenings,Material is EVA,HDPE or Rubber

Zhongyue specialize in producing rail fastening , .Rail pad lies between the rails and base plates to keep the rail stably , they made of HDPE/EVA/Rubber to preclude and buffer impact ,increase friction and reduce vibration , we produce the rail pad for E type rail fastening system and SKL type rail fastening system . The following is the properties of the HDPE/EVA/Rubber .



HDPE

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g/㎝3

0.95-0.98

0.95

2

Tensile strength

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting point

170-190

190

5

Insulation resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)





 EVA : polyethylene 80%, Vinyl Acetate 20%

No

Technique parameter

Unit

Technical requirement

Value

1

Density

g/㎝3

0.95-0.98

0.95

2

Tensile strength

Mpa

≥15

16

3

Elongation

%

>500

550

4

Melting point

170-190

170

5

Insulation resistance

Ω

≥1×1010

5.0×1010

6

Hardness

A

≥90

92(A)



Rubber

No.

Technique parameter

Unit

Value

1

Stiffness



KN

90-130

2

Hardness shore A



72-80degree

3

Electronic Resistance



Ω

≥106

4

Tensile strength before aging



Mpa

≥12.5

5

Elongation before aging



%

≥250



As a leading manufacturer of rail fastening in China , Zhongyue also can produce many other railway fasteners , such as track bolt . Sleeper screw . track spike .tie plate .rail clips ,elastic rail clip .SKL tension clamp .rail shoulder and so on .



Sticking to the “quality first” policy, Zhongyue pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.







TUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or RubberTUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or RubberTUV Plain oiled Railway Fastenings Rail Pad EVA HDPE or Rubber
