Custom Elastic Rail Spring Steel Clip / Btumen Railway Clips

Basic Information
Place of Origin: Jiangsu,China
Brand Name: ZHONGYUE
Certification: ISO,DIN,
Model Number: SKL12 Tension Clip
Minimum Order Quantity: 1000 pieces
Price: $0.58-$20
Packaging Details: Export Carton or as customer requirement
Delivery Time: 15-30days after order confirmation
Payment Terms: L/C, T/T
Supply Ability: 2000T/month
Material: 60Si2MnA Brand Name: Zhongyue
Dimensions (L X W X H) (mm):: According To Drawing Or Samples QC: ISO,TUV
Specification: According To Drawings Application: Elastic Clip
Warranty: 2 Years Surface Treatment: Plain Oiled,Zinc Plated,Btumen,Wax,Dacromet
Customized: According To Drawings
High Light:

railway clips

,

railroad clips

Custom Elastic Rail Spring Steel Clip / Btumen Railway Clips



Specifications

Spring Steel SKL12 Tension Clip,Elastic Rail Clip For Railway Materials



1. Type: e1609. e1809. e1817. e2055. e2056. e2009. e2001. e2006. PR401. PR309....

    Raw material: 60Si2MnA
2. Plain oiled,Zinc Plated,Btumen,Wax,Dacromet

Brand

Zhongyue

Name

Spring Steel SKL12 Tension Clip,Elastic Rail Clip For Railway Materials

Type

E clip (e1809, e2006,e2007,e2009,etc)

Skl clip (skl1,skl3,skl12,skl14)

 Or the type by customers’ drawings

Material

60Si2MnA

60Si2CrA

55Si2Mn

38Si7

Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03

C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35  P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface

plain (oiled), Oxide black, color painting

Standard refers

DIN17221, BS970, GB/T1222

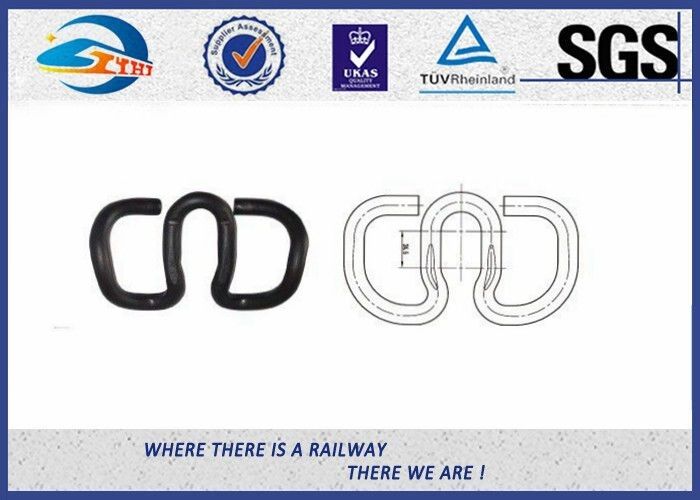

Custom Elastic Rail Spring Steel Clip / Btumen Railway Clips 0



Zhongyue specialize in producing rail fastening , We produce many kinds of Elastic rail clips & SKL tension clamps . Below is some of main products .



1. Various elastic rail clip with size steel bar diameter from 12mm to 20mm



Diameter

Weight (Kg)

Toe load

12mm

0.18

200-400

14mm

0.30

400-600

16mm

044

500-700

18mm

0.60

800-1000

20mm

0.78

1100-1400



When spring steel deflection is 9.1mm , fatigue life is up to 5 million cycles without breaking .



  1. We produce the SKL tension clamp , The SKL tension clamp is a boltable clip with high permanent clip strength. This clip is especially applied in rail constructions with concrete sleepers with the diameter 13mm to 15mm , range from SKL1 . SKL3 . SKL12 .SKL14



Diameter

Type

Weight (Kg)

 13mm

SKL1

0.49

 13mm

SKL3

0.53

 13mm

SKL12

0.53

 13mm



SKL14



0.505



     Fatigue property is no less than 5 million times .

Loading property : under pressure 8-12KN , the displacement is between 9-12mm .

We  produce PR series Elastic clip , such as PR309.PR401.PR601



The Nabla clips are also within our range ,the hardness is HRC51-55 and they have excellent elastic property ,with load 2500DaN , after the first two tests , variation of the height after releasing is only 0.45mm and after the three more tests , there is only 0.1mm variation of height , the finished Nabla clip can be painted red or other colors according to the requirement of our client .



We also produce the special rail clip according to our customers' requirement .



As a leading manufacturer of rail fastening in China , Zhongyue also can produce many other railway fasteners , such as track bolt . Sleeper screw . rail anchor .rail joint bar . tie plate .rail clips ,.rail shoulder and so on .



Sticking to the “quality first” policy, Zhongyue pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.
