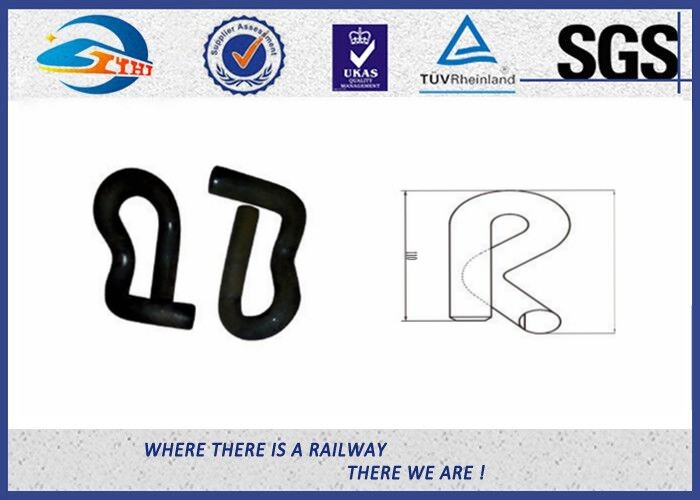

Zinc plated Railway Clips for railroad construction DIN17221

China Zinc plated Railway Clips for railroad construction DIN17221 supplier
Zinc plated Railway Clips for railroad construction DIN17221 supplier Zinc plated Railway Clips for railroad construction DIN17221 supplier

Large Image :  Zinc plated Railway Clips for railroad construction DIN17221

Product Details:

Place of Origin: Jiangsu,China
Brand Name: ZHONGYUE
Certification: ISO,DIN,
Model Number: Composite Brake Block

Payment & Shipping Terms:

Minimum Order Quantity: 1000pieces
Price: $0.58-$20
Packaging Details: Export Carton or as customer requirement
Delivery Time: 15-30days after order confirmation
Payment Terms: L/C, T/T
Supply Ability: 2000T per month
Contact Now
Detailed Product Description
Material: 60Si2MnA Brand Name: Zhongyue
Dimensions (L X W X H) (mm):: According To Drawing Or Samples QC: ISO,TUV
Specification: According To Drawings Application: Elastic Clip
Warranty: 2 Years Surface Treatment: Plain Oiled
Customized: According To Drawings



Specifications

Zinc plated E clips,Rail elastic clip,Elastic clip for railroad construction



1. Type: e1609. e1809. e1817. e2055. e2056. e2009. e2001. e2006. PR401. PR309.... Raw material: 60Si2MnA
2. Surface: plain (oil). Black


Brand

Zhongyue

Name

Zinc plated E clips,Rail elastic clip,Elastic clip for railroad construction

Type

E clip (e1809, e2006,e2007,e2009,etc)

Skl clip (skl1,skl3,skl12,skl14)

 Or the type by customers’ drawings

Material

60Si2MnA

60Si2CrA

55Si2Mn

38Si7

Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03

C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35  P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface

plain (oiled), Oxide black, color painting

Standard refers

DIN17221, BS970, GB/T1222

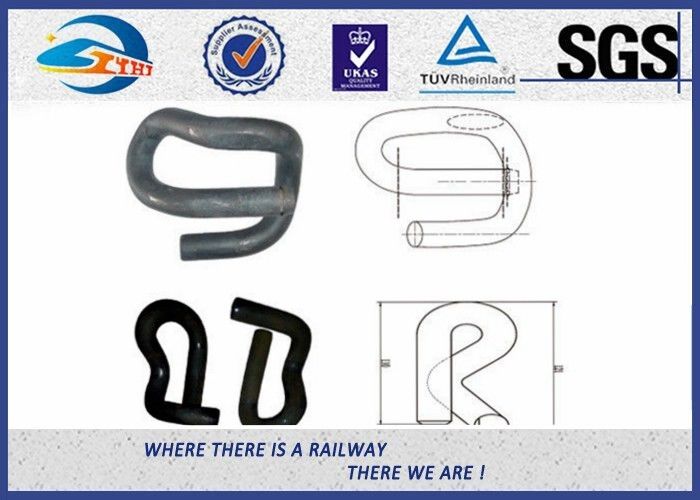

Zinc plated Railway Clips for railroad construction DIN17221Zinc plated Railway Clips for railroad construction DIN17221

 We can provide products as following :

1. E clip

  Type :e1609. e1809. e1817. e2055. e2056. e2009. e2001. e2006. PR401. PR309....

  Raw material : 60Si2MnA
  Surface : plain (oil ). black paint . colour paint .zinc .hdg etc.
2. Rail clip/Tension clamp

  Type : skl1. skl3. skl12. skl14
  Raw material : 38Si7. 60Si2CrA
  Surface: plain (oil ). black paint . colour paint . zinc .hdg etc.
3. Screw spike/Sleeper screw

  Type : Ss5. Ss8. Ss25 . Ss36 ... all kinds available according to customers drawings and samples .
  Raw material : Q235. 35#.45# . 40Mn2. 20Mnsi
  Grade : 4.6.5.6.8.8
  Surface: plain (oil ). black . zinc .hdg etc.
4.Dog spike/Railroad spike

  Type : All kinds available available according to customers drawings and samples .
  Raw material : Q235 .
  Surface : plain (oil)
5.Clip bolt/ T bolt /Rail bolt/Clamp bolt /Inserted bolt/Track bolt/Fish bolt/Square bolt

  Type : All kinds available available according to customers drawings and samples .
  Raw material: Q235. 35#.45# . 40Mn2. 20Mnsi .35CrMo. 40Cr. 42CrMo
  Grade : 4.6.4.8.5.6.8.8.10.9.12.9
  Surface : plain (oil ). black . zinc .hdg etc.
6. Tie plate /Base plate /Rail plate/Rail fixing base

  Type : All kinds available according to customers drawings and samples .
  Raw Material : QT400-15 .QT450-10 .QT500-7. ZG25 .ZG35. ZG45
  Surface : plain (oil)
7 .Fish plate /Joint bar

  Type : Many kinds available
  Raw material : 45# .50#
  Surface : Plain (oil)
8. Clamp plate/Rail clamp/Anchor plate

  Type : KPO3. KOP06 All kinds available according to customers drawings and samples
  Raw material : Q235.45#
  Surface : plain (oil ). black paint . zinc .hdg etc.
9 .Rail pad

  Type : All kinds available according to customers drawings and samples
  Raw material : EVA
  Surface : plain
10. Plastic dowel /Guide plate

  Type : All kinds available according to customers drawings and samples
  Raw material : PA66
  Surface : plain
11. Rail Shoulder

  Type : All kinds available according to customers drawings and samples
  Raw material : QT400-15 .QT450-10 .QT500-7
  Surface : Plain
