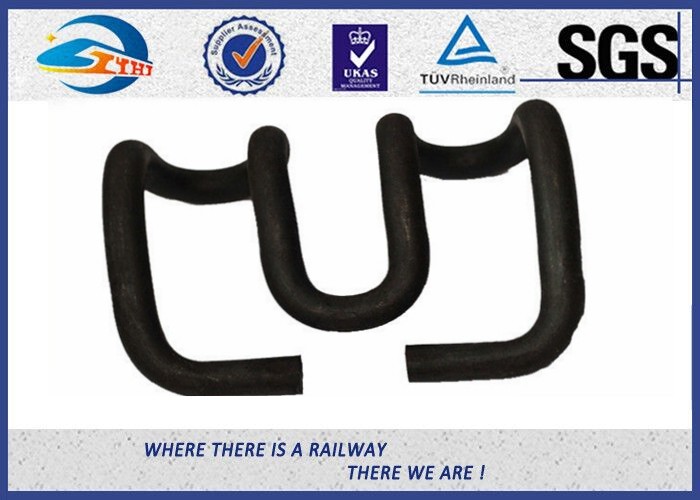

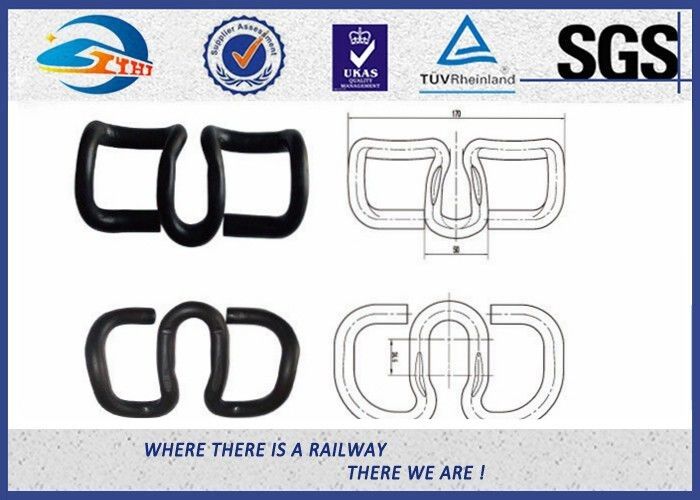

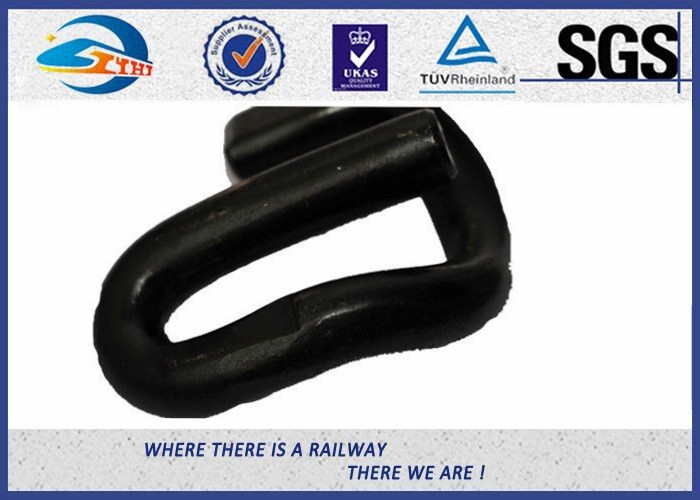

Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System

China Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System supplier
Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System supplier Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System supplier Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System supplier Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System supplier Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System supplier Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System supplier

Large Image :  Professional Oxide Black Elastic Rail Clips HRC For Railway Fastening System

Product Details:

Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: SKL & E Type

Payment & Shipping Terms:

Minimum Order Quantity: 10000pcs
Price: USD0.4- USD0.6
Packaging Details: 25kg/woven bag, 36bags/pallet, 24pallets/container or as your request
Delivery Time: 20-40 days according to your order quantity
Payment Terms: L/C, T/T
Supply Ability: 10,0000pcs per week
Contact Now
Detailed Product Description
Standard: DIN17221, BS970, GB/T1222 Surface: Plain (oiled), Oxide Black, Color Painting
Quality Control: ISO, TUV, SGS Hardness: 42 To 47
Type: E Type, SKL Series Sample: Available
Diameter: 18mm, 20mm

Professional Oxide Black Rail Elastic Clips HRC For Railway Fastening System



As a professional manufacturer and supplier of railroad fasteners, with SKL serie clip  as our most popular products, we also offer elastic clips that are exclusively used in railways. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirements.  We produce 1,500-2,000 tons of clips per month for clients both at home and abroad.



We are capable of producing elastic rail clip for any type of toe load and axle load requirements to fix the rails on wooden, steel or concrete sleepers. We manufacture different types of elastic rail clips and provide any type of toe load and axle load to fix the rails on wooden, steel or concrete sleepers.




Type I type II type E type
  A type B type   III type PR DT VI II
Application  50kg/m steel  rail,
sleeper
50kg/m  and 60kg/m steel rail,
sleeper
60kg/m steel rail,
sleeper
Spring clip-III fastening, subway
Certificate ISO9001:2008
Hardness HRC41-46 HRC42-47 HRC44-48 HRC44-48
Surface Finish plain (oiled), zink plated, dacromet, oxide black or according to customers' requirement







 Type E clip (E1609, E1809, E2006, E2007, E2009, etc)
Tension clamp SKL clip (SKL1,SKL3,SKL12,SKL14)
Or the type by customers’ drawings
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical
composition(%)
C:0.56-0.64,
Mn:0.60-0.90,
 Si:1.60-2.00,
Cr:≤0.35,
P:≤0.03,
S:≤0.03
C:0.56-0.64,
Mn:0.40-0.70,
Si:1.40-1.80,
Cr:0.70-1.00
P:≤0.03,
 S:≤0.03
C:0.52-0.60,
 Mn:0.60-0.90,
Si:1.50-2.00,
Cr:≤0.35
 P:≤0.03,
S:≤0.03
C:0.35-0.42,
 Mn:0.50-0.80,
Si:1.50-1.80,
P:≤0.03,
S:≤0.03
Hardness E clip: 44-48HRC
SKL clip: 42-47HRC
Fatigue life For Dia.18: 3 millions cycles without breaking
For Dia.20: 5 millions cycles without breaking
Standard
reference
DIN17221, BS970, GB/T1222
