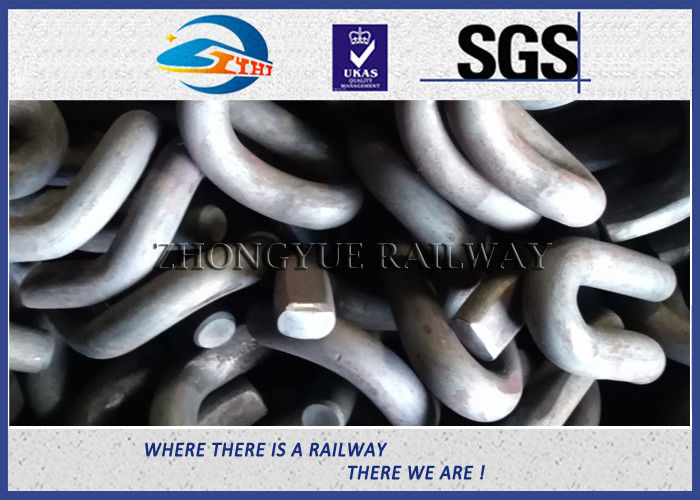

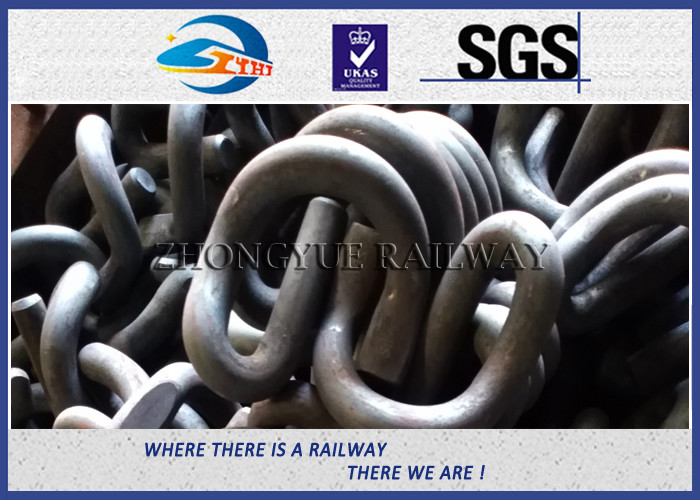

E shape rail clamps railroad elastic clips for railway fastening system

China E shape rail clamps railroad elastic clips for railway fastening system supplier
E shape rail clamps railroad elastic clips for railway fastening system supplier E shape rail clamps railroad elastic clips for railway fastening system supplier

Large Image :  E shape rail clamps railroad elastic clips for railway fastening system

Product Details:

Place of Origin: JIANGSU
Brand Name: ZHONGYUE
Certification: ISO9001-2008
Model Number: E clip (e1809, e2006,e2007,e2009,etc)

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: 0.1-5
Packaging Details: double-layer woven bag+free fumigation wooden pallet
Delivery Time: 10 to 30 days according to your order quantity after receiving advance payment
Supply Ability: 1000000PCS
Contact Now
Detailed Product Description
Product Name:: E Shape Rail Clamps Railroad Elastic Clips For Railway Fastening System Material:: 60Si2CrA
Hardness: 44-48HRC Fatigue Life: For Dia.18 Is 3 Millions Cycles Without Breaking
Surface: Plain (oiled), Oxide Black, Color Painting Standard Refers: DIN17221, BS970, GB/T1222

E shape rail clamps railroad elastic clips for railway fastening system



Elastic rail clip is one of the common railway fasteners in the railway system. In general, elastic rail clip is made of forged spring steel and has many applications. No matter as a part of rail fastening system or as a rail fastener, elastic rail clip is used with other railway track parts, such as railroad spike, rail pad, tie plate and plastic dowel.



Elastic rail clip function


Like other rail fasteners, the main function of rail clip is fastening railway sleeper and steel rail together. The rail clip is considered as one of the best ways to ensure that rails do not move, bend, warp, or rot. There are data shows that each elastic rail clip can bear about two tons of force upon a railway track.

Rail clip types


For different applications and national standards, elastic rail clips can be classified into various types,



including rail e- clip, SKL rail clips, Nabla rail clip, Deenik clip, crane rail clip, Russia rail clip as well as other standard rail clips.



E-type rail clip



Our customers widely seek this product in the market attracted by the various salient features that are as follows:

  • Corrosion resistance
  • International Standard
  • Fine finishing
  • High-capacity
  • High performance

For all types of rail clips:

  1. E-type, SKL clip, W-type…
  2. Pre-assembly with T-bolt and washer (supplementary service)
  3. Corrosion protection surface
  4. Time saving and transit safe packing
  5. full rail clip dimension available

Rail clips processing procedures

Rail clips processing procedures are as follow: Shearing-- Heating to forging temperature -- Forming-- Hardening—Tempering — Inspection — Packing.

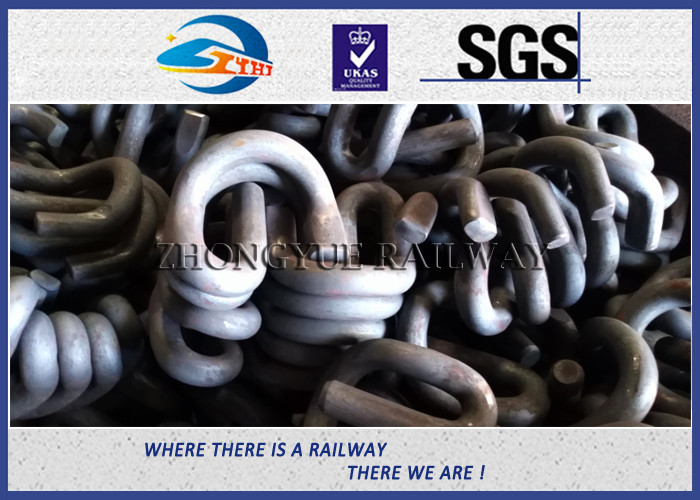

SKL 12 rail Concrete Sleeper Elastic Rail Clips With color painting



ZhongYue , your trustworthy rail clips manufacturer

Enriched with rich railway industrial experience, ZhongYue can offer its clients an extensive range of heavy duty rail fastening clips, made up of premium quality and seamless performance, to be used to fasten rails to underlying tie plates. The rail clips produced by ZhongYue are made up of premium grade spring steel sourced from a reliable and certified long term producer.



After over 10 years’ experience on producing rail elastic clips, ZhongYue has become the largest and most competitive production base of rail clips in China, qualified to tender nationally large and medium scaled rail projects under the China Ministry of Railways, both at home and abroad.



At each single step of manufacturing the clips are stringently tested and completely authenticated. To save time during installation in track, we can provide a special service by pre assembling a SKL clip with a T-bolt and a washer for the customer at our production base before delivery. Besides, corrosion protection layer of the clip surface can be applied.



For all types of rail clips:

  1. E-type, SKL clip, W-type…
  2. Pre-assembly with T-bolt and washer (supplementary service)
  3. Corrosion protection surface
  4. Time saving and transit safe packing
  5. full rail clip dimension available
Brand ZHONGYUE
Name E clip
Type E clip (e1809, e2006,e2007,e2009,etc)
  Skl clip (skl1,skl3,skl12,skl14)
  Or the type by customers’ drawings
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface plain (oiled), Oxide black, color painting
Standard refers DIN17221, BS970, GB/T1222





E shape rail clamps railroad elastic clips for railway fastening systemE shape rail clamps railroad elastic clips for railway fastening system



Rail Clip Production Process

How do we produce rail clips?

ZhongYue produces the rail clips according the scientific procedures of rail clip production strictly and the specific procedures are as follow:

  1. Raw material: Premium grade spring steel sourced from a reliable and certified long term producer.
  2. Shearing: The spring steel bar has to be sheared as per length required.
  3. Heating: to forging temperature (950-1000 degrees Celsius), but over heating shall be avoided to check decarburization.
  4. Forming: Proper heated bar is transferred to power press for forging.
  5. Hardening: The forged rail clips are transferred to quenching tank. Dimensional accuracy and quench hardness of rail clips are checked before tempering.
  6. Tempering: The rail clips are tempered at about 350 Celsius to achieve appropriate toughness in the spring.
  7. Inspection: The products are then checked thoroughly as per China CRCC and customer required specification and design.
  8. Packing: Clips can be packed in woven bags or upon customer requirement.

Inspection during the production process

How is the quality control of ZhongYue rail clips?



We own a full set of strict quality control system to produce rail clips, from raw material purchasing till the finished clip application. There’s a professional inspection team to check about each process of the production line and every two hour out of the line.

Inspection machine for finished rail clips.

What does ZhongYue use to inspect the finished rail clips?

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine to test metallic materials
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Zhongyue's products ranges:



E shape rail clamps railroad elastic clips for railway fastening system

  • Rail Fastening system
  • Rail Sleeper Screw
  • Rail Spike/Track spike/ Dog spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nuts
  • Rail Fastening System
  • Crane rail



Contact Details
