AREMA 4.8 Grade Dog Railroad Track Spikes With Plain Finished

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

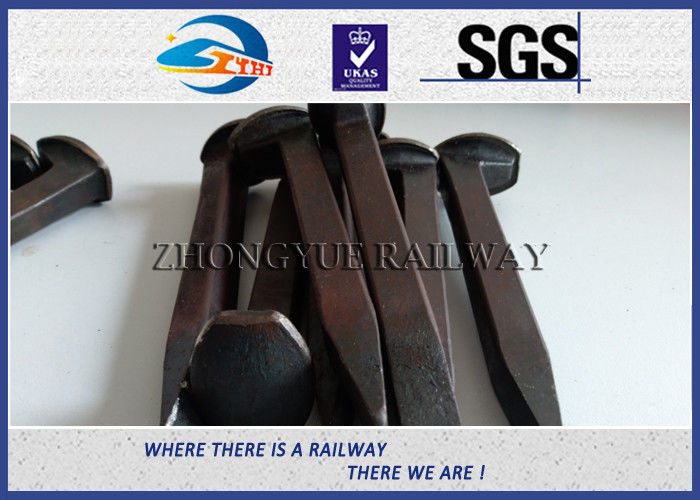

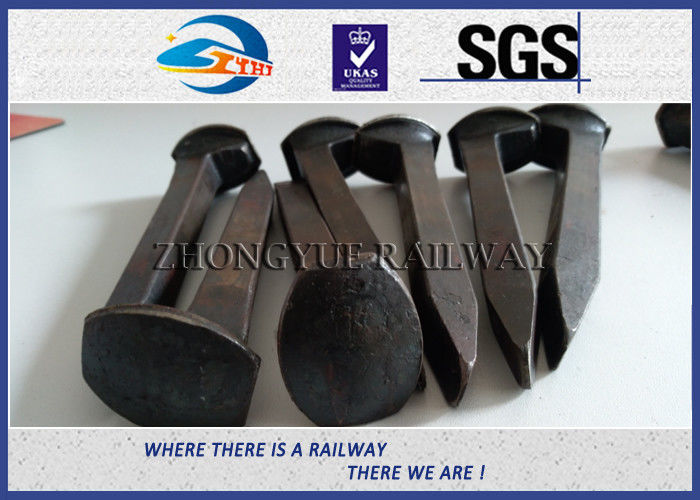

AREMA 4.8 Grade Dog Railroad Track Spikes With Plain Finished

China AREMA 4.8 Grade Dog Railroad Track Spikes With Plain Finished supplier
AREMA 4.8 Grade Dog Railroad Track Spikes With Plain Finished supplier AREMA 4.8 Grade Dog Railroad Track Spikes With Plain Finished supplier

Large Image :  AREMA 4.8 Grade Dog Railroad Track Spikes With Plain Finished

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: ZHONGYUE
Certification: ISO9001:2008
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 10000PCS
Price: USD/PCS
Packaging Details: 25kg woven bag with fumigation free pallet or according to customers' requirement
Delivery Time: 5-8 Working days for stocks
Payment Terms: L/C, T/T
Supply Ability: 400000 Ton/Tons per Year Dog spike
Contact Now
Detailed Product Description
Material:: Q235 Product Name: Dog Spike / Railroad Track Spike
Grade:: 4.6, 4.8 Quality Control:: Inspection
Standard:: AREMA

4.8 Grade Dog spike railroad spike Railway Fastener With Plain Finished



Dog Spike, also named Track spike or Railroad spike. It's a type of rail fastenings and is mainly used in rail construction.



Jiangsu SUYU Railway Material Co.,Ltd is a leader of supplying rail fastenings. We are specialized and well-experienced in the areas of the worldwide, especially in Europe, North and South America, Oceania and South Africa also. We support railway contractors in all over the world.





1. Raw Material Q235
2. Grade 4.6, 4.8
3. Finish Plain
4. Certificate ISO 9001-2008



Look forward to hearing from you eagerly.



Dog spike / Railroad spike / Track cut spike / Track spike / Nails for railway / Lock spike



Track spikes - a type of railroad spike





Track spikes are designed to maintain gauge between the running rails and also they are mean to secure the rail to the tie. Track spikes have various shapes serving for different functions. The materials for railroad spikes production can be carbon or stainless steel based on the requirement, and the surface of the spikes can be plain, black, hot dipped galvanized, or sherardized, etc. Among the various railroad spikes, dog spikes and the screw spikes are the most common types.





Overview of rail dog spikes

  • On railway system, rail dog spikes can provide a strong, simple and inexpensive solution to securing rail track.
  • The method of manufacture ensures that the head and shank remain one solid piece of metal with no joins or welds.
  • Applications in many countries range from use in coal and gold mines to sugar plantations, peat works, garden festivals and leisure parks as well as in some heavy rail applications.
  • Dog spikes may be manufactured in accordance with a number of international standards such as GB, AREMA or ASTM, BS, UIC.
  • Materials for rail dog spikes can be either carbon or stainless steels.



Typical examples of rail dog spikes as below:

Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical Tensile strength: ≥ 400Mpa Tensile strength: ≥ 500Mpa Tensile strength: ≥ 800Mpa Tensile strength: ≥ 1000Mpa
Yield strength: ≥ 240Mpa Yield strength: ≥ 300Mpa Yield strength: ≥ 640Mpa Yield strength: ≥ 900Mpa
Elongation: ≥ 22% Elongation: ≥ 20% Elongation: ≥ 12% Elongation: ≥ 9%
Cold bending: 90 degree Cold bending: 90 degree Cold bending: 90 degree Cold bending: 90 degree
without crack without crack without crack without crack
Surface plain(oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

AREMA 4.8 Grade Dog Railroad Track Spikes With Plain Finished





Professional rail dog spike supplier – ZHONGYUE RAIL

As a professional manufacturer of all specifications of rail spikes, we can design and manufacture range of rail dog spike sizes according to international standards. As dog spikes are manufactured in commercial quantities we are able to sell to our clients at competitive prices even for small quantities.

As an integrated service provider and supplier, we have a more comprehensive system of export business. With the clear development strategy, innovative business models, sophisticated internal management, strict risk control system and excellent staff, we devote ourselves to provide customers with more convenient, thoughtful, high quality service. And our rail dog spikes have been exported to more than 70 countries and regions over the world, like United States, Korea, Sudan, South Africa and southeastern countries.


Our main products:


Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.



AREMA 4.8 Grade Dog Railroad Track Spikes With Plain Finished





1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, SuYu pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
