BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183

China BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183 supplier
BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183 supplier BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183 supplier BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183 supplier

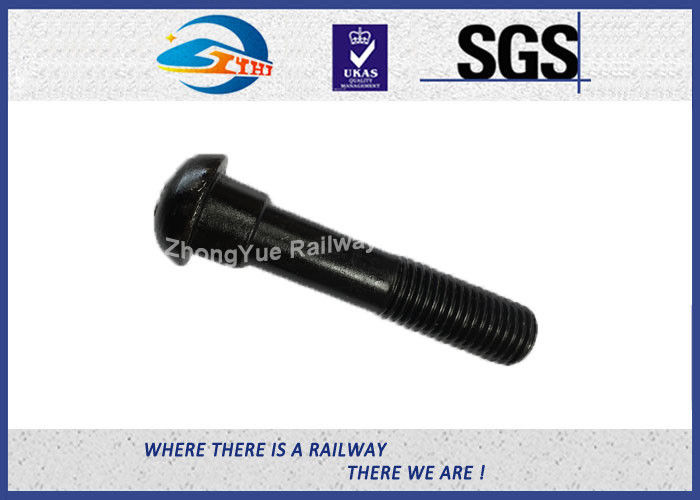

Large Image :  BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183

Product Details:

Place of Origin: JiangSu,China
Brand Name: ZhongYue
Certification: SGS9001:2008
Model Number: 5/8" - 2"

Payment & Shipping Terms:

Minimum Order Quantity: 5000 pc
Price: negotiable
Packaging Details: in woven bags on wooden pallet
Delivery Time: 30 days after order
Payment Terms: T/T
Supply Ability: 1,000,000pcs per month
Contact Now
Detailed Product Description
Material: Q235, 35#,45#,40Cr Grade: 4.6/4.8/5.6/5.8/8.8/10.9/12.9
Surface Treatment: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet, Sherardizing Type: Button Head Oval Neck
Standard: AREMA



Button Head Oval Neck Track Bolt





Other Name:

Rail Bolt, BHON Bolt, Railway Bolt, Track Bolt,anchor bolt,clamp bolt,insert bolt



Standard:

ASTM A-183



Application:



Railway, Mining, Bridge, Boat, Construction and so on

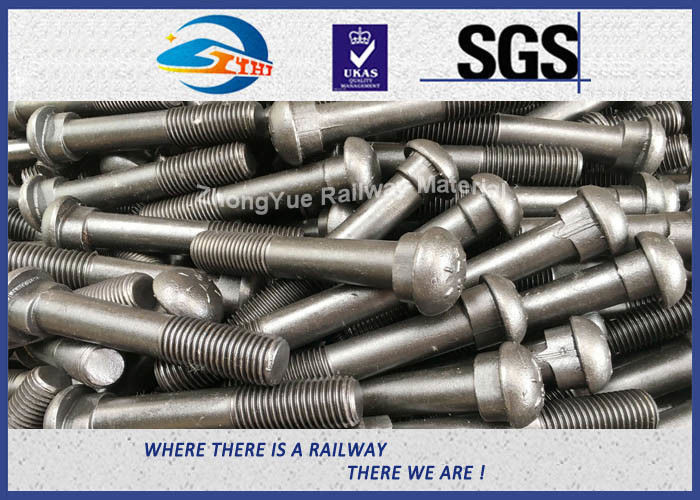

BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183



Specifications:

Grade:4.6/4.8/5.6/5.8/8.8/10.9/12.9

Dimensions: 5/8" ,3/4" ,7/8", 1", 1 1/8",1 1/4",1 3/8",1 1/2", 1 5/8", 1 3/4", 1 7/8", 2"



Brand ZhongYue
Name Track bolt
Type Button Head Oval Neck Bolt
Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa Tensile strength:≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:22%min Elongation:20%min Elongation:12%min Elongation:9%min
Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers UIC864-2





Production Procedure



Raw material —— Wire drawing —— Cutting the wire rod —— forming the head —— cutting Edge —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Delivery

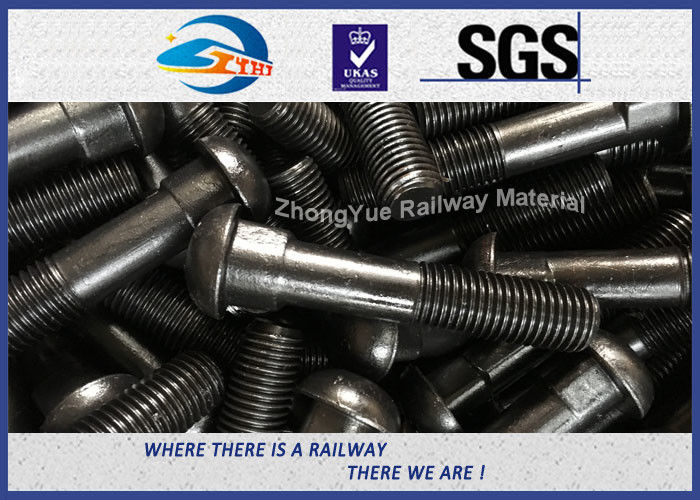

BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183





Surface Treatment


1.plain (oiled)
2.color paint
3.oxide Black (most choice)
4.Zinc Plate
5.Hot Dip Galvanized
6.bitumenizing
7.wax
8.phosphatiert





Sale Range
1.Rail fastening system
2.Dog spike / Screw spike
3.Bolts & Nuts
4.Elastic clamp
5.Rail anchor
6.Rail shoulder
7.Fish plate
8.Tie plate
9.Plastic / Rubber parts
10.Brake pad
11.Steel rail



BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183







Inspection machine

1. Brinell Hardness Tester

2. Carbon and Sulfur Analyzer

3. Rockwell Hardness Machine

4. Automatic Impact Testing Machine

5. Metallographic Microscope

6. Automatic High-speed Analyzer

7. Fatigue Testing Machine

8. Metallographic Specimen Polishing Machine

9. Metallographic Specimen Pointing Machine



BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183

Our Company

    Established in 2013, ZhongYue Railway Material Company has become one of the largest manufacturers of Railway fasteners in China. Our products are manufactured according to international standards eg.ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.



     Following to our quality first rules, Zhongyue pays a lot attention to quality control management. We have been granted ISO9001-2008 certificates and received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.

BHON Button Head Oval Neck Track Bolt For Fishplate AREMA Standard 5/8" 3/4" 7/8" 1" 2" ASTM A-183
