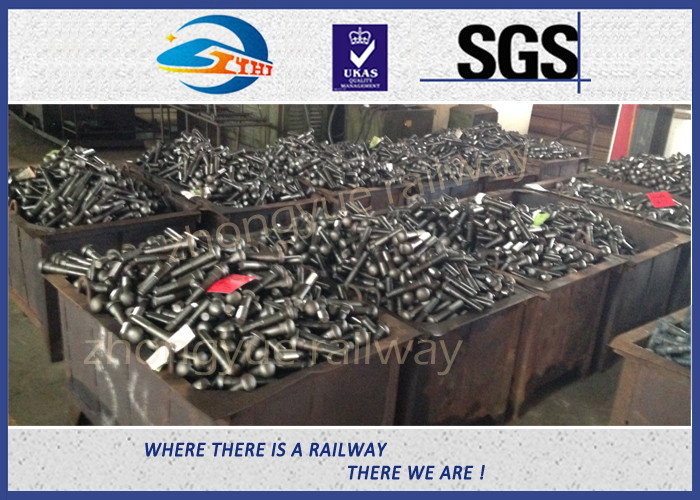

Q235 40Cr HS26 / HS32 Railway Bolt Track Bolts With Bitumen / Dacromet

China Q235 40Cr HS26 / HS32 Railway Bolt Track Bolts With Bitumen / Dacromet supplier
Q235 40Cr HS26 / HS32 Railway Bolt Track Bolts With Bitumen / Dacromet supplier Q235 40Cr HS26 / HS32 Railway Bolt Track Bolts With Bitumen / Dacromet supplier

Large Image :  Q235 40Cr HS26 / HS32 Railway Bolt Track Bolts With Bitumen / Dacromet

Product Details:

Place of Origin: jiangsu China
Brand Name: zhongyue
Certification: ISO9001:2008
Model Number: 24x145mm

Payment & Shipping Terms:

Minimum Order Quantity: 10000PCS
Price: Negotiable
Packaging Details: Plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 30 days after received your payment
Supply Ability: 500000PCS/MONTH
Contact Now
Detailed Product Description
Product Name:: High-Strength Bolts For Rail Track | Fish Bolt, Clip Bolt, Special Bolt Material 50# Material:: 45#
Grade:: 8.8 Application:: Fastening Part
Main Surface Treatment:: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Package:: Woven Bag, Wood Pallet

High-Strength Bolts For Rail Track | Fish Bolt, Clip Bolt, Special Bolt Material 50#

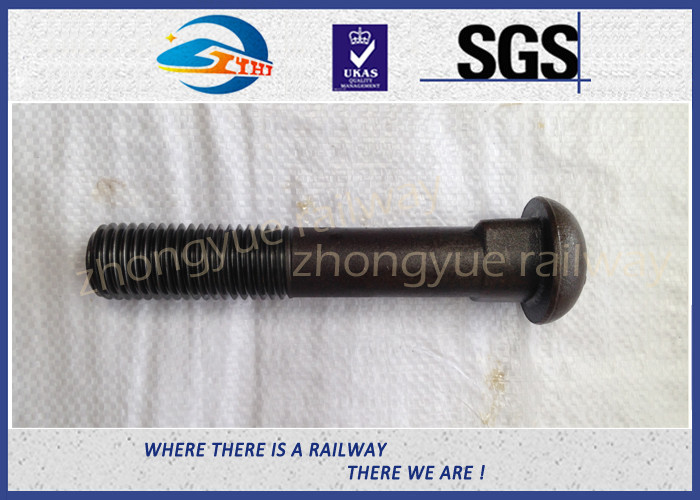

Track bolts are generally hexagon domed head bolts. They are used to secure the track plates to the track chains on crawler equipment such as bulldozers. Zhongyue track bolts are forged from alloy steels and heat-treated to the specifications of the original equipment manufacturers.

We also produce many double head screws each year according to clients' drawings or samples.

Track bolts are made in either inch-series with UNRF or UNRS threads, or metric with fine-pitch threads. They are secured by either square, hexagon or special domed track nuts.




Brand ZhongYue
Name Railway bolt
Type HS26/HS32
Russian clamp bolt & inserted bolt
Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa Tensile strength:≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%
Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers UIC864-2
Q235 40Cr HS26 / HS32 Railway Bolt Track Bolts With Bitumen / DacrometQ235 40Cr HS26 / HS32 Railway Bolt Track Bolts With Bitumen / Dacromet



Strength grade

From the strength grade of steel, high strength bolt with 8.8s and 10.9s strength grade, most are 10.9s. By contrast, common rail bolt with lower strength grade like 4.4s, 4.8s, 5.6s and 8.8s.

Loading feature

High strength bolt exert pretension force to screw and produce extrusion force between connecting components. So that creating great friction perpendicular to the direction of screw. Besides, pretension force, anti-sliding coefficient and steel types have great influence on bearing capacity of high strength bolt. Common railroad bolt transmit shear by shear resisting of screw and bearing stresses along bolt hole.

Application

High strength bolt can be applied in the main member. Generally, high strength bolt is permanent connection, in other words, single use only. High strength bolt is the pre-stressed bolt. Frictional type was added pre-stress by torque wrench. Bearing type shakes off the plum flower head. Common railway bolt is reusable and it has poor shear resisting, so it is mostly applied in the secondary member.



Aplication



Railway, Mining, Bridge, Construction and so on



Inspection machine for finished rail clips





Our main products:



We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!



Custom Railroad Track Spikes , Threaded Screw Spike For Rail Fastening System



1. Q: what information should we show if we need price?

A: 1. tree species;

2. size: length*width*thicknessl;

3. quantity;

4. we adopt oiled anti corrosion, if yours special, please mark it.



2.Q: what is anti-corrosion?

A: Using high temperature and pressure oiling corrosion technology.
Technology standards : GB9221-88



3. Q: payment terms?

A: 30% by T/T as deposit, the balance 70% before delivery.



4. Q: Validity Date?

A: 10~15 days in general. it will be showed in quotation.



5. Q: Mold fee?

A: if we have same mold, no mold fee;

if we make new mold with small quantity, client pay for it;

if we make new mold with large quantity, SuYu pay for it.





If you have any other models of rail/ rail fastener, welcome to contact me.
