| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | M24X144.5MM |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |
| Packaging Details: | 25kg Cartons or woven bags onwooden pallet , 36 bags/pallets , 24 pallets/container |
| Delivery Time: | 10 to 30 days according to your order quantity |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 10,000pcs per week |
| Product Name:: | Carbon Steel COACH SCREWS YELLOW ZINC-PLATED M24 X 144.5MM 50 PACK | Application:: | Railway, Subway, Mine |
|---|---|---|---|
| Material:: | Q235, 35#, 45#, 40Cr | Surface Treatment:: | HDG, Oil, Oxide Black, Wax |
| Brand:: | Zhongyue | Grade:: | 4.6, 4.8, 5.6, 8.8 |
| Standard:: | ISO898-1, UIC864-1, And NF F500-50 | Hardness:: | 43-47 |
| Tensile Strength:: | ≥800Mpa | Yield Strength:: | ≥640Mpa |
| Elongation:: | ≥12% | Cold Bending:: | 90 Degree Without Crack |
| Customization:: | Acceptable | Samples:: | Available |
| High Light: | stainless steel coach screws,railway sleeper fixing screws |
||
ZHONGYUE can supply a range of rail sleeper screw spikes manufactured to international standards according to BS, ASTM and DIN, among others. ZHONGYUE has extensive experience in the rail industry and a high level of expertise in this specialized field. ZHONGYUE can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.

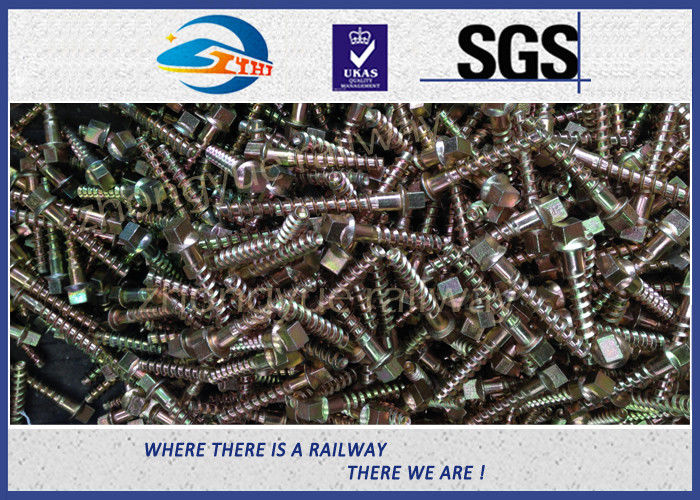

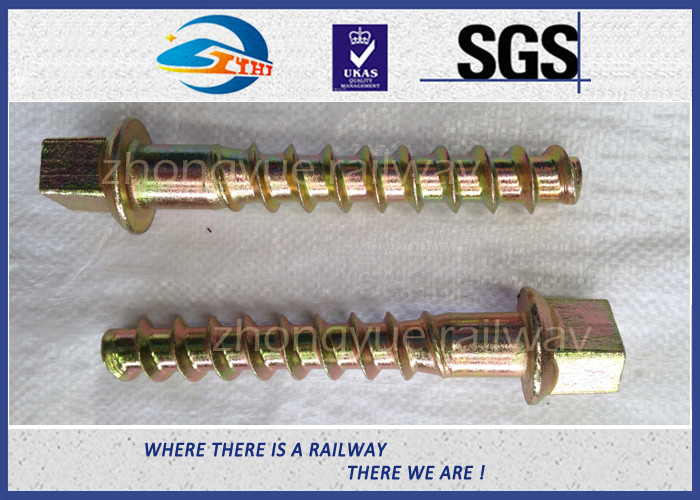

Rail sleeper screw spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the rail sleeper screw is used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.
The screw spike costs more to manufacture than the dog spike or dog nail, but has the advantage of greater fixing power; approximately twice that of a dog spike, and can be used in combination with spring washers.
Railway screw spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes.Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers.Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and Suyu can help with product specification and selection.
| Name | 5.6 Grade 35# Screw Spike DIN Standard High Hardness | |||
| Type | Ss5.-150 | V20-135 | ||
| Ss8-140 | V23-115 | |||
| Ss8-150 | V23-135 | |||
| Ss8-160 | V23-155 | |||
| Ss23-160 | V23-215 | |||
| Ss25.-165 | V26-115 | |||
| Ss35.-161 | ||||
| Or the type by customers’ drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
|
Mechanical properties |
Tensile strength: ≥400Mpa |
Tensile strength: ≥500Mpa |
Tensile strength: ≥800Mpa |
Tensile strength: ≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
|
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
|
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
| Standard refers | ISO898-1, UIC864-1, and NF F500-50 | |||
Application of Carbon Steel COACH SCREWS YELLOW ZINC-PLATED M24 X 144.5MM 50 PACK

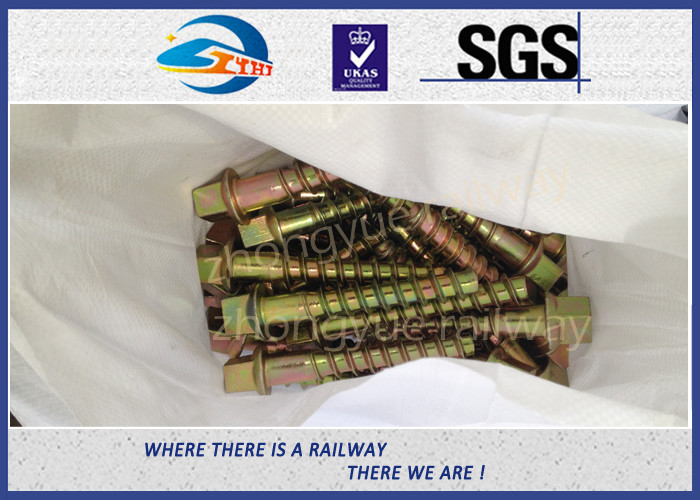

Package
1. 25kg per double layer woven bag+ free fumigation wooden pallet
36bags/pallet,
24pallets/container
2. Keg
3. in according with your request
Our product range:
Zhongyue's products ranges:
Eric Li
Screw spike/Sleeper screw, Coach screw/ Drive screw/Dog spike/ Track spike/ Railway spike
