Reinforced Nylon 66 Rail Insulator Angle Guide Plate Plastic And Rubber Part

China Reinforced Nylon 66 Rail Insulator Angle Guide Plate Plastic And Rubber Part supplier
Reinforced Nylon 66 Rail Insulator Angle Guide Plate Plastic And Rubber Part supplier Reinforced Nylon 66 Rail Insulator Angle Guide Plate Plastic And Rubber Part supplier Reinforced Nylon 66 Rail Insulator Angle Guide Plate Plastic And Rubber Part supplier

Large Image :  Reinforced Nylon 66 Rail Insulator Angle Guide Plate Plastic And Rubber Part

Product Details:

Place of Origin: JIANGSU CHINA
Brand Name: ZHONGYUE
Certification: SGS, ISO, TUV
Model Number: according to drawings

Payment & Shipping Terms:

Minimum Order Quantity: 20000pcs/item
Price: USD dollars
Packaging Details: Double-layer woven bag and wooden pallet
Delivery Time: 10-20 days after payment
Supply Ability: 500000 pcs per month
Contact Now
Detailed Product Description
Product Name: Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors Material: PA66: Nylon 66.69%, Glass Fiber 30%, Other 1%
Sample:: Available Customize:: Available
Color:: White, Black, Blue, Red Etc

Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors

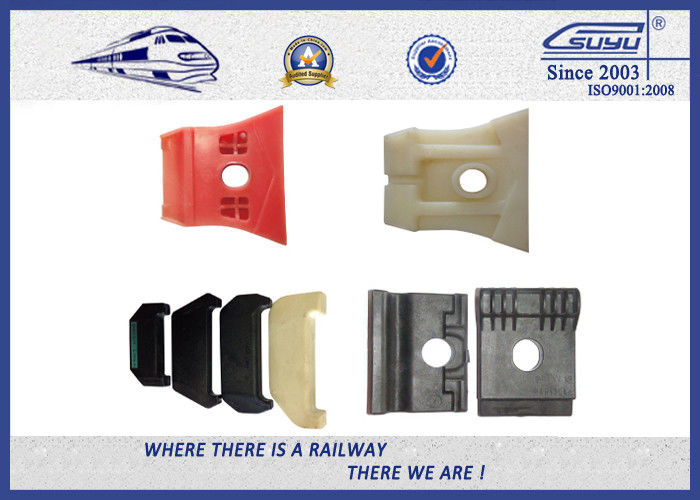

PA66 Rail Nylon Insulator Rail guide plates for E-type, SKL series&Nabla fastening system



Rail insulator is installed between rail and tie plate, for adjusting rail gauge and electrically insulating railroad rails, clips and bolts from the interior of a concrete tie or sleeper. Its function is the same as a rail pad, but it is thicker than rail pad.



For the high speed or high load train, it is a necessary fastener part.



Properties of insulators


The insulators apply to rails such as 60kg (UIC) rail, 52kg rail, 136RE Rail, 90R, 75R, 50R, 60R etc. It’s material:Nylon-6 or Nylon-66 with glass filler content 20% to 35% depending on specification. These material are UV stabilized and available in natural color or as per requirement.



The properties of Suyu rail insulators



Technical Parameter Unit Technical Requirement Value
Density g/cm 1.3-1.45 1.45
Tensile Strength Mpa ≥170 178
Elongation % ≤4.4 4.0
Bending Strength Mpa ≥250 290
Impact Strength (No gap) KJ/m2 ≥80 85
Melting Point 250 - 270 270
Insulation Resistance Ω ≥1×108 5×108
Glass Fiber Content % 30-35 35
Hardness HRR ≥110 118



Types of rail insulators

We supply E-type rail insulators and guide plates for SKL rail fastening systems and Nabla fastening systems. The material of rail insulator is usually Reinforced Nylon 66 (PA66), with the color white, dark brown or black. Materials and colors can also be customized according to the customers’ requirements.



Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors

PA66 Rail Nylon Insulator Rail guide plates for E-type, SKL series&Nabla fastening system



  • E-type rail insulators



E-type rail insulators are used in E-clip fastening systems, together with E-clips, rail shoulders and rail pads, whose function is to cushion the passing train’s stress onto the rail and make the rail back to position afterwards, similarly used as a rail pad under the rail track.



PA66 Rail Nylon Insulator Plastic and Rubber Part for Railway Fastening System



Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors

PA66 Rail Nylon Insulator Rail guide plates for E-type, SKL series&Nabla fastening system


  • SKL rail insulators

SKL rail insulators are also called guide plates, used in SKL fastening systems, combined with SKL tension clips, screw spikes, plastic dowels, flat washers and rail pads.



Angle guide plate is used under tension clamp / SKL / to keep the rail in lateral position and the lateral forces are passed on to the concrete body by the means of Angle Guide plate. Advantageous as pre assemble at sleeper factory required. These are made of engineered polymers known as Poly Amide / Nylon 66 with glass reinforcement for durability and strength. Also providing high electric insulation.Track Adjustment of +/10mm can be made through Angle guide plate WFP, therefore different angle guide plate can be used for different rail profile with same sleeper and same gauge.



1. Wfp 14k 17
2. Wfp 14k 14.5
3. Wfp 14k 12
4. Wfp 14k 9.5
5. Wfp 14k 7



PA66 Rail Nylon Insulator Plastic and Rubber Part for Railway Fastening System



Reinforced Nylon 66 Rail Insulator Angle Guide Plate Different Colors

PA66 Rail Nylon Insulator Rail guide plates for E-type, SKL series&Nabla fastening system





  • Nabla rail insulators

Nabla rail insulators are used in Nabla clip rail fastening systems, working together with other fastener parts including Nabla clips, screw spikes and spring washers.



PA66 Rail Nylon Insulator Plastic and Rubber Part for Railway Fastening System



Zhongyue's products ranges:



Reinforced Nylon 66 Rail Insulator Angle Guide Plate Plastic And Rubber Part

  • Rail Fastening system
  • Rail Sleeper Screw
  • Rail Spike/Track spike/ Dog spike
  • Railway Bolt
  • Elastic Rail Clip
  • Rail Shoulder
  • Rail Anchor
  • Rail Tie Plate
  • Rail Clip
  • Railway Washer
  • Rail Nylon Insulator
  • Rail Pad
  • Rail Plastic Sleeve
  • Rail Fish Plate
  • Brake Block
  • Rail Nuts
  • Rail Fastening System
  • Crane rail



If you have any interest rail fastener, welcome to contact me.
