GB11264-89 Standard Light Rail 6kg 9kg 12kg 15kg 22kg 30kg With Q235B / 55Q

China GB11264-89 Standard Light Rail 6kg 9kg 12kg 15kg 22kg 30kg With Q235B / 55Q supplier
GB11264-89 Standard Light Rail 6kg 9kg 12kg 15kg 22kg 30kg With Q235B / 55Q supplier GB11264-89 Standard Light Rail 6kg 9kg 12kg 15kg 22kg 30kg With Q235B / 55Q supplier

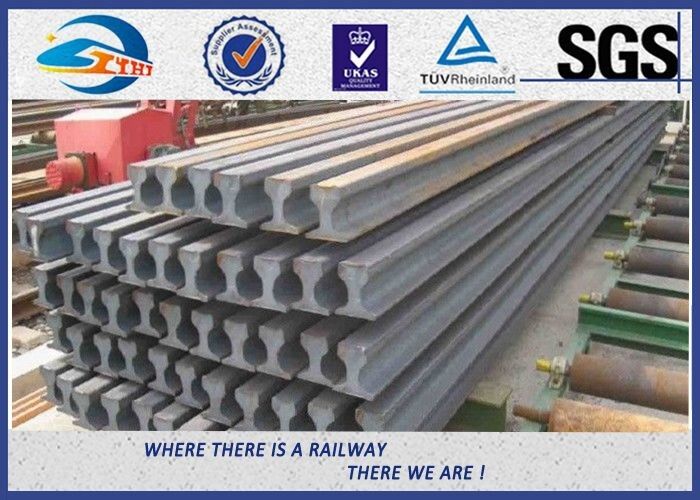

Large Image :  GB11264-89 Standard Light Rail 6kg 9kg 12kg 15kg 22kg 30kg With Q235B / 55Q

Product Details:

Place of Origin: China
Brand Name: ZhongYue
Certification: ISO 9001:2008
Model Number: GB11264-89

Payment & Shipping Terms:

Minimum Order Quantity: 26 tons
Price: negotiatable
Packaging Details: in bundle
Delivery Time: 3 days after payment
Payment Terms: By T/T 30% in advance, 70% balance before ship
Supply Ability: 5000 ton per month
Contact Now
Detailed Product Description
Material: Q235B 55Q Length: 6m-12m
Surface: Plain Weight: 5.98kg - 30.1kg/m
Type: 6kg 9kg 12kg 15kg 22kg 30kg Standard: GB11264-89



Chinese Standard Light Rail



Other Name: Steel Rail, Railway Track, Crane Rail

Brand: ZhongYue

HS CODE: 73021 0000

Standard:  GB11264-89: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG

Material: Q235B/55Q

Specifications

Standard: GB11264-89
Size Dimension(mm) Weight
(kg/m)
Material Length(m)
  Head(mm) Height(mm) Bottom(mm) Web(mm)
GB6KG 25.4 50.8 50.8 4.76 5.98 Q235B 6-12
GB9KG 32.1 63.5 63.5 5.9 8.94 Q235B 6-12
GB12KG 38.1 69.85 69.85 7.54 12.2 Q235B/55Q 6-12
GB15KG 42.86 79.37 79.37 8.33 15.2 Q235B/55Q 6-12
GB22KG 50.3 93.66 93.66 10.72 23.3 Q235B/55Q 6-12
GB30KG 60.33 107.95 107.95 12.3 30.1 Q235B/55Q 6-12




The Process Flow Chart of Steel Rolling And Quality Control

  1. Raw material

  2. Heating

  3. High-pressure water dephosphorization

  4. Primary rolling

  5. High-pressure wind dephosphorization

  6. Precision rolling

  7. Saw cutting

  8. Pre-bending

  9. Air cooling —the test of chemical composition and mechanical properties

10. Vertical straighting

11. Ultrasonic detection

12. Drilling and milling

13. Heat treatment

14. Inspection and analysis

15. Labeling

16. Packing

17. Storage



Quality Testing Machine

  1. CS Analyzer

  2. Brienll hardenss tester

  3. Impact testing machine

  4. High magnification metallographic microscope

  5. Tensile testing machine

  6. Drop-testing machine

  7. Precise elemental analyser

  8. Digital ultrasonic flaw detector

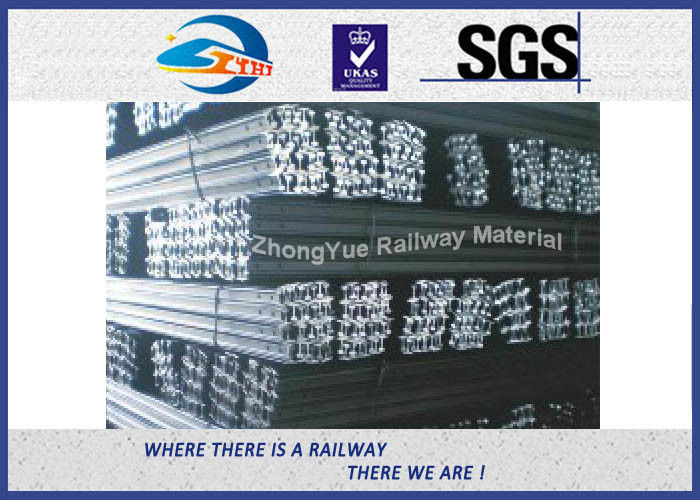

Package:

in bundle by steel belt.  25 tons per container.



Payment terms:
By T/T, 30% in advance,and balance 70% before delivery.



Delivery Date
30 days after order.



Certification
ISO9001:2008. SGS.We also accept Third Party Test from clients.



Sale Range
  1.Rail fastening system
  2.Dog spike / Screw spike
  3.Bolts & Nuts
  4.Elastic clamp
  5.Rail anchor
  6.Rail shoulder
  7.Fish plate
  8.Tie plate
  9.Plastic / Rubber parts
10.Brake pad
11.Steel rail



Company Info.

    Established in 2013, ZhongYue has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.



    Sticking to our quality first policy, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
