High Tensile Railway Fastening System / Track Fittings And Fastenings 44 - 48 HRC

China High Tensile Railway Fastening System / Track Fittings And Fastenings 44 - 48 HRC supplier
High Tensile Railway Fastening System / Track Fittings And Fastenings 44 - 48 HRC supplier High Tensile Railway Fastening System / Track Fittings And Fastenings 44 - 48 HRC supplier

Large Image :  High Tensile Railway Fastening System / Track Fittings And Fastenings 44 - 48 HRC

Product Details:

Place of Origin: CHINA
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: FIST CLIP

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiable
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet.
Delivery Time: 20-30 Days from placing orders
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100,000 Sets/Month
Contact Now
Detailed Product Description
Material: Spring Sreel 60Si2MnA, PA66, Q235 Market: South Africa, Zimbabwe, Botswana, Swaziland
Name: Fist Rail Fasteners Hardness: 44-48HRC
Standard: DIN17221, BS970, GB/T1222 Quality Inspection: Inspection On Each Workshift
Surface: Black Oxide, Plain Oiled Or As Request

Railway Fastening System / Railroad Fist Clip Fist Spring Clip





The Fist rail fastening system originated in Sweden and is used extensively in the Southern African surface railroads with major installations in South Africa, Zimbabwe, Botswana, Swaziland and Namibia. The system has also been used in South America and Australia.

The largest project executed in the Southern African region on Fist was the Orex (Sishen-Saldanha) heavy haul line, which is 810km in length.

All these components are manufactured in-house at our Isando works to BS EN ISO 9001: quality standards.



One set of Fist system comprises of:



A) Fist Clip / Fist spring steel clip / Railway Fist clip ; -2 units;

B) Rail pad / Fist Base Plate ; -2 units;

C) Insulated retaining pin / Insulated Steel Pin / Insulated Pin -2 units;





Specifications

1. HOT SELLING
2. Fist Rail Fastening System: Fist Clip, Insulated pin & Base pad
3. Widely used in Africa



Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface plain (oiled), Oxide black, color painting, HDG, Zinc Plating...
Standard refers DIN17221, BS970, GB/T1222

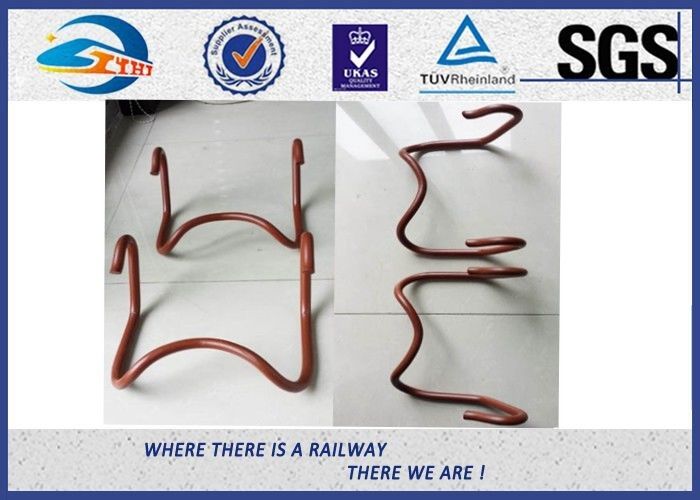

High Tensile Railway Fastening System / Track Fittings And Fastenings 44 - 48 HRC

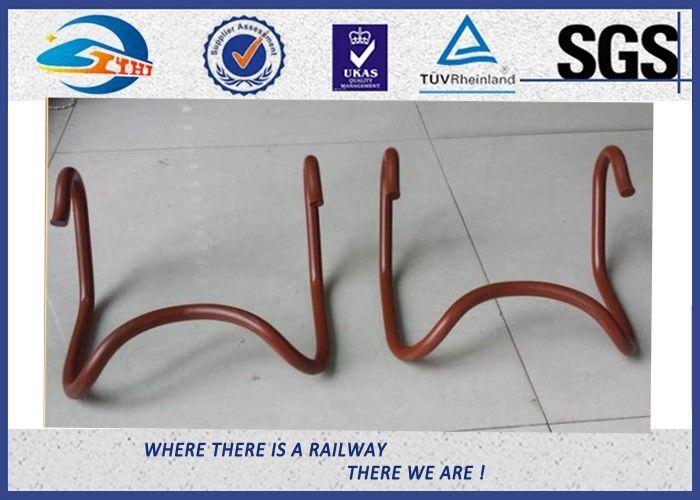

High Tensile Railway Fastening System / Track Fittings And Fastenings 44 - 48 HRC
