50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail

China 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier
50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail supplier

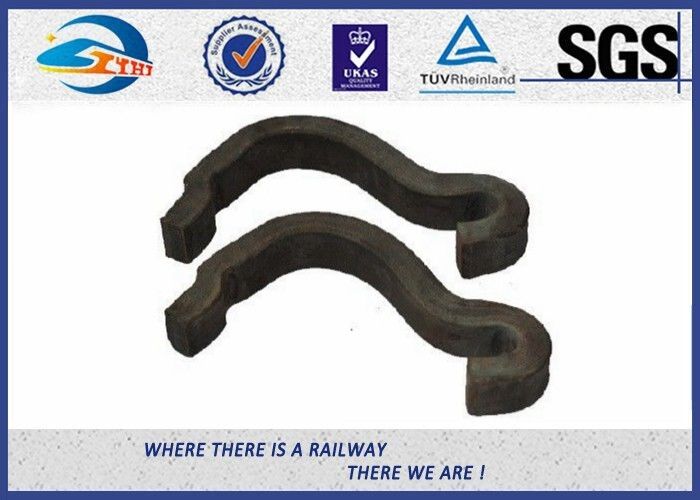

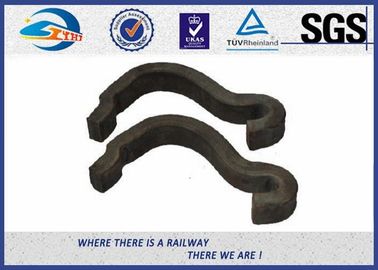

Large Image :  50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail

Product Details:

Place of Origin: CHINA
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: 50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60

Payment & Shipping Terms:

Minimum Order Quantity: 2,000 Tons/Month
Price: Negotiable
Packaging Details: 25kg in double-layer woven bag with fumigation-free wooden pallet
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500,000 pcs/month
Contact Now
Detailed Product Description
Product Name: Rail Anchor Standard: ASTM, DIN, BS, JIS, AS, NF, ISO, GB
Grade: 4.6.4.8.5.6.8.8.10.9. Material: 60Si2MnA, 45#, QT500-7

50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail







Main Types Of Rail Anchor:





Brand ZHONGYUE
Name rail anchor
Type used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail
Or the type by customers’ drawings
Material 60Si2MnA 45# QT500-7
Chemical composition(%) C:0.56-0.64, C:0.42-0.50, C:3.60-3.80,
Mn:0.60-0.90, Mn:0.50-0.80, Mn:≤0.6,
Si:1.60-2.00, Si:0.17-0.37, Si:2.50-2.90,
Cr:≤0.35, Cr:≤0.25,
P:≤0.03, P:≤0.035, P:≤0.08,
S:≤0.03 S:≤0.035 S:≤0.025
Surface plain (oiled),color painting
Standard refers ASTM, DIN, BS, JIS, AS, NF, ISO, GB



50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail



Rail anchor is manufactured in one-piece construction for spring steel or equal, heat-treated and designed to eliminate creepage of track. The rail anchors provide a large bearing surface against both rail base and tie, avoiding undo cutting and wear, thus prolonging the life of wooden ties. The rail anchors are used in 50Kg, 85Kg, 90/91LB, 115RE /136RE, UIC54 and UIC60 rail, and so on.



Technical Specifications of the Rail Anchor



Rail anchor is manufactured in one-piece construction for spring steel or equal, heat-treated and designed to eliminate creepage of track. The rail anchors provide a large bearing surface against both rail base and tie, avoiding undo cutting and wear, thus prolonging the life of wooden ties. The rail anchors are used in 50Kg, 85Kg, 90/91LB, 115RE /136RE, UIC54 and UIC60 rail, and so on.


Type Material Weight(g/pc)
50Kg 60Si2MnA 800
70LB 60Si2MnA 800
85LB 60Si2MnA 800
90/91LB 60Si2MnA 800



Zhongyue rail anchors is made of a special T-shaped spring steel, forged and heat treated for uniform strength and lasting service. SUYU rail anchors are a "drive-on" design that offers the following benefits:

  • Provide full rail base contact
  • Distribute creeping loads evenly
  • Eliminate sleeper chewing and climbing
  • Deliver largest sleeper bearing area

Zhongyue rail anchors are available for almost any rail size in two types: for standard applications and heavy duty and challenging installations.

1-Features

Continuous Refinement
Constant appraisal of rail anchor manufacturing processes assures the SUYU Rail Anchor will remain the dominant anchor in track


2-Overdrive Stop
Assures proper application every time, by either manual or machine application

3-Platform

Provides full rail base contact .eliminate flex in frozen ballast rail “pumping” conditions


4-Tie Bearing Area
A greater contact area than any other design reduces wood fiber crushing prolonging sleeper life


5-Jaw Grip
The vice-like action on rail base resists rail movement on average more than any other drive-on anchor. Provides superior holding power!


6-High Quality
With premium quality steel anchor integrity is maintained for long lasting service

Application



50Kg 85Kg 9091LB 115RE 136RE UIC54 UIC60 Rail Anchor For Fastening Rail
