Home ProductsRailroad Track Spikes

Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard

China Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard supplier
Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard supplier Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard supplier Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard supplier Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard supplier Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard supplier

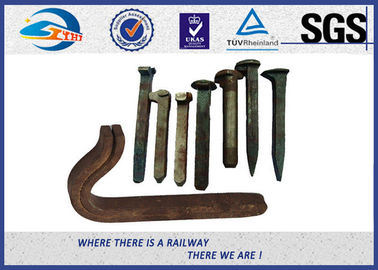

Large Image :  Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: depends on your material / grade / surface / quantity
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: about 30 work days after getting payment
Payment Terms: L/C, T/T
Supply Ability: 600,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard Application: Railway, Mining, High Speed Way
Grade: 4.6, 8.8, 5.6, Material: Q235 / 35#
Surface: Zinc, HDG Etc Standard: ISO898-1, UIC864-1, And NF F500-50
Warranty: Two Years

ZhongYue carbon steel rail dog spikes iron fence spikes DIN standard







Introduce:

Railroad screws spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes. Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers. Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and SUYU can help with product specification and selection





Description:

Grade 4.6 5 .6 8.8
Material Q235 35# 45#
Mechanical Tensile strength:  ≥ 400Mpa Tensile strength: ≥ 500Mpa

Tensile strength:

≥ 800Mpa

Yield strength: ≥ 240Mpa Yield strength: ≥ 300Mpa Yield strength: ≥ 640Mpa
Elongation: ≥ 22% Elongation: ≥ 20% Elongation: ≥ 12%
Cold bending: 90 degree
without crack
Surface plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50







Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.





Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert



Carbon Steel Rail Dog Spikes Iron Fence Spikes DIN StandardCarbon Steel Rail Dog Spikes Iron Fence Spikes DIN Standard
