Low Carbon Steel Railroad Track Spikes / Railway Dog Spikes With DHG Treatment

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Lock Spike
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25kg in double-layer woven bag with fumigation-free wooden pallet
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000 pcs/month
Product Name: Sleeper Lock Spike Standard: AS1085.8 AREMA
Grade: 4.6, 5.6, 8.8, 10.9, 12.9
High Light:

rail road spikes

,

boat spikes

Railway Pin Lock Spike for Rail Track







Material

Brand Zhongyue
Name

railway pin lock spike

Size 16x16xL 16x16xL 5/8”x5/8xL 3/8”x3/8xL 16x16x170 16x16x150 9/16"xL square square 16mm
            5/8"x5/8"x5" 5/8"xL 10mm 19mm
                16mm Dia.22mm
Grade 4.6 4.6 A370 ASTM A65 Gr1,Gr2 4.6 4.6 ASTM A65 Gr1,Gr2 4.6 4.6
Material Q235 low carbon steel Q235 Q235 low carbon steel low carbon steel low carbon steel SS41 low carbon steel
Surface plain (oiled)
Standard refers GB/T 1346 GOST5812 AREMA AREMA Ss-EN10025 BS70R, BS60R AREA



Process



  1. Raw material
  2. Cutting
  3. Head forming
  4. Heat treatment
  5. Surface treatment
  6. Final inspection
  7. Packing
  8. Shippment.

Surface Treatment

  1. galavazing
  2. DHG

Other Surface treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black

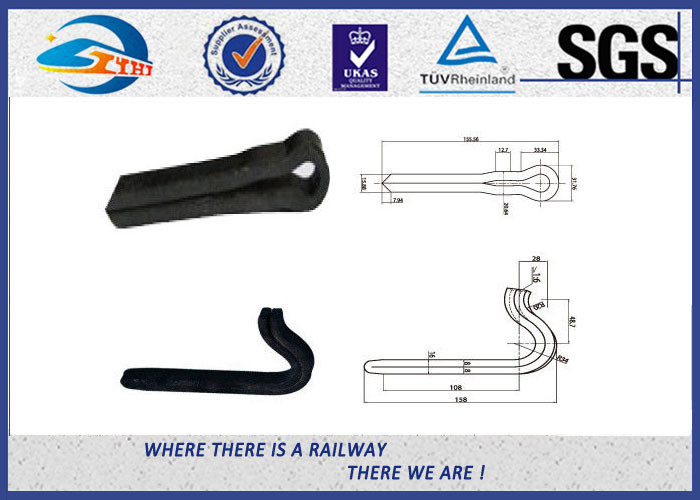

Low Carbon Steel Railroad Track Spikes / Railway Dog Spikes With DHG Treatment 0



1. We produce the rail sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available.
Diameter: 3/4", 7/8", 15/16"
Length: 5-1/2", 6", 7", 8", 10"
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG

2. Rail sleeper screw spikes with big disk are mostly used in South America and Africa
A taper of 1mm in the core and thread diameters towards to the point of the screw over the portion shown parallel is allowed, provided the tolerance on the diameter at the upper end is not exceeded. The material for the rail sleeper screw is complying with British standard N 15-1961.
Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm
Grade: 4.6, 5.6
Material: Q235, 35#

3. Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS



Type

  Dimension(mm) Weight (Kg)
V20-135 M20×135 0.438
V23-115 M23×115 0.48
V23-135 M23×135 0.55
V23-155 M23×155 0.62
V23-215 M23×215 0.78
V26-115 M26×115 0.55




4. Screw spike for wooden sleeper (high tension screw spike)
Size: 15/16×6-1/2
Surface Treatment: Plain (waxed), Black painting
MOQ: 5000PCS
Packing: 38PCS in 50LB plastic keg



Tensile Strength

  Yield Strength Elongation Reduction of Area Hardness
120,000psi(min) 92,000psi(min) 14%(min) 35%(min) HRC22-HRC32

Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the spike's diameter without crack on the outside of the bent portion.
Material: 45#, heat treatment

5. Coach screw is used for the mining industry in South Africa
Diameter: 18mm
Length: 65mm and 75mm
Material: Q195 and Q235
Surface Treatment: Zinc
Grade: 4.6


6. DHS35 rail sleeper screw spike, supports the use of the SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG



Application

Low Carbon Steel Railroad Track Spikes / Railway Dog Spikes With DHG Treatment 1



Production Process



Low Carbon Steel Railroad Track Spikes / Railway Dog Spikes With DHG Treatment 2
