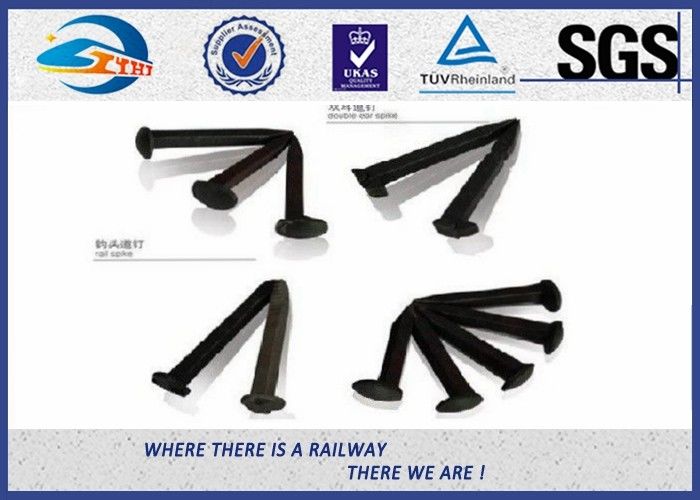

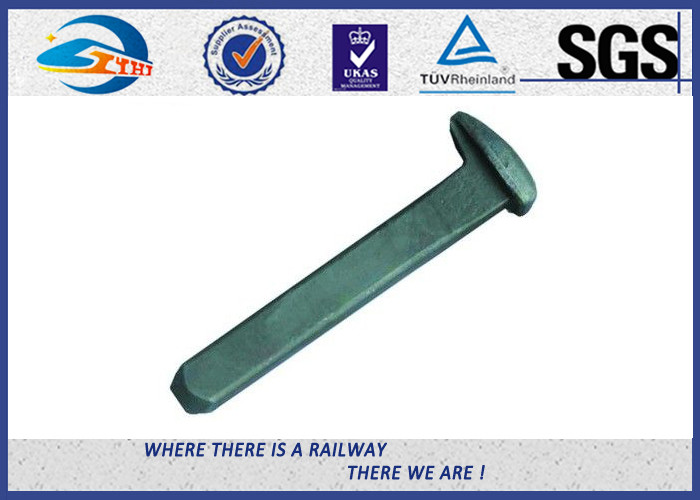

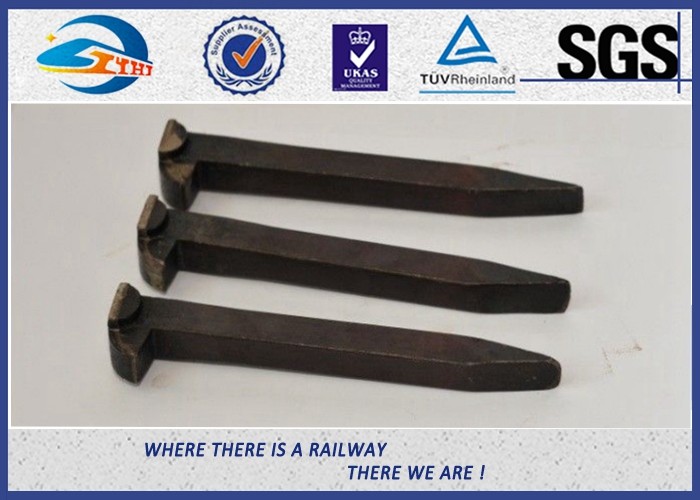

Arbon Steel AREM Q235 Solar Ground Railroad Track Spikes NF F500-50

China Arbon Steel AREM Q235  Solar Ground Railroad Track Spikes NF F500-50 supplier
Arbon Steel AREM Q235  Solar Ground Railroad Track Spikes NF F500-50 supplier Arbon Steel AREM Q235  Solar Ground Railroad Track Spikes NF F500-50 supplier Arbon Steel AREM Q235  Solar Ground Railroad Track Spikes NF F500-50 supplier Arbon Steel AREM Q235  Solar Ground Railroad Track Spikes NF F500-50 supplier

Large Image :  Arbon Steel AREM Q235 Solar Ground Railroad Track Spikes NF F500-50

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 1.0 MT
Price: negotiation
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: 15-30 work days after getting payment
Payment Terms: T/T or L/C
Supply Ability: 600,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Railway Solar Ground Screw Spikes Dog Spikes Carbon Steel AREM Q235 Application: Railroad
Grade: 4.6, 4.8, 5.6 Material: Q235 / 35#
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Standard: ISO898-1, UIC864-1, And NF F500-50
Warranty: Two Years

ZhongYue Railway Solar Ground Screw Spikes Dog Spikes Carbon Steel AREM Q235





Introduce:

Rail track spike is mainly used for rail and wooden sleeper, is used for connecting the steel rail and sleeper or pad and a fastener sleeper.





Technical Parameters

Brand

ZY

Name

railway track spike

Size

16x16xL

16x16xL

5/8”x5/

8”xL

3/8”x3/

8”xL

16x16

x170

16x16x150

9/16"xL

square

square

16mm

5/8"x5/8"

x5"

5/8"xL

10mm

19mm





16mm

Dia.

22mm

Grade

4.6

4.6

A370

ASTM A65

 Gr1,Gr2

4.6

4.6

ASTM A65

 Gr1,Gr2

4.6

4.6

Material

Q235

low

carbon

steel

Q235

Q235

low

carbon

steel

low

carbon

steel

low carbon

 steel

SS41

low

carbon

steel

Surface

plain (oiled)

Standard

refers

GB/T

1346

GOS

T5812

AREMA

AREMA

Ss-EN10025

BS70R,

 BS60R

AREA

JIS E1108

AS 1085.8







Note (4.8 as a sample)

the first 4: tensile strength of material Q235 is 400MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material Q235 is 400MPa x 0.8 =320 MPa.

MOQ: 1.0MT per model
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement







Process

  1. Raw material
  2. Cutting
  3. Head forming
  4. Heat treatment
  5. Surface treatment
  6. Final inspection
  7. Packing
  8. Shippment.







Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine







 Arbon Steel AREM Q235  Solar Ground Railroad Track Spikes NF F500-50Arbon Steel AREM Q235  Solar Ground Railroad Track Spikes NF F500-50
